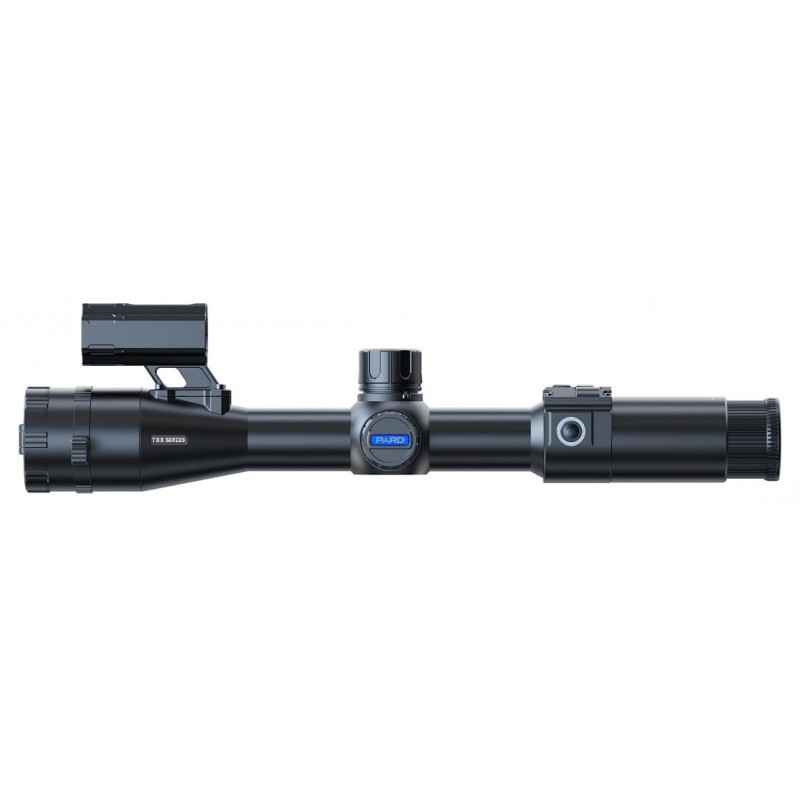

PARD TS31 35 mm LRF Thermal Imaging Scope

Long Eye-relief for Ensured Viewing Comfort

Lens options each with 100mm of eye relief, a wide field of view, there is a rubber eyepiece to provide concealed observation at night; Keeping the user's habit of using traditional daytime optic.

• Clear field of view
• Longer, more enjoyable viewing

800*800 IPS Ultra-clear Display

The thermal image can be displayed on the display with the picture-in-picture (PIP) function providing a clear heat signature, greatly improve the comfort of eye observation.

• Higher image quality
• Reduced visual fatigue

Circular Design In The Scope A wider field of view

Circular display design allows for seeing a whole circle of image. With a wide field of view (FOV), centering setting of the crosshair after zeroing, helping you with a great sense of where the target is in relation to the environment.

High Sensitivity 12µm LWIR Sensor

Featuring a 384x288 pixel resolution and 12μm vanadium oxide (vox) sensor allows users to enjoy rich contrast and bold resolution when acquiring targets.

• Thermal images with high contrast
• Extreme sensitivity
• Enhanced identification of targets

Fast Detection 1000m LRF

Targets can be detected up to 1000m away. The newly developed compact ranging module is precise and has fast detection speed. When paired with integrated ballistics, the LRF gives you the range information you need at night to hunt smarter.

• Precise target ranging

Accurate Ballistic Calculator

The integrated ballistic calculator can calculate bullet trajectory parameters such as velocity, bullet weight and zero range. Improving your accuracy by calculating precise aiming points for your next shot placement.

• Quickly indicate the precise aiming point
• Accurately place your shot

Infrared Image Enhancement Algorithm (IREA)

The TS3x uses proprietary software and next-level image enhancement algorithm to deliver high infrared spectrum sensitivity values to improve image visibility. The IREA improves the overall image by reducing image distortion, and enrich the amount of detail even of distant targets.

• Improved recognition of targets
• Reduced image distortion
• No lag images

Model TS31-LRF

Sensor

Type Uncooled VOx(vanadium oxide)

Resolution(px) 384*288

Pixel size(µm) 12*12

NETD(mK) ≤35mK（0.035℃）

Frame rate(Hz) 50

Human detection distance(m) 800/1100/1400/1700

Vehicle detection distance(m) 1800/2200/2600/3000

Optics

Objective Lens(mm) 35

Optical Magnification(x) 3

Digital Zoom(x) 2/4/6

Eye Relief(mm) 100

Diopter Adjustment(D) -3D~+5D

Display

Type IPS LCD

Resolution(px) 800*800

Reticle Style 6

Reticle Color 4(Red/White/Yellow/Green)

Scene Mode City/Rain/Forest

Image mode WhiteHot/BlackHot/RedHot/Fusion1/Fusion2/IronRed1/IronRed2

Photo / Video

Photo Resolution(px) 1536*1536

Photo Format .JPG

Video Resolution(px) 768*768

Video Format .mp4

Storage(GB) TF card(128 )(Max)

Image Engine Pard IREA

Main function

LRF detection range(m) 1000

Ballistic Calculator Yes

PIP Yes

Hot Track NO

Gyroscope Yes

Self-motivated recording Yes

Loop Recording Yes

E-compass Yes

Shutter Mechanical Shutter

Microphone Yes

Firmware Upgrade Yes

Interfaces

USB Tpye-C Yes

HDMI Output Yes

Connections

WiFi Yes

Supported Apps PardVision

Power Supply

Battery Type Lithium Ion 18650*1

Output Voltage(V) 3.7

Operating Time(h) ≤6

External power supply(V) Type-C

Environmental characteristic

Degree of protection IP67

Operating Temp(°C) -20℃~50℃

Recoil Resistance(J) 6000

Material

Housing Aluminium Alloy

Objective Lens All-glass multi-coated lens

Measurement

Product Dimension(L x W x H, mm) 350*88*95(W/O Long Eyepiece), 410*88*95(W/ Long Eyepiece)

N.W/pcs(with/without battery, g) 680(W/O Battery);725(W/ Battery)
