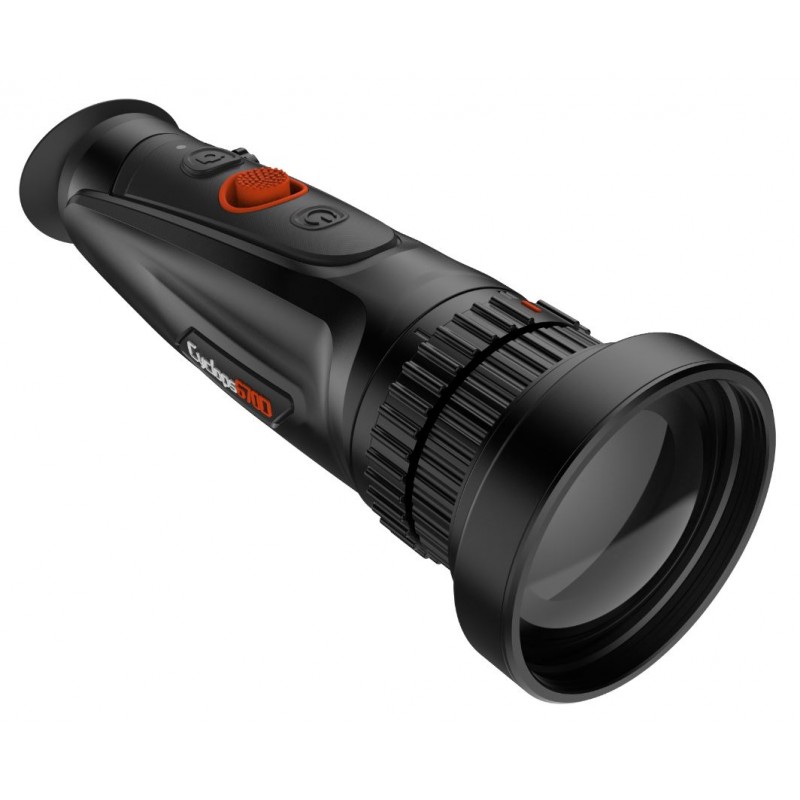

ThermTec Cyclops 670D thermovision monocular

Dual-Field of View with 2x Optical Zoom

A wide FOV with a focal length of 20/25mm can be used for detection; A narrow FOV with a focal length of 40/50mm can be used for identification.

High-Precision Zoom

1.0-6.0X HD zooming ensures excellent sharpness and the highest resolution of details from minimum to maximum magnification.

12 Hours of Work on a Single Charge

Built-in battery with 12H super long capacity, which ensures a pleasant and dedicated outdoor experience without worry.

Joystick Control

The well-designed joystick performs an easy operation on menu operations by toggling the button in any direction.

IP67 Protection Rate

Provided with IP67-rated weatherproof performance, it is protected from heavy rainfall, snow, smoke, smog, or dust.

Lightweight and Compact Size

The compact dimension makes it a lightweight and handy companion wherever you go.

Two Image Modes

Designed with both WDR mode and target mode, it captures details clearly under different scenarios as needed. WDR Mode is suitable for high-contrast lighting conditions, while Target Mode helps you to focus more on your targets.

Built-in AI Rangefinder

Based on deep learning algorithm, the object distance can be automatically measured.

Electronic Image Stabilization

It provides clear and precise images even in scenes with lots of motion.

Wide Options of Color Palettes

6 thermal image pallets with comfortable visual experience, to meet with a variety of environments and weather conditions.

Photo/Video Recorder

Integrated pictures and video recording makes sharing the thermal action quick and easy, with the functions of playback and APP sharing.

GPS Function

Enable users to know their coordinates in real time, which makes field activities safer.

Specifications

Resolution 640x512

Pixel pitch 12µm

NETD 25mk@300k

Spectral range 8-14µm

Frame rate 50HZ

Objective lens 35mm/F0.9  70mm/F1.0Dual FOV

Field of view 12.5°x10.0 / 6.3°x5.0°

Magnification 2.0X-4.0X

Digital zoom 1-6X continuous zoom

Eye relief 40mm

Exit pupil 6mm

Diopter ±5D

Display type AMOLED

Resolution 1024x768

Display size 0.39 inch

Color palette 6

Image model WDR/Object/Target outline mode

Photo/video playback Yes

Language Multiple-languages

Reticle 7, adjustment coordinates

Built-in memory 32GB

PIP Yes

AI/MIL distance measurement Yes

Heat track Yes

GPS Yes

Real-time notification Yes

OSD recording Yes

Internal battery Internal high capacity lithium ion (18650x2)

Battery life Continuous working time ≥12h

Type-C Supports battery charging, data transfer and analog video

output

WI-FI Two-way Wi-Fi connection; App remote control

Battery type Internal high capacity lithium ion (18650 x 2)

Battery life Continuous working time >12h

Operating temperature -20℃—+50℃

IP rating IP67

Weight, g 780土10

Size, mm 228(L)x83(W)x 83(H)

External cable Analog video cable; USB data cable

Other accessories Wrist strap; plush bag; user manual
