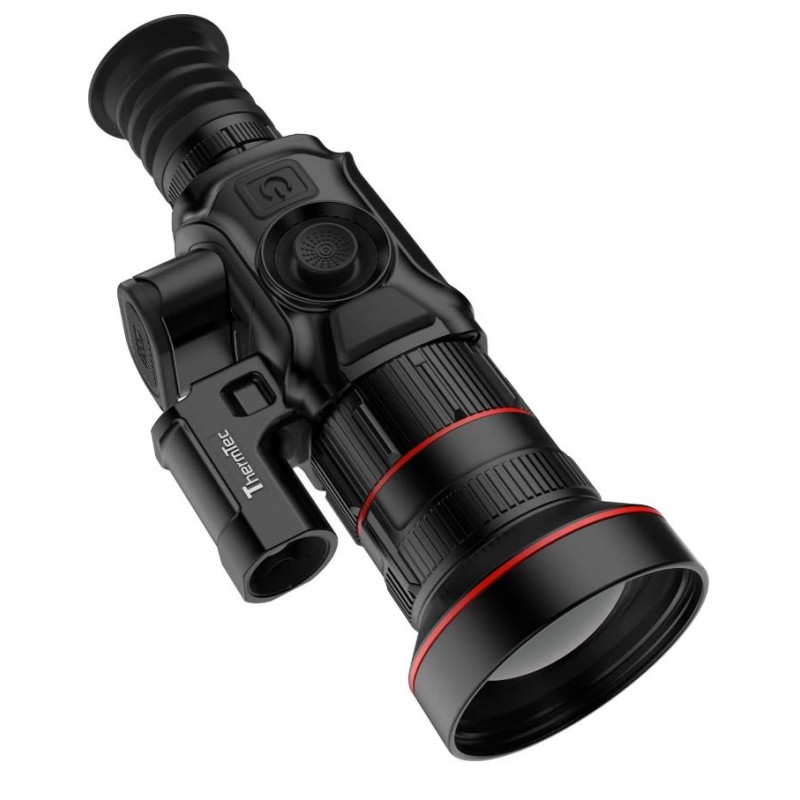

ThermTec Vidar 660L thermovision sights

A wide FOV with a focal length of 20mm can be used for detection; A narrow FOV with a focal length of 60mm can be used for identification.

5203.17 $
Tax included

4230.22 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Dual Field of View

A wide FOV with a focal length of 20mm can be used for detection; A narrow FOV with a focal length of 60mm can be used for identification.

Compact & Light

Lightweight and extremely compact, the Vidar is the perfect companion on any hunting or observational trip.

Laser Rangefinder + Ballistic Calculator

The Laser rangefinder with ballistic calculator realize a long range targets detection and an accurate shooting. L-models include a 1,200m laser rangefinder with ballistic calculator for perfect shot placement at any range.

Non-Shutter Correction Technology

Invisible, background calibration means the screen will never freeze and there is no noisy shutter to alert your quarry.

Automatic Zeroing

The unique automatic zeroing function is the fastest, simplest zeroing system there is; just take a shot and let the Vidar set zero for you.

  • Real-time APP Notification
  • The “Smart Thermal” APP would instantly pop up a notification while
  • detecting the target to avoid any distraction.

High Thermal Sensitivity

The Vidar’s NETD ≤25mK sensor captures the smallest detail even the target and background are almost at the same temperature.

Automatic Object Detection

The Vidar can detect and identify the target while an object entering its field of view to avoid any miss.

High-Precision Zoom

Smooth & rapid 1.0-5.0X HD zooming ensures excellent sharpness and the highest resolution of details from minimum to maximum magnification.

Two Way Wi-Fi Connection

Support both Wi-Fi and hotspot connections; Real-time image transmission

64G storage

A 64GB of memory card enables a large storing of photos and videos.

Easy Battery Installation

The battery's anode and cathode can be installed interchangeably, helping users to complete the battery replacement more quickly at night.

IP67 Protection Rate

Provided with IP67-rated weatherproof performance, it is protected from heavy rainfall, snow, smoke, smog, or dust.



Specifications

Resolution, pixel 640x512/12

Spectral 8-14µm

NETD ≤25mk

Frame rate 50HZ

Objective lens 20/60mm, F1.0

Field of view 21.7°x17.4°/ 7.3°x5.9°

Magnification 1.1X/3.2X

Digital zoom 1 - 5X continuous zoom

Eye relief 45mm

Exit pupil 6mm

Diopter -5 ~ +5

Click range, m @100 m (H/V) 3,6m/3,6m

Reticle 7

Rectile color Black and white

Display type AMOLED

Resolution, pixel 1024x768

Display size 0.39 inch

Color palette 6

Max. recoil power on rifled weapon 6000J

Mounting brackets on weapon Standard Picatinny Rail

Shooting record Support

RAV Yes

Auto zeroing Yes

Manual zeroing Yes

Zeroing profiles 5

Picture-in-picture Yes

Image calibration Via lens cover

Photo/video playback Yes

Inbuilt memory 64G

Magnetic interface Data transfer

Wi-Fi Yes

Replaceable battery 18650x2

Battery reverse connection Yes

Battery life 14h

Operating temperature -20℃—+50℃

IP rating IP67

Weight, g 920

Size, mm 220x100x87

Magnetic cable Magnetic interface data cable

Other Accessory Standard Picatinny Rail,eyeshade and etc.
