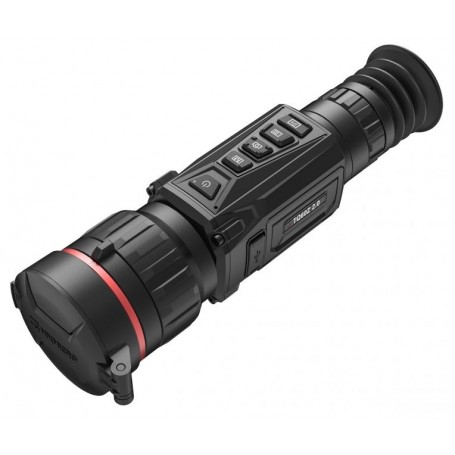

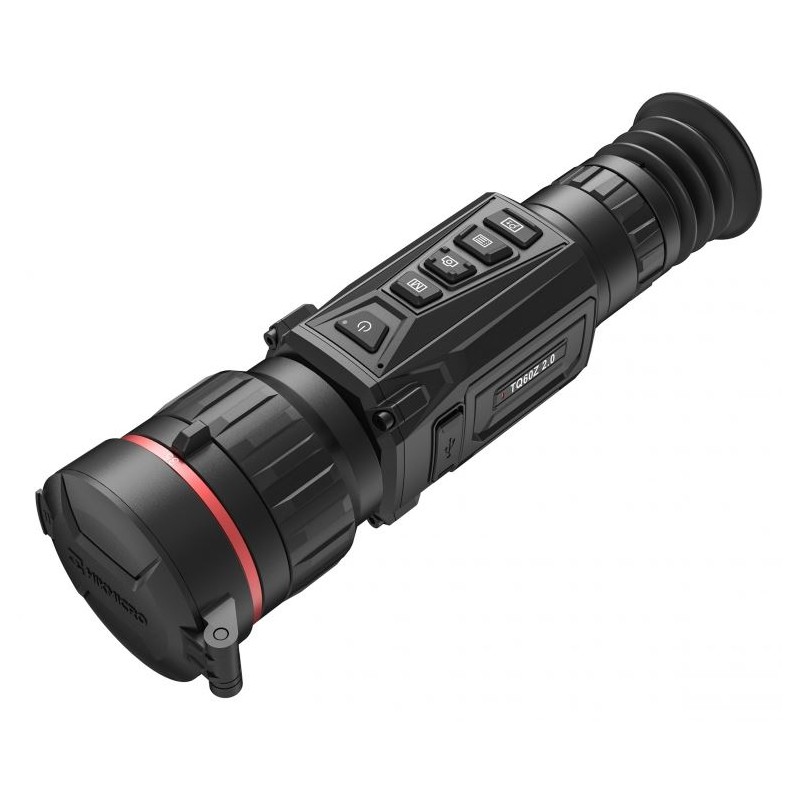

Hikvision Hikmicro Thunder Zoom TQ60Z 2.0 Thermal Imaging Scope

The Hikvision Hikmicro Thunder Zoom TQ60Z 2.0 thermal imaging scope is a top-tier choice for long-range hunting, featuring a powerful 640 thermal detector, a 35mm/F0.9 lens, and a 60mm/F1.1 lens. With a field of view of 22 meters and a magnification starting at 1.8x, this scope can reach distances of up to 3000 meters, making it a reliable companion for navigating through forests or open fields.

Key Features

• Vivid and Detailed Imaging: The high sensitivity (NETD<20mK) detector and robust thermal camera provide sharp, detailed, and multi-dimensional images, even with subtle temperature differences.
• Enhanced Identification: Large apertures ensure superior heat radiation capture, enabling easy target distinction.
• Optical Zoom: Advanced technology provides dual Field of View (FOV) options while maintaining image quality.
• Zeroing Options: Features One-Time Zeroing for automatic adjustment and Separate Zeroing for precise lens adjustments.
• Durable Design: Made from magnesium alloy, it operates reliably in temperatures from -30℃ to 55℃.
• High Shock Resistance: Withstands up to 1000g/0.4ms, suitable for various firearm calibers.
• Extended Operation Time: Two battery packs provide over 21 hours of use, with convenient direct charging.
• Quick Adjustments: Quick Menu for swift brightness and contrast adjustments, plus Picture-in-Picture (PIP) function.
• Customizable Reticle Profiles: Choose from 5 reticle groups with 4 colors and 10 types for added convenience.
• Exceptional Detection Range: Detects objects up to 3000 meters, even in total darkness.
• Seamless Sharing: Use the Hikmicro Sight APP for preview, remote control, and sharing.

Included Accessories

• Hikvision Hikmicro Thunder Zoom TQ60Z 2.0 thermal imaging scope (x1)
• Battery Charger (x1)
• Type-C Cable (x1)
• Lint-free Cloth (x1)
• Quick Start Guide (x1)
• Batteries (x2)
• Bag (x1)

Technical Specifications

Thermal Module

• Image Sensor: Uncooled Focal Plane Arrays
• Max. Resolution: 640x512
• Frame Rate: 50Hz
• Pixel Interval: 12μm
• NETD: Less than 20mK (25 °C, F#=1.0)
• Lens (Focal Length): 35mm, F0.9 AND 60mm, F1.1
• Detection Range: 1800m / 3000m
• Focus Mode: Optical Zoom, Focus Ring
• Field of View (H × V), Degrees / m @100m:
• 35mm: 12.5° ×10.0°/21.9m × 17.6m
• 60mm: 7.3° ×5.9°/12.8m × 10.2m
• Min. Focusing Distance:
• 35mm: 7m
• 60mm: 9m
• Magnification: 1.8×-14.6x / 3.1x-25.0x (8x)

Image Display

• Display: 1024x768, 0.39 inch, OLED
• Brightness Adjustment: Yes
• Palettes: Black hot, white hot, red hot, fusion
• FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
• Exit Pupil: 6mm
• Eye Relief: 45mm
• Diopter (Range): -5D to 5D
• Tone Adjustment: Cold, Warm

General

• Protection Level: IP67
• Weight: 843g without Battery
• Dimensions: 254.4mm x 68.5mm x 80.6mm
• Working Temperature: -30 °C to +55 °C (-22 °F to 131°F)

System

• Record Video: On-board video recording
• Capture Snapshot: Yes
• Hotspot: Yes
• Standby Mode: Yes
• Storage: Built-in EMMC (16 GB)
• PIP: Yes
• DPC: Yes
• Hot Track: Yes
• Distance Measurement: Yes
• Audio Recording: Yes
• Recoil-activation Recording: Yes
• Max. Recoil: 1000g/0.4ms
• Zeroing Profiles: 5

Power Supply

• Battery Type: Replaceable and Rechargeable Li-ion Battery
• Battery Operating Time: ≥8.5h (25 °C, with hotspot off)
• Type-C Power Supply: 5V DC, 2 A, Supports External Power Supply
