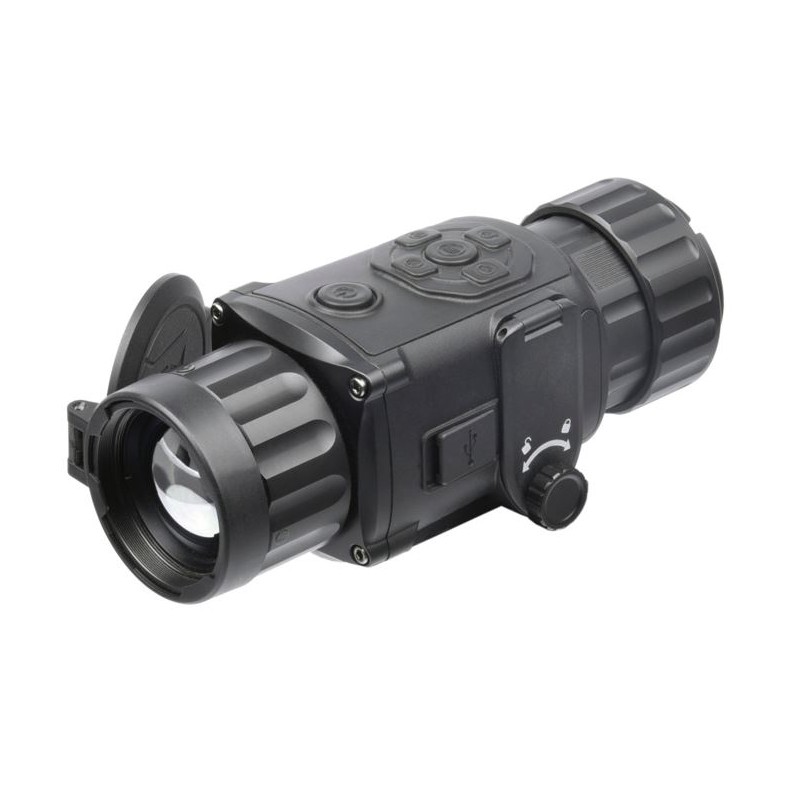

AGM Rattler TC35-640 - Thermal Clip-On System
The AGM Rattler TC35-640 stands out as a compact thermal imaging clip-on system, facilitating seamless conversion of daytime optics into a thermal imaging device without requiring specialized tools. Equipped with a high-sensitivity thermal detector and a 1024×768 OLED monitor, it ensures clear imagery even in challenging conditions such as darkness, fog, rain, or snow. PART NO.: 3142556005RC61
2335 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The AGM Rattler TC35-640 stands out as a compact thermal imaging clip-on system, facilitating seamless conversion of daytime optics into a thermal imaging device without requiring specialized tools. Equipped with a high-sensitivity thermal detector and a 1024×768 OLED monitor, it ensures clear imagery even in challenging conditions such as darkness, fog, rain, or snow. Designed for various applications including patrolling, hunting, and overwatch, it effortlessly attaches in front of rifle scopes with magnifications up to 8x for medium-range use. With two CR123 batteries, it boasts up to 4.5 hours of continuous operation. Moreover, it features 16 GB storage for onboard video recording and image capture, along with an onboard WiFi module for live video streaming and recording via a mobile application.
- Quick conversion to thermal imaging scope
- 12μm high sensitivity detector
- 640×512 thermal resolution
- 1024×768 resolution 0.39-inch OLED display
- Video recording and image capture capabilities
- Built-in 16 GB storage
- Supports distance measurement
- Adjustable color palettes
- WiFi data transmission
- Waterproof and shockproof
- Up to 4.5 hours continuous working time
- External power supply capability
- 3-year warranty
Package Includes:
USB Cable, Lens Tissue, User Manual, Carrying Case, Two Lithium CR123A Batteries, Mount (Varies by region)
Specifications:
Detector: 12μm, Uncooled, 50Hz
Resolution: 640 x 512
Lens System: 35 mm; F/1.0
Magnification: 1x
Field Of View: 12.5° × 10.0°
Digital Zoom: 2x, 4x, 8x
Detection Range (6’ object): 1,750 m/yd
Diopter Adjustment: -5 to +3 dpt
Display: 1024x768 resolution 0.39-inch OLED
Hotspot: Yes
Distance Measurement: Yes
Scene Mode: Jungle, Recognition
Standby Mode: Yes
Video Recording: Yes
Picture Snapshot: Yes
DPC: Yes
PIP: Yes
Uniformity Correction: Auto, Manual, External Correction
Storage: Built-in 16 GB EMMC
Battery Type: 2x Replaceable Applicable type: CR123A, RCR123A
Battery Life (Operating): Up to 4.5 hr
External Power Supply: 5V USB
Operating Temperature Range: -20°C to 55°C (-4°F to 131°F)
Degree of Protection: IP67
Shock and Vibration: 750 g/ms
Weight: 0.42 kg (0.93 lb)
Overall Dimensions: 153.2 × 62 × 59 mm (6.0 × 2.4 × 2.3 in)
Data sheet
