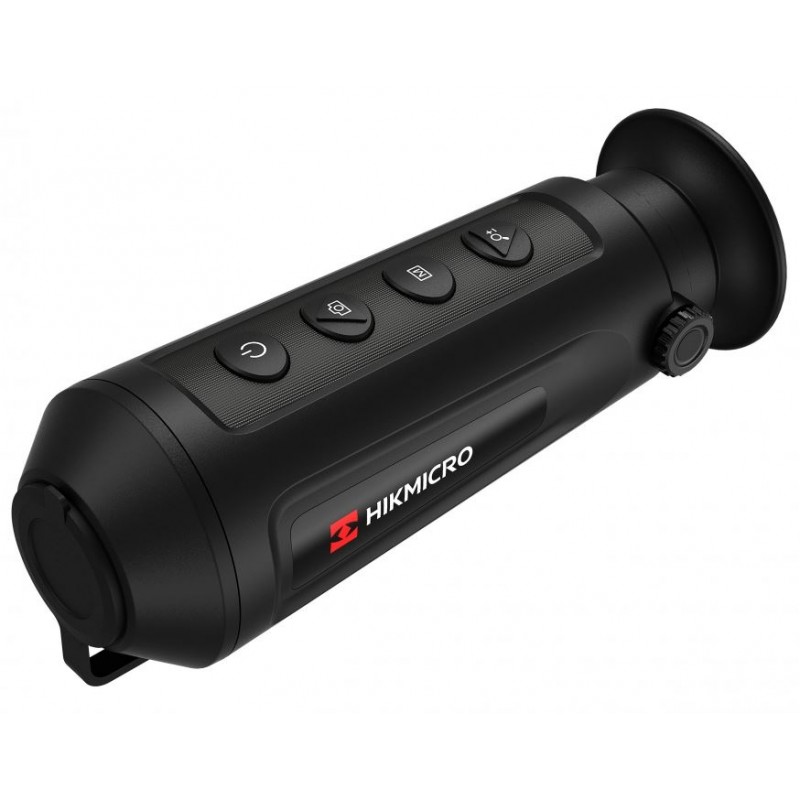

Hikvision Hikmicro Lynx LE10S Thermal monocular

Featuring a basic magnification of 1.5x, a 256 detector, and a 9.7mm focal length, this device provides a wide field of view spanning 32m, making it ideal for capturing detailed images in wooded areas.

Enhanced Observation Experience with Large OLED Display

Boasting a high-resolution 0.32” 800 x 600 OLED screen, this device offers lower power consumption, a wider viewing angle, and richer color reproduction.

Smooth and Detailed Imaging with High Frame Rate

The LYNX S series allows filming at 50Hz, resulting in images with higher dynamic range and reduced eye strain during prolonged outdoor observation.

Intuitive User Interface for Enhanced Operation

Featuring a brand new UI design, this device ensures a seamless operation experience, allowing quick access to frequently used functions, and maximizing opportunities for spotting your target.

Compact and Portable Design

Weighing only 260g (0.57 lb), its lightweight design makes it easy to carry around for on-the-go use.

Versatile Recording Options

With an onboard 8GB memory, users can store snapshots and video clips which can be easily downloaded when connected to a PC via the USB port.

Mobile App Integration

The integrated hotspot module enables the Sight app to function as a second display, providing users with additional features such as digital zoom and video recording on their smartphones.

Included Accessories:

• Hikvision Hikmicro Lynx LE10S Thermal monocular (x1)
• Quick Start Guide (x1)
• Non-dust Cloth (x1)
• USB Cable (x1)
• Protective Bag (x1)
• Wrist Strap (x1)

Specifications:

Product Model: LE10S

Thermal Module:

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 256 × 192

Frame Rate: 50 Hz

Pixel Interval: 12 μm

Response Waveband: 8 μm to 14 μm

NETD: Less than 35 mK (@ 25 °C),F# = 1.0

Lens (Focal Length): 9.7mm, f1.0

Detection Range: 500m

Focus Mode: Focus Free

Field of View(H × V), Degrees / m @100m: 18.0° × 13.6° / 31.7m × 23.8m

Min. Focusing Distance: 4m

Magnification: 1.5x-12.0x(8x)

Image Display:

Display: 800 × 600, 0.32 inch, OLED

Contrast Adjustment: Yes

Brightness Adjustment: Yes

Palettes: Black hot, white hot, red hot, fusion

FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Exit Pupil: 20mm

Eye Relief: 6mm

Diopter (Range): ﹣5D to+4D

Tone Adjustment: Cold, Warm

General:

Protection Level: IP67

Weight: 260 g (0.57 lb)

Dimension: 158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")

Working Temperature: - 20 °C to 55 °C (- 4 °F to 131 °F)

System:

Record Video: Yes

Capture Snapshot: Yes

Hotspot: Yes

Standby Mode: Yes

Storage: Built-in memory module (8 GB)

PIP: Yes

Hot Track: Yes

Distance Measurement: Yes

Audio Recording: Yes

Power Supply:

Battery Type: Rechargeable Lithium Battery

Battery Operating Time: 8 hours continuous running with hotspot function off (@ 25 °C); 6 hours continuous running with hotspot function on (@ 25 °C)

Type-C Power Supply: 5V DC, 2 A; Supports External Power Supply
