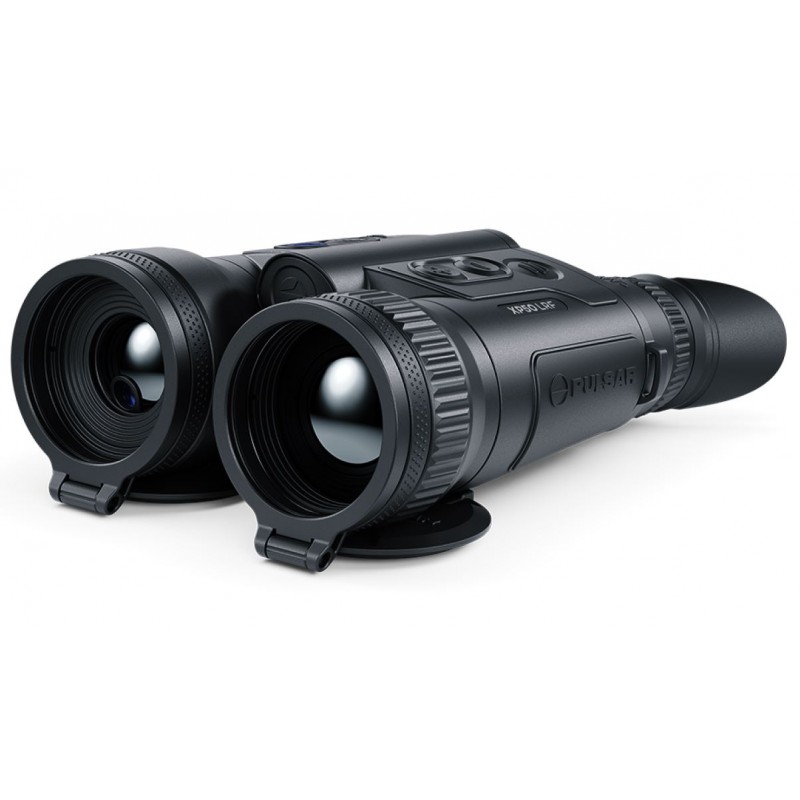

Pulsar Merger LRF XP50 Thermal Imaging Binoculars 77465

The Merger LRF thermal imaging binoculars embody a classic design reminiscent of daytime binoculars, yet they're crafted with a compact size. Despite their small form factor, these thermal imaging binoculars fit snugly in the hand while boasting captivating external aesthetics and exemplary ergonomics. Positioned within the comfort access zone, six function buttons facilitate effortless operation, activating essential digital device functions with a single touch.

Comfortable Viewing Experience:

The optical design of Merger LRF binoculars takes into full consideration the natural characteristics of human vision. Harnessing the innate ability of humans to process visual information through two channels simultaneously, these binoculars offer a comfortable viewing experience. Utilizing both eyes for observation not only reduces fatigue compared to monocular devices but also enhances detection of small or faint objects and improves performance in low-contrast scenarios. The adjustable interpupillary distance, ranging from 62 to 74 mm, accommodates individual user preferences.

Precise Laser Rangefinder:

Accurate assessment of target distance is paramount for making informed decisions. Equipped with a built-in laser rangefinder boasting a range of up to 1 kilometer, Merger LRF allows precise measurement in both single and continuous scanning modes with an impressive accuracy of ±1 meter, facilitating swift and error-free situational assessment.

High-Definition Thermal Imaging:

Featuring a high-sensitivity sensor with <25 mK NETD, Merger LRF captures minimal temperature differences even in conditions of low temperature contrast, rain, or fog. With a resolution of 640x480 pixels, these binoculars ensure reliable target identification, delivering high-quality visualization of important anatomical features and intricate details of the surrounding landscape.

Fast Aperture Lens:

The Merger LRF stands out with its fast aperture F50/1.0 Germanium lens, which, combined with a highly sensitive thermal sensor, maximizes detection efficiency. This configuration ensures superior image quality, presenting detailed, high-contrast imagery consistently, even in adverse weather conditions where temperature contrast is minimal.

Latest Image Processing Algorithms:

Equipped with advanced image processing algorithms, Merger LRF thermal imaging binoculars excel across various weather conditions and operational scenarios. Enhanced with Merger LRF eyepieces, these binoculars deliver clear, noise-free imaging with heightened object details and improved contrast, elevating the viewing experience to a new level.

User Mode:

Tailor the brightness and contrast settings to optimize image detail and informativeness for specific observation conditions. The User Mode function stores selected settings in the device's memory, ensuring optimal image quality for subsequent use without the need for additional adjustments.

Long Detection Range:

Merger LRF boasts exceptional detection capabilities, thanks to its powerful long-distance objective lens paired with a highly sensitive thermal imaging sensor. In complete darkness, these binoculars can detect a standard 1.8-meter-tall object up to 1800 meters away.

Variable Magnification:

With a variable magnification range of 2.5x to 20x and digital zoom of up to 8x, Merger LRF offers improved focus and enhanced object recognition at significant distances. The zoom can be adjusted gradually in 2x steps or continuously, allowing for customized field of view tailored to specific situations.

Robust Construction:

Crafted from high-quality reinforced magnesium alloy, Merger LRF is designed to withstand constant, rigorous use. The lightweight yet durable housing provides reliable protection against shocks, drops, moisture, heat, or cold, ensuring consistent device operation during prolonged observations.

Built-in Photo and Video Recorder:

Merger LRF features a built-in video recorder with ample internal memory to store hours of video footage and tens of thousands of photos. With a simple touch of a button, users can capture captivating scenes or record videos effortlessly. The footage can be easily transferred to a computer via a USB-C port, and users also benefit from 16 GB of cloud storage for storing captured content in the Pulsar cloud storage via the Stream Vision 2 mobile application.

Stream Vision 2, Wi-Fi Integration:

Integrated Wi-Fi connectivity allows seamless connection to Android and iOS smartphones via the Stream Vision 2 mobile application. This enables a multitude of functionalities, including wireless software updates, real-time image transmission to smartphone screens, sharing of photo and video content on social media or messengers, remote control of device functions, and access to the latest news from Pulsar. Additionally, registered users receive 16 GB of cloud storage for storing captured photos and videos.

Improved Wi-Fi Connectivity:

Merger LRF thermal imagers support both 2.4 GHz and 5 GHz Wi-Fi bands, enhancing connectivity options. The inclusion of the 5 GHz range offers superior bandwidth, faster data transfer rates, noise immunity, and improved connection stability, resulting in more productive and efficient operation of the thermal imager with smartphones.

High-Contrast HD AMOLED Displays:

Featuring high-contrast HD AMOLED displays, Merger LRF delivers crisp, richly contrasted, vividly colored views. The AMOLED technology ensures flawless, fluid, high-resolution imagery while conserving power.

Versatile Color Palettes:

Choose from eight color palettes to optimize the viewing experience for specific tasks and changing observation conditions. Whether detecting, recognizing, or identifying objects, each palette offers distinct advantages, ranging from optimal object detection to long-duration night observation.

IPX7 Waterproof Rating:

With an IPX7 waterproof rating, Merger LRF offers protection against heavy rainfall, snow, or other precipitation. Designed to withstand submersion in up to 1 meter of water for up to 30 minutes, these binoculars ensure uninterrupted operation even in challenging weather conditions.

Wide Operating Temperature Range:

Engineered to perform reliably across a wide range of temperatures, Merger LRF is suitable for diverse applications. From freezing cold environments reaching -25°C to warmer climates up to +50°C, these binoculars consistently deliver effective performance.

Equipment

• Rechargeable battery APS3
• Instruction manual
• USB cable
• USB/230V charger
• Material for cleaning optics
• Neck strap
• Lens cap
• Cover
• Warranty card with hologram
• APS battery docking station

Specifications:

Main Sensor:

Resolution: 640x480 @ 17 µm (NETD <25 mK)

Objective Lens:

F50/1.0

Magnification: 2.5 – 20x (8x zoom)

Field of View (HxV): 12.4x9.3 / 21.8x16.3 degrees @ 100m

Detection Range: 1800m

Sensor Type: Uncooled

Sensor Resolution: 640x480 pixels

Pixel Pitch: 17 µm

NETD: <25 mK

Frame Rate: 50 Hz

Optics:

Objective Lens: F50/1.0

Magnification: 2.5 – 20x

Field of View (HxV): 12.4x9.3 / 21.8x16.3 degrees @ 100m

Interpupillary Distance Adjustment: 62 - 74 mm

Eye Relief: 15 mm

Display:

Type: AMOLED HD

Resolution: 1024x768 pixels

Range Performance:

Detection Range: 1800m

Laser Rangefinder:

Safety Class: Class 1 (according to IEC 60825-1:2014)

Wavelength: 905 nm

Max. Measuring Range: 1000m

Measurement Accuracy: ± 1m

Video Recorder:

Video/Photo Resolution: 1024x768 pixels

Video/Photo Format: .mp4/.jpg

Built-in Memory: 16 GB

Wi-Fi:

Wireless Protocol: Wi-Fi

Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)

Frequency: 2.4 / 5 GHz

Environmental Characteristics:

Degree of Protection: IPX7 (Waterproof)

Operating Temperature Range: -25°C to +50°C

Connections and Compatibilities:

Mount Type: 1/4" Socket

Supported Application: Stream Vision 2

Power Supply:

Output Voltage: 3.7 V

Battery Type: Dual Li-Ion Power System: APS 3 Changeable Battery (3.2 A·h) and Built-in Battery Pack (4.0 A·h)

Capacity: 3200 mAh (external) + 4000 mAh (internal)

Operating Time on Battery Pack (at t=22°C): 9 hours

External Power Supply: 5V, 9V (USB Type-C Power Delivery)

Weight & Size:

Body Material: Magnesium Alloy

Dimensions: 196x143x76 mm

Weight: 0.95 kg (batteries included)

Trade Data:

SKU (Model #): 77465

Status: Production
