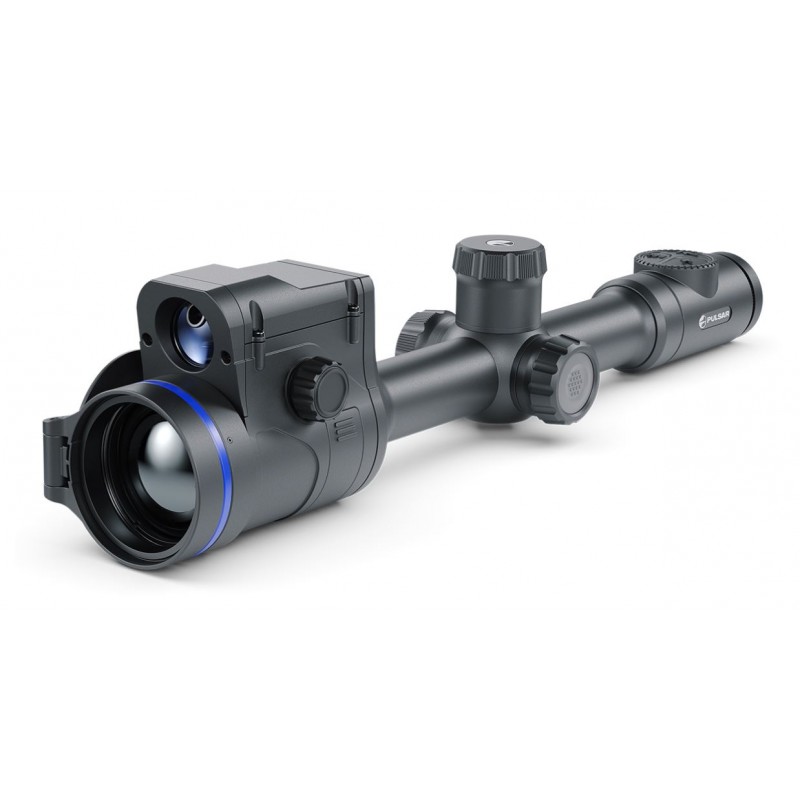

Pulsar Thermion 2 LRF XQ50 PRO Thermal Imaging Riflescope 76555

Experience sharp, richly contrasted thermal imaging with the Thermion 2 LRF, revealing enhanced details of animals, foliage, and terrain features such as branches, leaves, and grass.

Unprecedented Thermal Sensor Sensitivity

Equipped with a thermal imaging sensor featuring NETD <25mK, the Thermion 2 LRF ensures impeccable detail recognition even in challenging weather conditions, such as low thermal contrast during rainfall, fog, or cold mornings.

Ballistic Calculations Inside the Riflescope

Utilize ballistic calculations through the Thermion 2 LRF's integration with the Stream Vision Ballistics mobile app, accessible via a recent firmware update.

Fast Aperture Lens F50/1.0

The Thermion 2 LRF's fast lens (F50/1.0) in combination with a highly sensitive thermal sensor captures the lowest radiation levels with ultimate efficiency, delivering high-quality, detailed imagery even in adverse weather conditions like rain or fog.

User Mode

Tailor brightness and contrast settings to optimize image detail for specific observation conditions. The User Mode function saves these settings in the device's memory, ensuring optimal image quality for subsequent uses without the need for additional adjustments.

Long Detection Range Up to 2300 m

Benefit from exceptional detection capabilities provided by the powerful long-distance F50/1.0 objective lens and highly sensitive thermal imaging sensors, enabling detection of standard 1.8m tall objects at distances ranging from 1800 to 2300 m even in complete darkness.

Up to 10 Hours of Battery Life on a Single Charge

Equipped with two rechargeable batteries—one built-in with a 4.9 Ah capacity and another replaceable with a 2 Ah capacity—the Thermion 2 LRF offers up to 10 hours of battery life on a single charge, ensuring uninterrupted use during hunting sessions.

High-Precision Ambidextrous Lens Focusing

Achieve clear and sharp imagery at any range with the Thermion 2 LRF's objective lens featuring an internal focusing mechanism. Ergonomic focusing wheels on both sides enable easy focusing for left- or right-handed users.

Variable Magnification

Adjust the magnification of the Thermion 2 LRF riflescopes gradually by 2x steps or continuously to optimize the magnification and visible field of view for specific hunting situations.

High-Precision Aiming in "Picture-in-Picture" Mode

Utilize the "Picture-in-Picture" function to display a high-precision zeroing frame, allowing for precise aiming with visual control of the entire field of view simultaneously.

10 Individual Shooting Profiles / 100 Zeroing Distances

Save zeroing settings in shooting profiles, with the Thermion 2 LRF capable of storing up to 10 shooting profiles, each accommodating up to ten zeroing distances.

A Selection of 10 Reticle Shapes in 9 Color Modes

Choose from ten reticle configurations and functions available in nine colors, electronically displayed in the same plane as the target for enhanced aiming accuracy.

Rugged and Reliable

Mount the Thermion 2 LRF on standard 30 mm rings for aesthetic appeal and flexibility in mounting on hunting weapons.

Instant Start-Up

Experience quick start-up with just 3 seconds from pressing the power button to full readiness for operation.

High Caliber Recoil Resistance

Designed to withstand high impact, the Thermion 2 LRF is compatible with rifles of various calibers, including 12 gauge, 9.3x64, .375H&H, and more.

Completely Waterproof IPX7

With an IPX7 waterproof rating, the Thermion 2 LRF can withstand high humidity, heavy rain, and even immersion in water up to 1 meter deep for 30 minutes.

Operating Temperature Range: -25 to +50 °C

Operate the Thermion 2 LRF in temperatures ranging from -25 to +50 °C, with its frost-resistant AMOLED display ensuring a sharp image in motion.

Image Quality

Enjoy high contrast HD imagery on the 1024x768 HD AMOLED display, with enhanced color rendering, power saving, and quick response for clear and smooth images.

Wide-Angle Eyepiece for Comfortable Observation

Experience comfortable image perception with the wide-angle eyepiece (29.5°) and wide viewing angle of the HD quality AMOLED display, eliminating the keyhole effect and reducing eye strain.

Photo and Video Recording

Capture memorable moments with one-touch photo and video recording, storing them on the Thermion 2 LRF's 16 GB internal memory for easy sharing.

Stream Vision 2. WiFi Integration

Connect the Thermion 2 LRF to smartphones via built-in WiFi and the Stream Vision 2 mobile app, enabling wireless software updates, real-time image transmission, remote control, and cloud storage for photos and videos.

Equipment

• Rechargeable battery APS2
• USB/230V charger
• Cleaning material for optics
• Eye cup
• Lens cap
• Instruction manual
• Cover
• Warranty card with hologram
• Cover for APS3
• Battery docking station for APS batteries
• Cover for APS2
• USB-C to USB-C cable with USB-A adapter
• Built-in 4900 mAh rechargeable battery
• Integrated laser rangefinder

Specifications

Sensor

Resolution: 384x288 pixels @ 17 µm (NETD <25 mK)

Type: Uncooled

Pixel Pitch: 17 µm

Frame Rate: 50 Hz

Objective Lens

Focal Length: F50 / 1.0

Magnification: 3 – 12x

Field of View (HxV): 7.5x5.6 degrees / 13.1x9.8 m @ 100m

Eye Relief: 50 mm

Display

Type: AMOLED

Resolution: 1024x768 pixels

Range Performance

Detection Range: 1800 m

Laser Rangefinder

Safety Class: Class 1

Wavelength: 905 nm

Max. Measuring Range: 800 m

Measurement Accuracy: ± 1 m

Reticle

Click Value (H/V): 13 – 3x, 6.5 – 6x, 3.25 – 12x mm @ 100 m

Click Range (H/V): 2600 / 2600 mm @ 100 m

Number of Preloaded Reticles: 10

Video Recorder

Resolution: 1024x768 pixels

Format: .mp4 / .jpg

Built-in Memory: 16 GB

Wi-Fi

Wireless Protocol: IEEE 802.11 b/g/n/ac

Frequency: 2.4 / 5 GHz

Environmental Characteristics

Degree of Protection: IPX7

Operating Temperature Range: -25°C – +50°C

Connections and Compatibilities

Max. Recoil Power on Rifled Weapon: 6000 Joules

Shock Resistance on Smooth-bore Rifles (Caliber): 12

Compatible Mounts: Standard 30 mm rings

Supported Applications: Stream Vision 2, Stream Vision Ballistics

Power Supply

Output Voltage: 3.7 V

Battery Type: Dual Li-Ion B-Pack Mini Power System (2 A·h Changeable Battery - External / 4.9 A·h Battery - Internal)

Capacity: 2000 mAh (external) + 4900 mAh (internal)

Operating Time on Battery Pack (at t=22°C): 10 hours

External Power Supply: 5 V, 9 V (USB Type-C Power Delivery)

Weight & Size

Body Material: Aluminum Alloy

Dimensions: 420x78.5x94.5 mm

Weight: 0.97 kg

Trade Data

SKU (Model #): 76555

Status: Production
