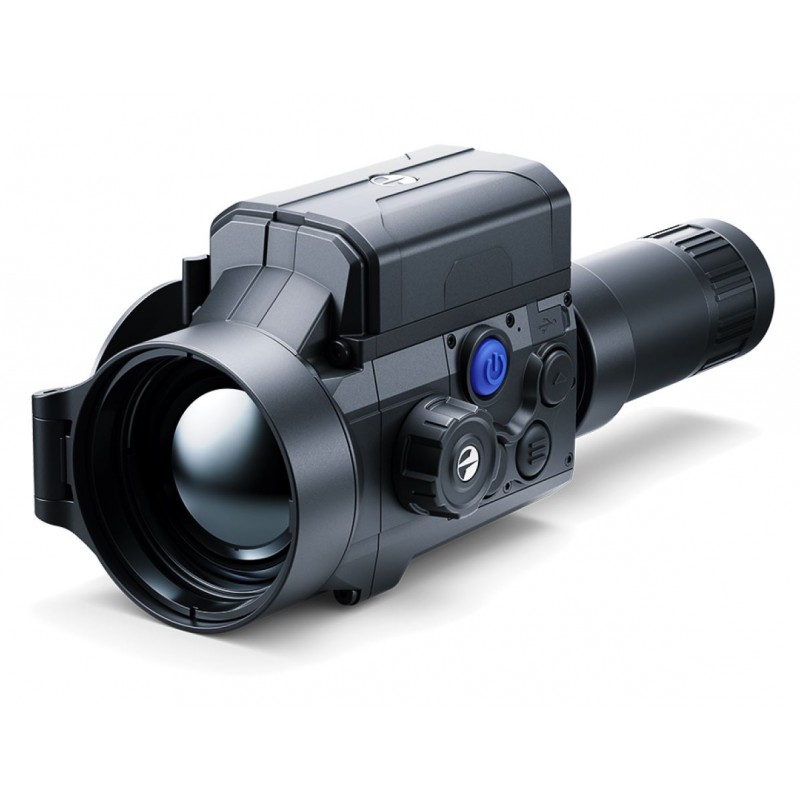

Pulsar Krypton 2 XG50 Thermal Imaging Monocular 77379

The Krypton 2 thermal imager embodies versatility through its modular design, combining a compact thermal imaging module with a Pulsar 3x20B quick-release monocular. This innovative setup transforms into a three times magnification spotting scope for natural daytime observation with a single motion. Moreover, the thermal imaging unit is seamlessly compatible with monocular-type daytime optical devices. Docking the Krypton 2 thermal imaging module with daytime optics is effortless thanks to the special PSP-B adaptor, converting day optics into thermal imaging devices. With a quick-release adaptor, the Krypton 2 can be swiftly detached from and reattached to a daytime spotting scope or binocular, facilitated by a precise positioning mechanism ensuring the central alignment of the thermal image within the daytime optics field of view.

User Mode

Tailoring the viewing experience, users can optimize image quality by adjusting brightness and contrast to suit specific observation conditions. The User Mode feature memorizes these settings, guaranteeing optimal image quality for subsequent uses of the thermal imager without the need for additional adjustments.

Supreme Energy Performance

Empowering extended operation, the Krypton 2 boasts an exceptional energy performance, delivering up to 11 hours of continuous operation on a single battery charge. The quick-change rechargeable Li-Ion battery pack IPS7 ensures uninterrupted use throughout the night, with its quick-release and wireless design enhancing user convenience.

Compact and Well-Balanced

In the pursuit of hunting efficiency, the Krypton 2 prioritizes lightweight and ergonomic design. Its compact dimensions and balanced weight distribution minimize impact on balance when mounted on optical riflescope or spotting scope lenses, ensuring ease of use. Additionally, intuitive controls enhance accessibility during operation.

Stream Vision 2: Wi-Fi Integration

Integrated Wi-Fi connectivity enables seamless interaction with Android and iOS smartphones via the Stream Vision 2 mobile application. This integration offers a plethora of functionalities, including wireless software updates, real-time image transmission, social media sharing, remote device control, and access to Pulsar's latest updates. Furthermore, users enjoy 16 GB of cloud storage for media captured with the device.

Rugged Magnesium Alloy Housing

Crafted from a robust magnesium alloy, the Krypton 2's housing exhibits exceptional structural strength, shielding the device from shock, vibration, and external environmental factors. Its heat dissipation capabilities ensure operational stability, even in challenging conditions.

High-Definition Thermal Imaging

Equipped with a European-made 12 µm / 640x480 pixel thermal imaging sensor, the Krypton 2 delivers high-definition thermal imaging. This sensor ensures sharp, contrasted thermal images, facilitating enhanced identification of animals and intricate details in the environment.

Extra-Long 2300m Detection Range

The Krypton 2's powerful objective lens, paired with a professional-grade 12 µm thermal imaging sensor, enables exceptional detection capabilities. It boasts an impressive 2300m detection range, allowing users to spot standard 1.8m tall objects in complete darkness.

Equipment

• Instruction manual
• USB cable
• USB/230V charger
• Material for cleaning optics
• Neck strap
• Remote control
• Lens cap
• IPS7 rechargeable battery
• Cover
• Warranty card with hologram
• IPS battery cover
• IPS battery docking station
• Eyepiece cover
• Battery socket cover
• Observation monocular 3x20b

Specification

Main

Sensor: 640x480 @ 12 µm (NETD <40 mK)

Objective lens: F50 / 1.0

Magnification in monocular mode / attachment mode, x: 3 / -

Field of view (HxV), degrees / m@100m: 8.8x6.6 / 15.4x11.5

Detection range, m: 2300

Sensor

Type: Uncooled

Resolution, pixels: 640x480

Pixel pitch, µm: 12

NETD, mK: <40

Frame rate, Hz: 50

Optics

Objective lens: F50 / 1.0

Magnification in monocular mode / attachment mode, x: 3 / -

Field of view (HxV), degrees / m @ 100 m: 8.8x6.6 / 15.4x11.5

Recommended magnification of the day scope, x: up to 6

Display

Type: AMOLED

Resolution, pixels: 1920x1080

Range Performance

Detection range, m: 2300

Video Recorder

Video / photo resolution, pixel: 1024x768

Video / photo format: .mp4 / .jpg

Built-in memory, GB: 16

Wi-Fi

Wireless Protocol: Wi-Fi

Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)

Frequency, GHz: 2.4 / 5

Bluetooth

Wireless Protocol: BLE 4.2

Wireless Standard: IEEE 802.15.1

Frequency, GHz: 2.4

Environmental Characteristics

Degree of protection, IP code (IEC60529): IPX7

Operating temperature range, °С: -25 – +50

Connections and Compatibilities

Remote control: Pulsar BT (included)

Supported Application: Stream Vision 2

Power Supply

Output voltage, V: 3.0 – 4.2

Battery type: IPS7 Li-Ion Battery Pack

Capacity, mAh: 6400

Operating time on battery pack (at t=22°C), h: up to 11

External power supply, V: 5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body material: Magnesium alloy

Dimensions, mm: 217x78x84 (with Pulsar 3x20B monocular)

Weight, kg: 0.45 (w/o battery) / 0.58 (with IPS7 battery)

Trade Data

SKU (Model #): 77379

Status: Production
