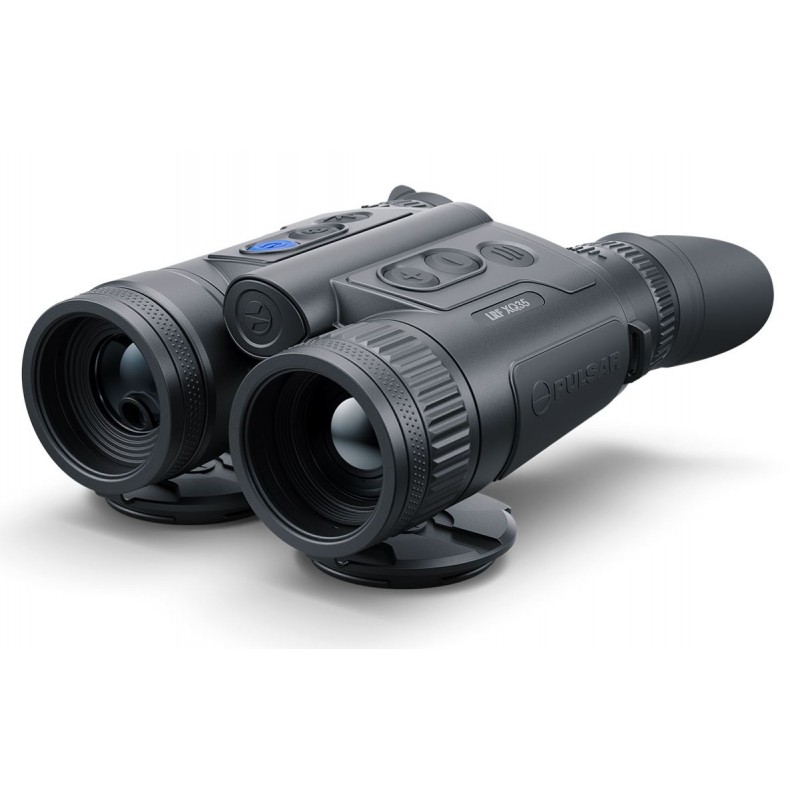

Pulsar Merger LRF XQ35 Thermal Imaging Binoculars 77483

The Merger LRF XQ35 boasts a compact design akin to classic daytime binoculars, making it perfect for stalking and pursuit. As the lightest in its line, it offers convenient handling during animal searches and pursuits, ensuring balanced weight distribution for comfortable, fatigue-free observation over extended periods.

Classic Binocular Design

Sporting the classic shape of daytime binoculars, the Merger LRF combines compact design with a comfortable grip. Its six functional buttons are strategically placed for quick access to commonly used features, enhancing user convenience.

Highly Sensitive Thermal Sensor

Featuring a highly sensitive <25 mK NETD European-made Lynred sensor, the Merger LRF XQ35 captures clear images even in challenging conditions with low thermal contrast, such as rain, fog, and high humidity.

User Mode and Proximity Sensor

The User Mode function allows users to optimize image detail and information by saving customized brightness and contrast settings in the device's memory. Additionally, the built-in proximity sensor ensures covert observation by automatically switching off the display backlight in darkness, enhancing stealth.

Rugged Magnesium Alloy Housing

Designed for durability, the Merger LRF's magnesium alloy housing provides robust protection against shocks, drops, moisture, heat, and cold. It effectively dissipates heat from internal components, ensuring consistent performance during prolonged use.

Precise Laser Rangefinder

Equipped with a built-in laser rangefinder offering a range of up to 1000m, the Merger LRF enables accurate distance measurement for quick and error-free situational assessment.

Combined Dual Battery System

Powered by two rechargeable batteries—one built-in with a capacity of 4 Ah and the other replaceable with a capacity of 3.2 Ah—the Merger LRF ensures up to 11 hours of battery life on a single charge. The embossed design on the replaceable battery facilitates easy replacement even in complete darkness.

Enhanced Sensitivity Amplification and Recording

With three levels of sensitivity amplification and advanced filtration algorithms, the Merger LRF offers excellent long-range observation capabilities in various weather and temperature conditions. It also features a built-in photo and video recorder with ample internal memory.

Stream Vision 2 Integration

Built-in Wi-Fi connectivity enables seamless integration with Android and iOS smartphones via the Stream Vision 2 mobile application, providing access to wireless device software updates, real-time image transmission, remote control functions, and cloud storage for recorded content.

Comfortable Viewing and Fast Aperture Lens

The Merger LRF's binocular design ensures a comfortable viewing experience, with adjustable interpupillary distance catering to individual user preferences. Its fast aperture F35/1.0 germanium lens delivers clear, detailed images even in challenging conditions.

Dual Wi-Fi Support and High-Contrast Displays

Featuring dual Wi-Fi waveband support and high-contrast HD AMOLED displays, the Merger LRF offers enhanced connectivity, faster data transfer rates, and crisp, vivid imagery for optimal observation.

Customizable Color Palettes and Waterproof Rating

Users can choose from eight color palettes to optimize their viewing experience for specific tasks and environmental conditions. Furthermore, the unit's IPX7 waterproof rating ensures reliable performance even in heavy rainfall or submersion in water.

Operation in Extreme Temperatures

Designed to withstand extreme temperatures ranging from -25 to +50°C, the Merger LRF ensures consistent and effective performance in various environments and weather conditions.

Equipment

• Rechargeable battery APS3
• Instruction manual
• USB cable
• USB/230V charger
• Material for cleaning optics
• Neck strap
• Lens cap
• Cover
• Warranty card with hologram
• APS battery docking station
• Tripod adapter ¼"

Specifications

Main

Sensor: 384x288 pixels @ 17 µm (NETD <25 mK)

Objective Lens: F35 / 1.0

Magnification: 3 – 12 (x4 zoom)

Field of View (HxV): 10.7°x8° / 18.7x14m@100m

Detection Range: 1350m

Sensor

Type: Uncooled

Resolution: 384x288 pixels

Pixel Pitch: 17 µm

NETD: <25 mK

Frame Rate: 50 Hz

Optics

Objective Lens: F35 / 1.0

Magnification: 3 – 12

Field of View (HxV): 10.7°x8° / 18.7x14m@100m

Interpupillary Distance Adjustment: 62 – 74 mm

Eye Relief: 15 mm

Display

Type: AMOLED HD

Resolution: 1024x768 pixels

Range Performance

Detection Range: 1350m

Laser Rangefinder

Safety Class: Class 1

Wavelength: 905 nm

Max. Measuring Range: 1000m

Measurement Accuracy: ±1m

Video Recorder

Video / Photo Resolution: 1024x768 pixels

Video / Photo Format: .mp4 / .jpg

Built-in Memory: 16 GB

Wi-Fi

Wireless Protocol: Wi-Fi

Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)

Frequency: 2.4 / 5 GHz

Environmental Characteristics

Degree of Protection: IPX7 (Waterproof)

Operating Temperature Range: -25°C – +50°C

Connections and Compatibilities

Mount Type: 1/4" Socket

Supported Application: Stream Vision 2

Power Supply

Output Voltage: 3.7 V

Battery Type: Dual Li-Ion Power System: 3.2 A·h Changeable Battery (External) / 4.0 A·h Battery (Internal)

Capacity: 3200 mAh (External) + 4000 mAh (Internal)

Operating Time on Battery Pack: 11 hours (at t=22°C)

External Power Supply: 5V, 9V (USB Type-C Power Delivery)

Weight & Size

Body Material: Magnesium Alloy

Dimensions: 181x133x68 mm

Weight: 0.83 kg (Batteries Included)

Trade Data

SKU (Model #): 77483
