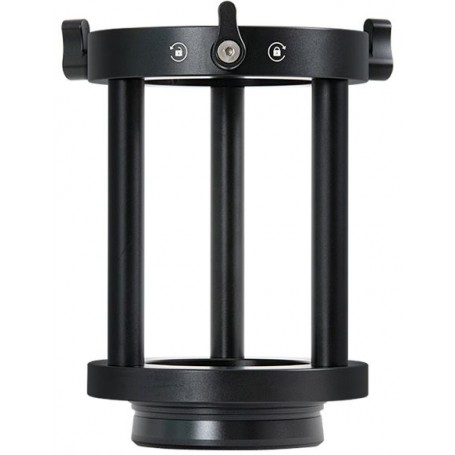

ZWO 160 mm pier extension for ZWO AM5 (SKU: ZWO-PE160)

The ZWO PE160 is a specialized pier extension designed to elongate the ZWO AM5 assembly. It's particularly useful for astrophotography setups where the length of the optical tube or the positioning of the counterweight arm might lead to potential collisions between the AM5 mount and the tripod.

Constructed from aviation-grade aluminum alloy, the PE160 extension achieves a remarkable balance between lightweight design and robust load-bearing capabilities, capable of supporting up to 13 kg. However, it's advisable to adhere to the manufacturer's recommendation of using the extension for optical setups weighing no more than 10 kg.

Important Note: The PE160 extension is not modular and cannot be combined with the PE70 extension.

Key Features of the ZWO PE160 Assembly Extension for AM5:

Lightweight, openwork design with a maximum load capacity of 13 kg

Crafted from aviation-grade aluminum alloy using precision CNC technology

Easy to assemble and disassemble

Included in the Set:

• PE160 assembly extension for ZWO AM5

Technical Specifications:

Compatible with: ZWO AM5 mount

Maximum Load: 13 kg

Maximum Recommended Load: 10 kg

Material: Aluminum

Finish: Matte Black

Diameter: 124 mm

Height: 160 mm

Weight: 1 kg

Warranty:

24 months
