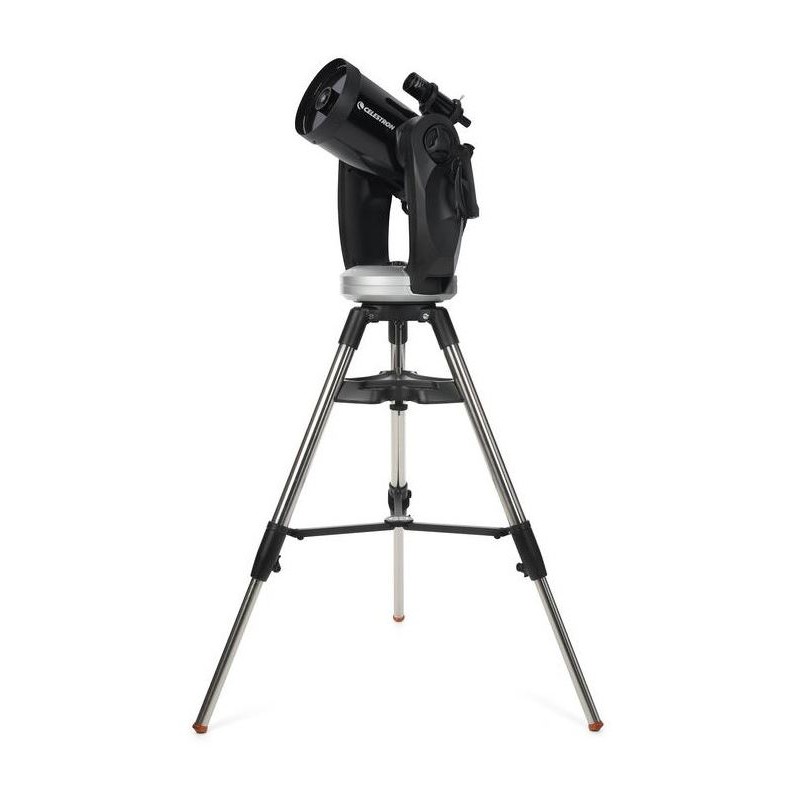

Celestron Schmidt-Cassegrain telescope SC 203/2032 CPC 800 GoTo StarSense AutoAlign
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Celestron Schmidt-Cassegrain telescope SC 203/2032 CPC 800 GoTo StarSense AutoAlign

Celestron's Schmidt-Cassegrain telescopes offer impressive features despite their long focal length, presenting a compact design for easy transportation. The optical system begins with an aspherically figured Schmidt corrector plate that directs light onto a spherical main mirror. This mirror reflects the light to a secondary mirror and then back to the main mirror, passing through a central aperture to reach the focuser at the OTA's bottom.

3948.80 $
Tax included

3210.41 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Celestron's Schmidt-Cassegrain Optics:

Celestron's Schmidt-Cassegrain telescopes offer impressive features despite their long focal length, presenting a compact design for easy transportation. The optical system begins with an aspherically figured Schmidt corrector plate that directs light onto a spherical main mirror. This mirror reflects the light to a secondary mirror and then back to the main mirror, passing through a central aperture to reach the focuser at the OTA's bottom. This closed system effectively eliminates air turbulence and protects against dust, ensuring consistently bright and clear images.

These telescopes provide excellent image quality, particularly suitable for planetary observation and astrophotography. Their versatile design allows for both celestial and terrestrial viewing, offering an aperture ratio conducive to astrophotography. The main mirror focusing mechanism ensures a wide range of focus options, while pre-loaded ball bearings minimize mirror shift.

Included with the telescope are essential accessories such as a 25mm Ploessl eyepiece, a 1.25" star diagonal, a mounting rail, and a 6x30 straight-view finder scope.

Celestron CPC Mount:

The Celestron CPC mount offers secure mounting for Schmidt-Cassegrain scopes in a sturdy cast aluminum fork mount. While the telescope tube cannot be changed, this design enhances compactness, eliminates the need for heavy counterweights, and ensures excellent portability. The mount's rapid setup and alignment process make it exceptionally user-friendly, with a built-in spirit level for easy leveling.

SkyAlign technology simplifies the alignment process by utilizing a 16-channel GPS receiver to identify celestial objects for precise tracking. Following alignment, the telescope provides access to over 40,000 database objects and offers recommendations based on current time and location. Additional features include autoguider and PC connections, large coupling knobs for manual operation, and an ergonomic design for comfortable transportation.

The high-load-bearing tripod features stainless steel legs and a cast aluminum accessory shelf for stability, with spring-loaded mounting screws for quick setup. With permanent periodic error correction (PEC) and optional equatorial wedge compatibility, the CPC mount ensures precise tracking and optimal performance for astrophotography.



Included Accessories:

  • 1.25'' Eyepieces: PL 40mm
  • Finder Scope: 8x50
  • Software: NexRemote
  • Deviating Optics: 1.25", 90° Star Diagonal
  • Miscellaneous: 12V Car Cigarette Lighter Adapter Cable



Specifications:

Optics:

Type: Reflector

Build Type: Schmidt-Cassegrain

Aperture (mm): 203

Focal Length (mm): 2032

Aperture Ratio (f/): 10

Resolving Capacity: 0.57

Limit Value (mag): 13.3

Light Gathering Capacity: 840

Max. Useful Magnification: 410

Tube Length (mm): 432

Coating: Starbright XLT

Tube Construction: Full Tube

Reflector:

Secondary Mirror Diameter (mm): 63.5

Focuser:

Build Type: SC Thread

Connection (to Eyepiece): 2

Mount:

Build Type: CPC

Mounting Type: Azimuthal

GoTo Control: Yes

Tracking Speed: 64 - 16 - 8 - 4 - 1 - 0.5, 3 - 2 - 0.5

Power Supply: 12V

Power Consumption (mA): 900

Software: NexStar

Database: 40,000

Alignment Method: SkyAlign

Interfaces: AutoGuider, Aux, RS232

GPS: Yes

GoTo Language: English

Tripod:

Type: Tripod

Material: Steel

Weight (kg): 12.3

General:

Total Weight (kg): 31.3

Series: CPC

Special Recommendation: Yes

Area of Application:

Astrophotography: Yes

Moon & Planets: Yes

Nature Observation: Yes

Sun: No (Only with appropriate Sun filter)

Nebulae & Galaxies: Yes

Recommended for:

Beginners: Yes

Advanced: Yes

Observatories: No
