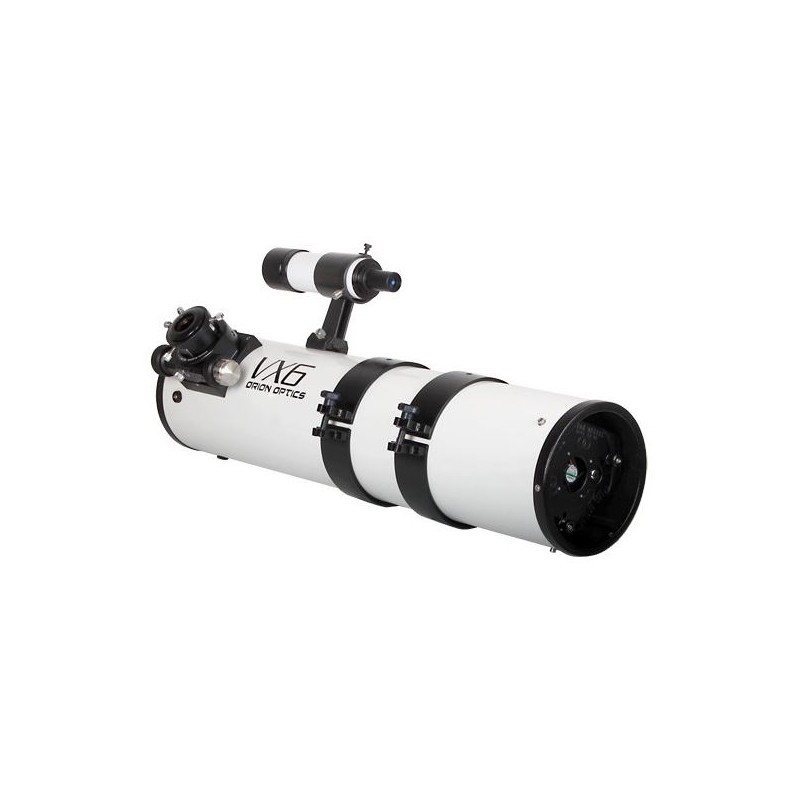

Orion Optics N 150/750 VX6 OTA Telescope

The VX series of telescopes combines the key advantages of the high-quality CT series at a more accessible price point. With VX telescopes, you get the same premium optics found in the CT series, complete with a Zygo interferometer report for quality assurance.

Each model comes equipped with a straight 50mm finder and a quality 2" focuser (including a 1.25" adapter). The lightweight aluminum tube makes VX telescopes easy to mount, while the precision-engineered, fan-cooled, 9-point suspension mirror cell ensures optimal support and cooling for the main mirror, maintaining its accuracy during extended observations.

VX telescopes deliver exceptional imaging capabilities, making them ideal for serious introductory use.

N 150/750 telescope: This versatile Newtonian reflecting telescope offers both beginners and experienced astronomers ample light gathering power and stability at an affordable price. With its generous 150mm diameter, it reveals distant Deep Sky Objects (DSOs) like the Ring Nebula in Lyra and the Dumbbell Nebula with stunning clarity. Globular clusters such as M13 resolve into individual stars at their edges, while planetary observations reveal rich detail in images of Saturn, Jupiter, Venus, and Mars. The f/5 focal ratio categorizes this reflector as a 'fast' Newtonian telescope, making it particularly suitable for astrophotography. The light gathering capacity of the 150 is 460 times greater than the naked eye alone (with a 7mm fully dilated pupil).

Key Advantages:

• High light gathering power with a 150mm aperture
• Compact design resistant to vibration and wind
• Diffraction-limited parabolic primary mirror
• High-contrast image due to thin secondary mirror spider vanes
• Portable and quick to assemble
• Short focal length enables shorter exposure times for astrophotography

Standard or Long? The telescopes in this series offer a choice between short and long focal lengths. The short version, with a camera adapter and camera, excels in photographing Deep Sky objects, while the Long (L) version provides stunning visual images at higher magnifications and is ideal for planetary and lunar photography.

Mirror Cells: The VX telescopes feature a computer-optimized, anodized aluminum surface cell with a built-in cooling fan (12V DC). Its 9-point, nylon66-tipped suspension system evenly distributes the load of the mirror, ensuring optimal support.

Focuser ACU-2S: This high-quality 2” (50.8mm) Crayford focuser offers ultra-smooth operation, with a lower geared 10:1 ratio micro-adjustment for precise focusing with an eyepiece or camera. Ideal for small to medium-sized cameras, including DSLRs and medium format CCD chips, its knurled knob securely tightens the draw tube, ensuring sharp, flawless images.

Included Accessories

• Tube Clamps: Yes
• Finder Scope: 8x50
• Prism Rail: Without
• Extension Tubes: Yes
• Eyepiece Adaptor: 1.25" - 2"

SPECIFICATIONS

Optics

Type: Reflector

Build Type: Newton

Aperture: 150mm

Focal length: 750mm

Aperture Ratio: f/5

Resolving Capacity: 0.92

Limit Value: 12.7 mag

Light Gathering Capacity: 460

Tube Material: Aluminum

Tube Weight: 4.5kg

Tube Diameter: 167mm

Tube Length: 750mm

Tube Construction: Full tube

Reflector

Secondary Mirror Diameter: 50mm

Finish Quality: 1/8

Ventilation for Central Mirror: Yes

Adjustable: Yes

Secondary Mirror Design: Plan

Main Mirror's Construction: Parabolic

Reflectivity: 97%

Focuser

Connection to Eyepiece: 2"

Type of Build: Crayford

Ring Clamp: Yes

Adjustment Range: 23mm

Free Aperture: 50.9mm

Gear Reduction: 1:10 Fine Movement

Mount

Type of Build: OTA

Mounting Type: No mount

General

Series: VX

Area of Application: Moon & Planets, Nebulae & Galaxies, Astrophotography

Sun: No (Only with appropriate Sun filter)

Recommended for: Beginners (No), Advanced (Yes)

Observatories: No
