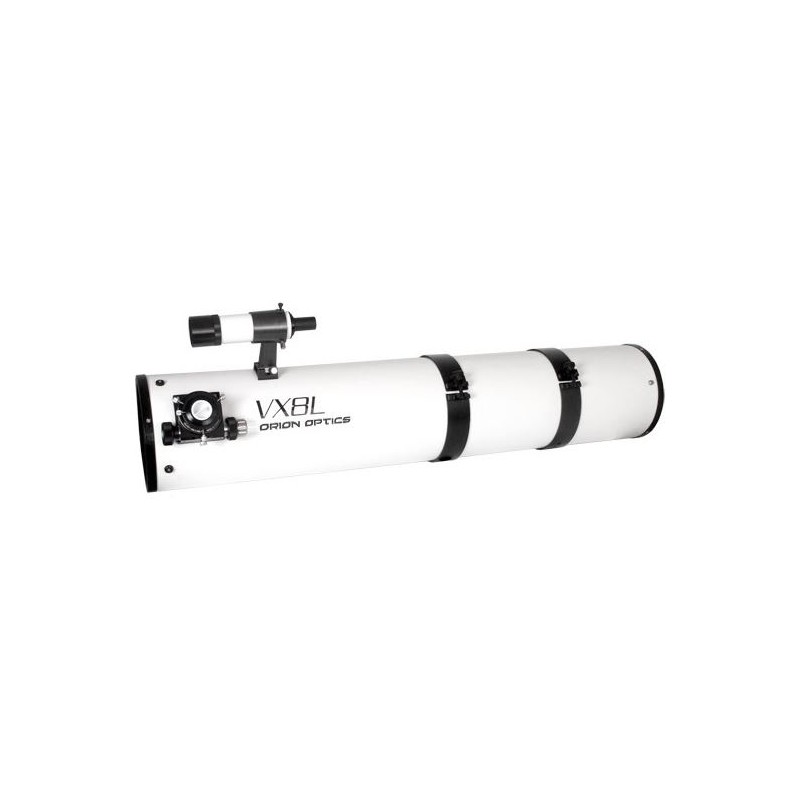

Orion Optics N 200/1200 VX8L OTA Telescope (finish quality 1/8)

The VX series of telescopes offers many of the premium features of the high-quality CT series at a more affordable price point. These VX instruments boast the same top-notch optics as the CT series and are accompanied by a Zygo interferometer report for quality assurance.

Each VX model is equipped with a straight 50mm finder and a quality 2" focuser (complete with a 1.25" adapter). Thanks to their lightweight aluminum tube construction, VX telescopes can be easily mounted, making them highly versatile. The precision-engineered, fan-cooled, 9-point suspension mirror cell provides impeccable support and cooling to the main mirror, ensuring consistent accuracy during prolonged observations, while effectively managing weight distribution with the nylon support points.

VX telescopes deliver exceptional imaging capabilities, making them ideal for serious introductory use.

Optics N 200 (8"): The brightness and level of detail in telescope images are primarily determined by the size of the main mirror, which dictates the amount of light collected and transmitted to the eye or camera. With over 40% brighter images than their 6" (150mm) counterparts, the 8"-telescopes offer superior clarity. Additionally, the larger mirrors of the 8" models (33% larger than the 6") provide significantly more detailed images, allowing for higher magnifications.

Standard or Long? This series offers both standard and long focal length versions. The standard focal length, when coupled with a camera adaptor and camera, excels in capturing spectacular images of Deep Sky objects. The long (L) version, on the other hand, is optimized for stunning visual images at higher magnifications, making it ideal for planetary and lunar photography.

Mirror Cells: A telescope's optics can be compromised if not properly supported within the telescope's body. The VX telescopes feature a computer-optimized, anodized aluminum surface cell with a built-in cooling fan (12V DC) to prevent such issues. The 9-point, nylon66-tipped suspension system evenly distributes the mirror's load, ensuring optimal support.

Focuser ACU-2S: This high-quality 2” (50.8mm) Crayford focuser offers ultra-smooth operation, with a lower geared 10:1 ratio micro-adjustment for precise focusing with either eyepieces or cameras. Ideal for a range of cameras, including DSLRs and medium format CCD chips, its knurled knob securely locks the draw tube in position, guaranteeing sharp, flawless images.

Included Accessories

• Tube Clamps: Yes
• Finder Scope: 8x50
• Prism Rail: Without
• Extension Tubes: Yes
• Eyepiece Adaptor: 1.25" - 2"

SPECIFICATIONS:

Optics

Type: Reflector

Build Type: Newton

Aperture: 200mm

Focal Length: 1200mm

Aperture Ratio: f/6

Resolving Capacity: 0.69

Limit Value: 13.3 mag

Light Gathering Capacity: 820

Tube Material: Aluminum

Tube Weight: 8kg

Tube Diameter: 225mm

Tube Length: 1130mm

Tube Construction: Full tube

Reflector

Secondary Mirror Diameter: 50mm

Finish Quality: 1/8

Ventilation for Central Mirror: Yes

Adjustable: Yes

Secondary Mirror Design: Plan

Main Mirror's Construction: Parabolic

Reflectivity: 97%

Focuser

Connection to Eyepiece: 2"

Build Type: Crayford

Ring Clamp: Yes

Adjustment Range: 23mm

Free Aperture: 50.9mm

Gear Reduction: 1:10 Fine Movement

Mount

Build Type: OTA

Mounting Type: No mount

General

Series: VX

Area of Application: Moon & Planets, Nebulae & Galaxies, Astrophotography

Sun: No (Only with appropriate Sun filter)

Recommended for: Beginners (No), Advanced (Yes)

Observatories: No
