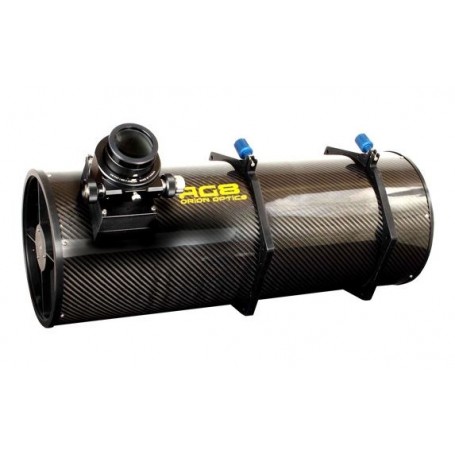

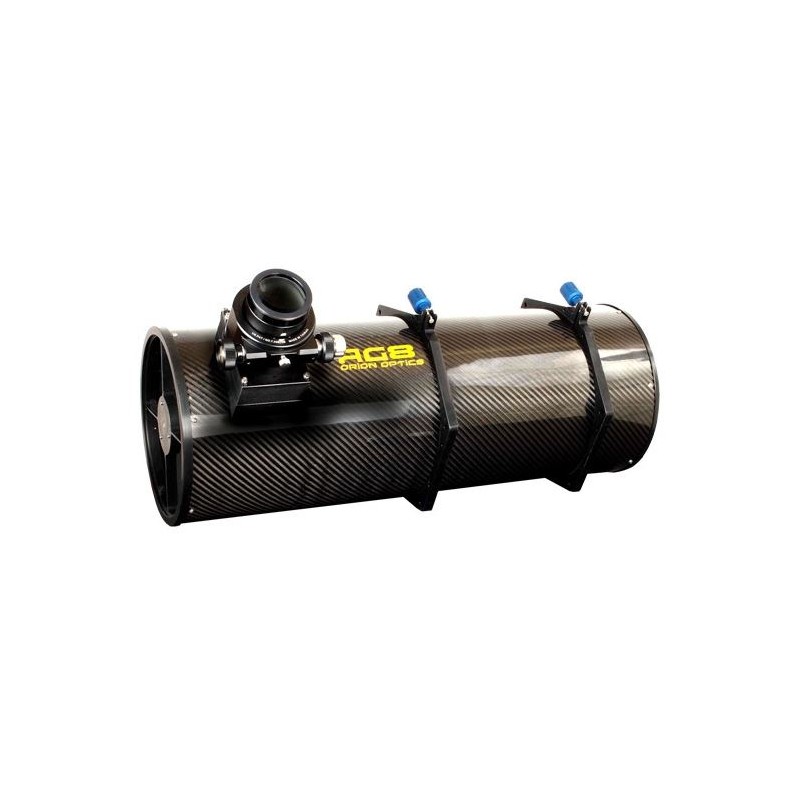

Orion Optics N 200/760 AG8 Carbon Astrograph OTA Telescope
Orion Optics N 200/760 AG8 Carbon Astrograph OTA Telescope
4957.13 $ net price (non-EU countries)
100% secure payments
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Olesia Ushakova
Product Manager /
+48695005004 +48695005004 +48695005004
[email protected]
Description
Included Accessories
- Tube Clamps: Yes
- Corrector: 3" Wynne Corrector
- Prism Rail: Without
- Finder Scope: Without
SPECIFICATIONS
Optics
Type: Reflector
Build Type: Newton
Aperture: 200mm
Focal Length: 760mm
Aperture Ratio: f/3.8
Resolving Capacity: 0.69
Limit Value: 13.3 mag
Light Gathering Capacity: 820
Tube Weight: 6kg
Tube Material: Carbon
Tube Length: 635mm
Tube Diameter: 255mm
Coating: Hilux
Tube Construction: Full tube
Reflector
Secondary Mirror Diameter: 90mm
Secondary Mirror Design: Plan
Main Mirror's Construction: Parabolic
Ventilation for Central Mirror: Yes
Adjustable: Yes
Primary Mirror Material: Suprax
Aluminising: Aluminium
Focuser
Connection to Eyepiece: 2"
Build Type: Crayford
Gear Reduction: 1:10 Fine Movement
Backfocus: 79mm
Free Aperture: 76mm
Connecting Threaded Socket (Camera-side): M85
Adjustment Range: 160mm
Mount
Type of Build: OTA
Mounting Type: No Mount
General
Series: Astrograph
Area of Application: Moon & Planets, Nebulae & Galaxies, Astrophotography
Nature Observation: No
Astrophotography: Yes (Very Good)
Sun: No (Only with Appropriate Sun Filter)
Recommended for: Beginners (No), Advanced (Yes)
Observatories: No
Data sheet
