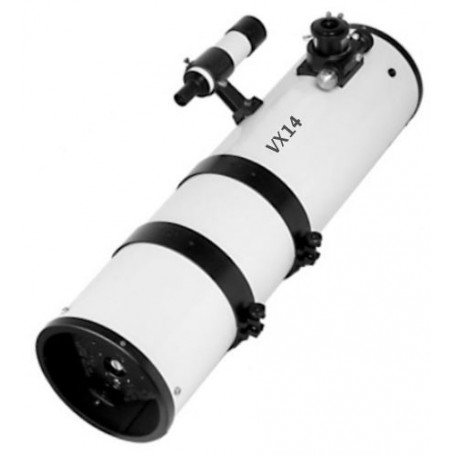

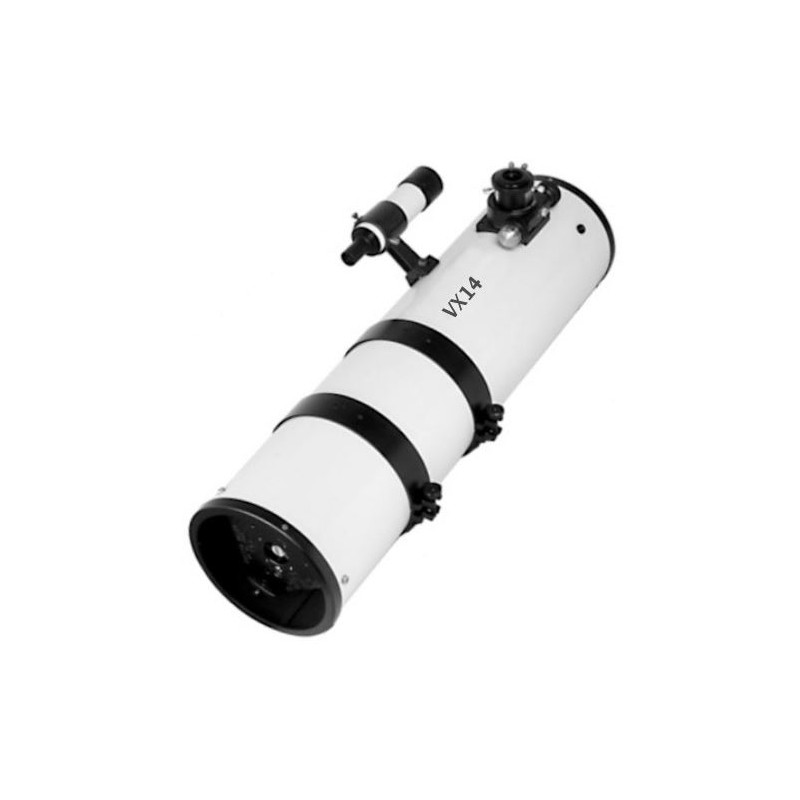

Orion Optics N 350/1600 VX14 OTA Telescope

The VX series of telescopes bridges the gap between affordability and quality, inheriting many advantages from the esteemed CT series. These VX instruments boast the same high-quality optics as their CT counterparts and are accompanied by a Zygo interferometer report.

Each model features a straight 50mm finder and a top-notch 2" focuser, complete with a 1.25" adapter. Thanks to their lightweight aluminum tube, VX telescopes easily adapt to various mounts. The precision-engineered, fan-cooled, 9-point suspension mirror cell ensures optimal support and cooling for the main mirror, maintaining its accuracy during extended observations.

A VX telescope promises some of the finest images achievable in a serious introductory telescope.

Mirror Cells: The importance of proper support for optics cannot be overstated. Poorly designed mirror cells can severely degrade image quality. To combat this, VX telescopes come equipped with a computer-optimized, anodized aluminum surface cell featuring a built-in cooling fan (12V DC). The 9-point, nylon66-tipped suspension system evenly distributes the mirror's load, promoting accuracy.

Focuser ACU-2S: This high-quality 2” (50.8mm) Crayford focuser ensures ultra-smooth operation, facilitating precise focusing for both visual observation and photography. Its 10:1 ratio micro adjustment allows for fine-tuning with eyepieces or cameras, making it ideal for DSLR and medium format CCD chips. With a simple twist of the knurled knob, the draw tube locks securely into position, ensuring sharp, flawless images.

Included Accessories:

• Tube Clamps: Yes
• Finder Scope: 8x50
• Extension Tubes: Yes
• Eyepiece Adaptor: 1.25" - 2"

SPECIFICATIONS

Optics Type: Reflector

Build Type: Newton

Aperture: 350mm

Focal Length: 1600mm

Aperture Ratio: f/4.6

Resolving Capacity: 0.39

Limit Value: 14.5 mag

Light Gathering Capacity: 2500

Tube Material: Aluminium

Tube Weight: 20kg

Tube Diameter: 385mm

Tube Length: 1540mm

Tube Construction: Full tube

Reflector:

Secondary Mirror Diameter: 75mm

Secondary Mirror Design: Plan

Main Mirror's Construction: Parabolic

Reflectivity: 97%

Finish Quality: 1/10

Focuser:

Connection to Eyepiece: 2"

Build Type: Crayford

Ring Clamp: Yes

Adjustment Range: 23mm

Free Aperture: 50.9mm

Gear Reduction: 1:10 Fine Movement

Mount:

Type of Build: OTA

Mounting Type: No mount

General:

Series: VX

Area of Application: Moon & Planets, Nebulae & Galaxies, Astrophotography

Nature Observation: No

Astrophotography: Yes

Sun: No (Only with appropriate Sun filter)

Recommended for: Beginners (No), Advanced (Yes)

Observatories: Yes
