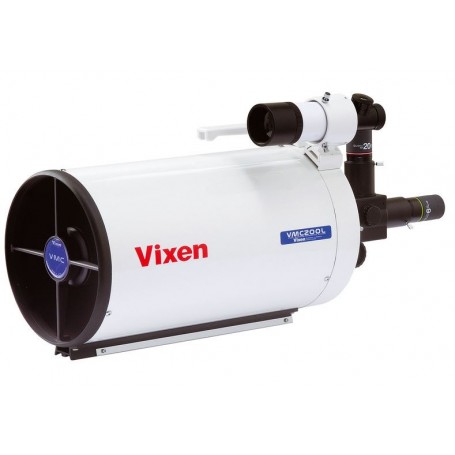

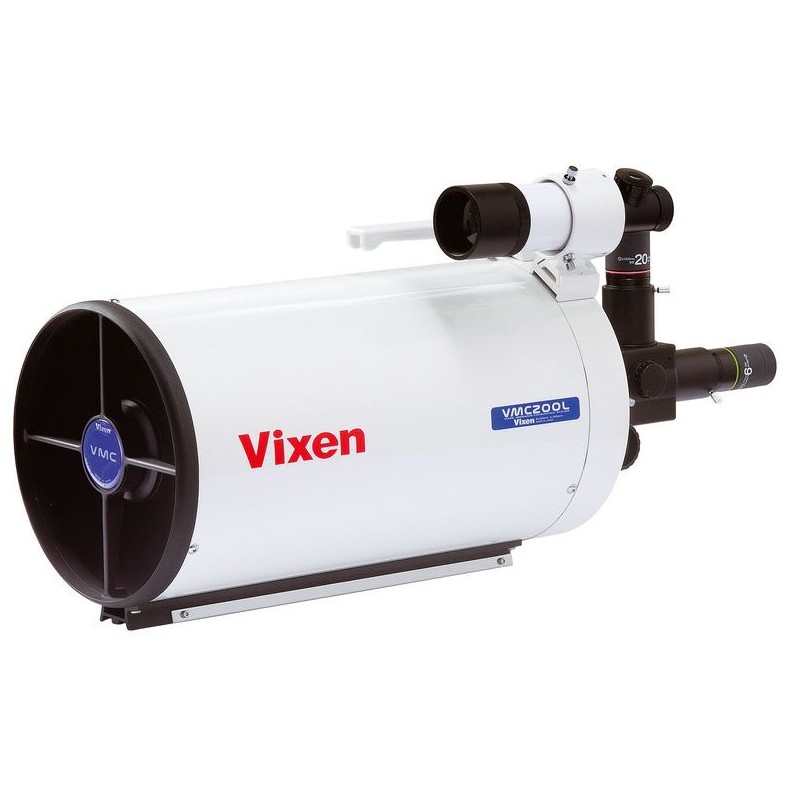

Vixen MC 200/1950 VMC200L OTA Cassegrain telescope

The VMC200L presents a distinctive 200mm 8-inch catadioptric optical system. Unlike traditional designs, it integrates a primary mirror and a meniscus corrector just ahead of a secondary mirror, effectively correcting light twice along the optical path. This dual correction mechanism ensures high-level correction of spherical aberration and field curvature, delivering exceptional optical performance.

1937.03 $
Tax included

1574.82 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Vixen VMC200L

The VMC200L presents a distinctive 200mm 8-inch catadioptric optical system. Unlike traditional designs, it integrates a primary mirror and a meniscus corrector just ahead of a secondary mirror, effectively correcting light twice along the optical path. This dual correction mechanism ensures high-level correction of spherical aberration and field curvature, delivering exceptional optical performance.

Key to its design is the primary mirror's f/2.5 aperture, rendering the compound optical system at f/9.75. This configuration not only enhances optical performance but also facilitates a more compact and portable form factor compared to similar systems. By positioning the optical correction before the secondary mirror, the VMC200L sidesteps the need for a corrector plate, mitigating dewing issues inherent in closed optical tubes.

Another standout feature is its rack and pinion focusing mechanism, situated behind the primary mirror. This system eliminates the image shift commonly experienced with other SCT systems, ensuring stability and ease of adjustment, particularly critical for high-power magnification and astrophotography.



Included accessories

  • Finder scope: 7x50
  • Prism rail: Vixen-Style
  • Deviating optics: 1.25'' tilting mirror for 2 eyepieces
  • Miscellaneous: Carrying handle
  • Attention: Similar to illustration. (Supplied without eyepieces)



SPECIFICATIONS

Optics

Type: Reflector

Type of build: Maksutov

Aperture (mm): 200

Focal length (mm): 1950

Aperture ratio (f/): 9.8

Resolving capacity: 0.58

Limit value (mag): 13.3

Light gathering capacity: 820

Max. useful magnification: 400

Tube

Weight (kg): 6.8

Length (mm): 510

Diameter (mm): 232

Tube construction: Full tube

Focuser

Type of build: Gear rack

Connection (to eyepiece): 1.25"

Mount

Mounting type: No mount

GoTo control: No

Type of build: OTA

General

Series: Other

Special recommendation: Yes

Area of application

Moon & Planets: Yes

Nebulae & galaxies: Yes

Nature Observation: Yes

Astrophotography: Yes

Sun: Not recommended (Only with appropriate Sun filter)

Recommended for

Beginners: No

Advanced: Yes

Observatories: No
