Celestron Motor drive for EQ3-2 and Omni XLT mounts (CG-4)

This dual-axis motor drive, equipped with drive corrector functionalities, is tailored for Celestron's CG-4 mounts, enabling precise tracking in RA and movement in DEC. It meticulously regulates the telescope's tracking speed during prolonged, timed exposures of celestial subjects, ensuring optimal image sharpness. Precision drive correctors are indispensable for enthusiasts deeply engaged in astrophotography or CCD imaging.

233.92 $
Tax included

190.18 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

This dual-axis motor drive, equipped with drive corrector functionalities, is tailored for Celestron's CG-4 mounts, enabling precise tracking in RA and movement in DEC. It meticulously regulates the telescope's tracking speed during prolonged, timed exposures of celestial subjects, ensuring optimal image sharpness. Precision drive correctors are indispensable for enthusiasts deeply engaged in astrophotography or CCD imaging. It offers four selectable speeds: 1x (sidereal), 2x for guiding, 4x, and 8x for centering.

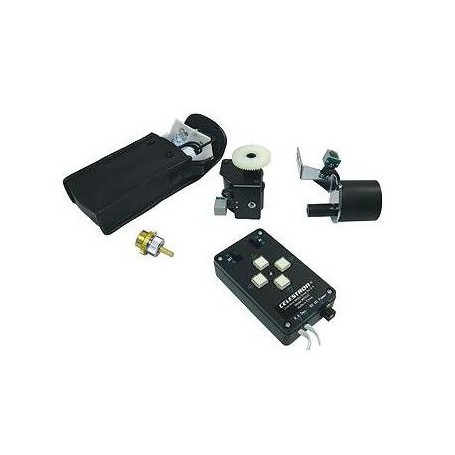

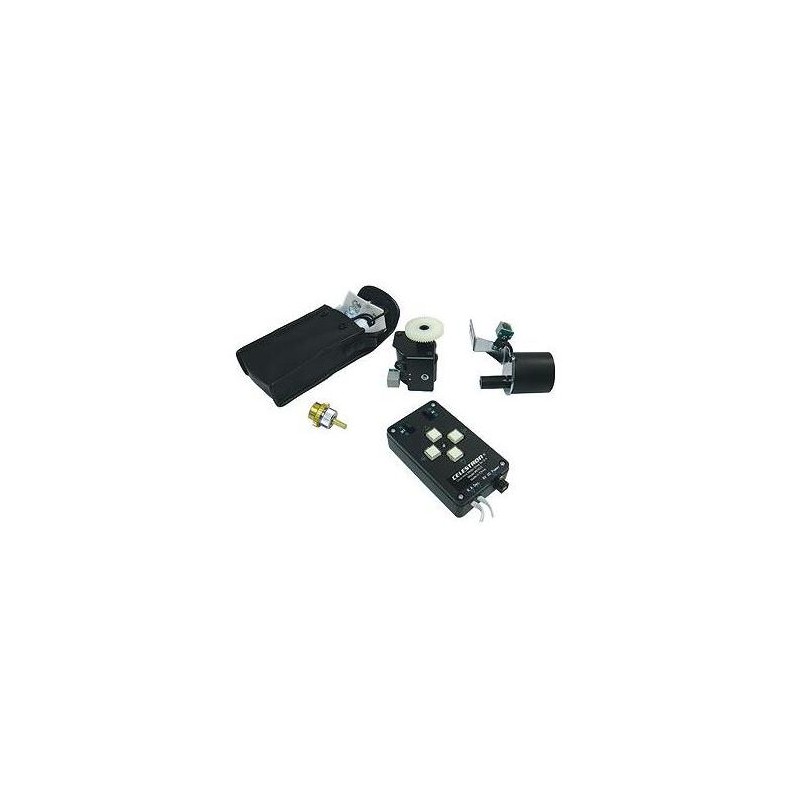

Operating on four D-cell batteries (not included), this precision DC motor drive boasts a compact hand controller module that effortlessly fits in your hand. It comes complete with motors for both axes, brackets, clutch, and necessary hardware.



SPECIFICATIONS

Capacity

Battery-powered: Yes

Battery Durability (hours): 40

Operating Temperature: 0-40°C

Appropriate for Mounting: EQ3-2, CG4

Power Supply: 6

Motor Speeds: 1, 2, 4, 8

Special Features

Autoguider Interface: -

Hand Controller: -

User Programmable: -

Tracking on DEC Axis: Yes

Tracking on RA Axis: Yes

PC Interface: -

PEC Correction: -

Switch Between Northern/Southern Hemispheres: Yes

General

Width (mm): -

Weight (g): -

Height (mm): -

Length (mm): -

Color: Black

Miscellaneous

Battery Type: Mono (D, LR20) (4 pieces)
