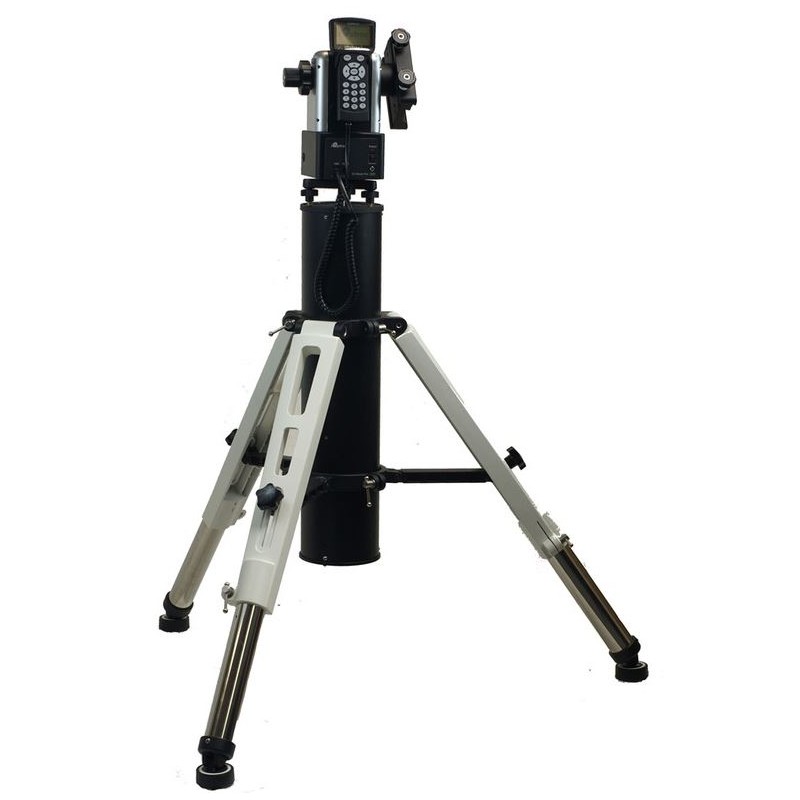

iOptron Mount AZ Pro GoTo Tri-Pier

Dubbed "level and go," this term encapsulates the straightforward setup process of iOptron's latest AZ Mount Pro. With its integrated precision level indicator, users simply ensure the mount is level and power it on; from there, this advanced computerized alt-azimuth telescope mount takes over.

2675.26 $
Tax included

2175.01 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Dubbed "level and go," this term encapsulates the straightforward setup process of iOptron's latest AZ Mount Pro. With its integrated precision level indicator, users simply ensure the mount is level and power it on; from there, this advanced computerized alt-azimuth telescope mount takes over. Leveraging its 32-channel GPS receiver and integrated position and angular detection sensors, the AZ Mount Pro accurately calculates its global position and telescope orientation. Automatically, the mount slews the telescope to a prominent celestial object visible in the night sky. Users merely confirm alignment with a bright object to activate tracking and GOTO functionality.

Key Features:

  • On-board rechargeable lithium-ion battery provides up to 10 hours of continuous use.
  • Primary payload capacity of 33 pounds and secondary payload capacity of 10 pounds, with the mount weighing only 13 pounds.
  • Whisper-quiet, low-power consumption stepper motors ensure smooth operation.
  • Go2Nova® 8407 hand controller boasts a vast 212,000+ object library and an illuminated 8-line LCD screen.
  • Zero backlash driver system guarantees precise tracking.
  • Built-in WIFI adapter allows for full ASCOM, iOptron CommanderTM, and Sky Safari wireless control.
  • Serial port enables computer control and firmware upgrades.
  • Retractable counterweight shaft for balanced adjustments.
  • Position memorization in case of power interruption.
  • Sturdy die-cast aluminum body construction.
  • 3-point easy level adjustment for quick setup.
  • 6-inch dual dovetail saddle compatible with Losmandy and Vixen styles.
  • Compact design standing just 10 inches tall (mount head only).
  • Includes a built-in 32-channel GPS receiver and automatic position and angular detection sensors.
  • Comes with an aluminum hard case for secure transportation.

The iOptron Tri-Pier offers the strength and stability of a pier combined with the leveling flexibility of a tripod:

Aluminum pier and leg tops.

Stainless steel leg extensions.

Tri-Pier feet feature built-in vibration suspension pads.



Specifications:

Capacity:

Max. Additional Load Capacity: 15 kilograms

Number of Counterweights: 1

Mounting Saddle: Compatible with Losmandy & Vixen styles

Motor Type: Stepper motors

Weight: 4500 grams

Power:

Battery-powered with a 10-hour battery life

Internal Li-Ion battery

Materials:

Worm Wheel: Aluminum

Worm Gear: Brass

Special Features:

GPS functionality

GoTo system

Hand controller included

PC interface via WIFI

ASCOM compatibility

Level adjustment feature

Accessory plate included

Includes power pack

Tripod and transport cases included

Tripod Specifications:

Material: Steel

Weight: 11.7 kilograms

Max. Height: 108 centimeters

Stand Column: Yes

General:

Total Weight: 23 kilograms

Series: AZ Pro

Type: Mount

Build Type: Azimuthal

GoTo Control: GPS-enabled

Precision: 0.002

Database: 212,000 objects

Software: Go2Nova 8407

GoTo Language: English
