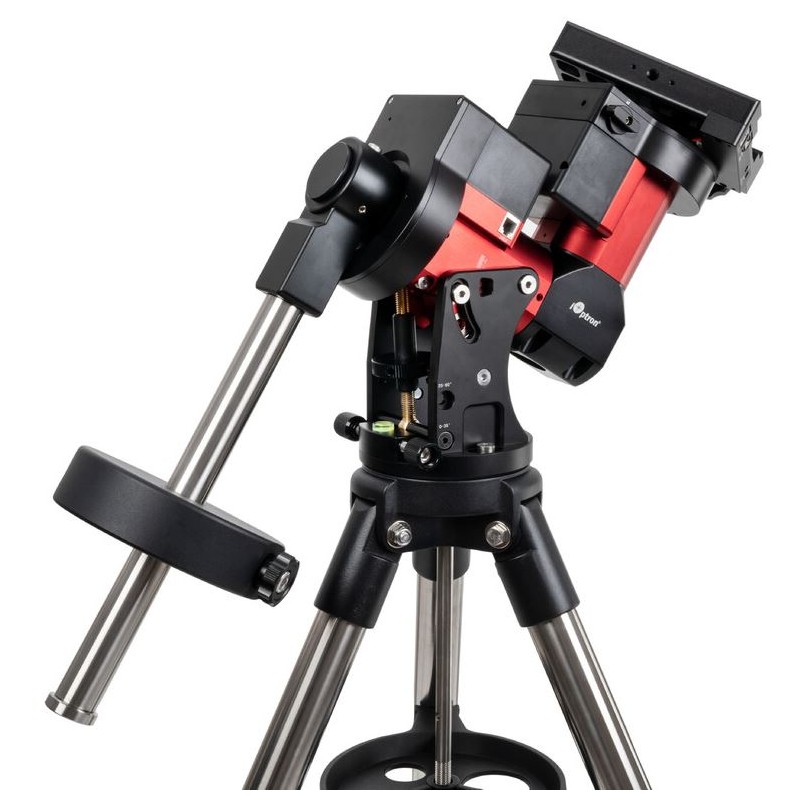

iOptron Mount CEM40 GoTo with Tripod

The CEM40 boasts an impressive payload capacity, supporting up to 18 kg while weighing just 8.2 kg itself. With a payload-to-weight ratio of 2.5, it's incredibly versatile, whether you're setting it up under a dark sky or in your backyard observatory with a small pier.

2700.03 $
Tax included

2195.15 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The CEM40 boasts an impressive payload capacity, supporting up to 18 kg while weighing just 8.2 kg itself. With a payload-to-weight ratio of 2.5, it's incredibly versatile, whether you're setting it up under a dark sky or in your backyard observatory with a small pier.

Here's why it stands out:

  • An integrated electronic polar finder scope (iPolar) ensures precise alignment, even when the pole star is hidden.
  • Large levers on its quick-lock drive engagement system make gear adjustments a breeze, even with gloves on.
  • Thanks to its internal cable management system, there's minimal risk of cables getting tangled or snagged during use.
  • It comes equipped with the new Universal Self-Centering Saddle, compatible with both Losmandy and Vixen style dovetails.
  • Despite its sleek CNC body, the mount is robust and built to last.

The GoTo technology features a Go2Nova 8407+ controller with integrated heater for its large display, a library of 212,000 objects, integrated 32-channel GPS, and an ST-4 auto guiding port.

Another standout feature is the ultra-quiet, low-power consumption stepper motor drive systems. Both models of the CEM40 are precise trackers, with the CEM40-EC version delivering <0.25 arcsecond accuracy thanks to its high-resolution encoder and real-time periodic error correction (RPEC).

Available in two versions, with or without encoders, the mount tracks your optics precisely in the night sky. The variant with high-resolution encoders (EC) on both axes achieves an accuracy of less than 0.25 angular seconds and corrects the periodic screw error in real time, eliminating the need for guiding in astrophotography.



Specifications:

Max. additional load capacity: 18 kg

Interfaces: USB

Polar elevation setting: 0 - 60 degrees

Mounting saddle: Losmandy & Vixen

Material of worm wheel: Aluminium

Material of worm gear: Brass

Special features: GoTo system, hand controller, level

Equipment: Tripod, pole finder, power pack

Tripod leg diameter: 38mm

Tripod material: Steel

Series: CEM

Type: Equatorial mount

GoTo control precision: +/- 7

GPS: Yes

WiFi: Optional

PEC correction: Yes

Polar Alignment: iPolar

GoTo Language: English

Software: Go2Nova 8407

Autoguiding: Yes

Interfaces: Autoguider, USB

Database: 212,000 objects
