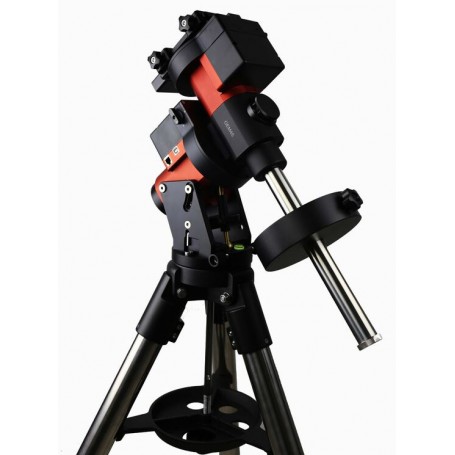

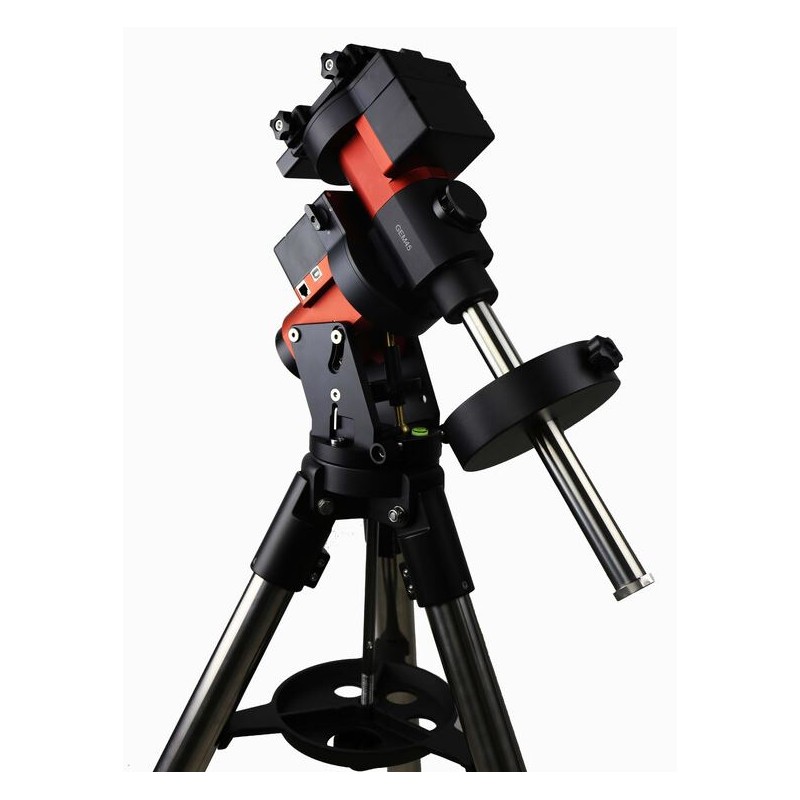

iOptron Mount GEM45 GoTo LiteRoc with Hardcase

With innovative advancements fused into a classic framework, iOptron® presents the GEM45, the next evolution in German equatorial mounts. Its striking CNC body signifies top-tier quality, blending elegance with functionality.

3443.16 $
Tax included

2799.32 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

With innovative advancements fused into a classic framework, iOptron® presents the GEM45, the next evolution in German equatorial mounts. Its striking CNC body signifies top-tier quality, blending elegance with functionality.

Leveraging insights from the development of the CEM series, iOptron has trimmed unnecessary bulk, endowing the GEM45 with an astounding 2.8 payload to mount weight ratio. Weighing just 15.8 lbs, this compact mount adeptly executes precise GOTO commands and effortlessly tracks with up to 45 lbs of gear onboard.

Equipped with an integrated electronic polar scope (iPolar), polar alignment becomes a breeze, even in the absence of the pole star. Large levers on the quick-lock drive engagement system facilitate seamless gear engagement, even with gloved hands. The GEM45's internal advanced cable management system minimizes the risk of cable snags.

Featuring the patent-pending Universal Self-Centering Saddle (USCS), the GEM45 accommodates both Losmandy and Vixen style dovetail plates. Utilizing reliable stepper motor drive systems with low power consumption technology ensures consistent performance.

Boasting a vast 212,000+ object library with star identification, GPS, and optional Wi-Fi compatibility (requires iStarFi adapter), the GEM45 offers unparalleled functionality.

Complementing the GEM45 is the newly developed iOptron LiteRoc tripod, meticulously engineered to be lightweight yet sturdy. Featuring sturdier extending legs and enhanced locking mechanisms, the LiteRoc tripod provides stability without compromising portability.



Specifications:

Capacity:

Max. additional load capacity: 20 kg

Counterweight(s): 1 (5 kg)

Polar elevation setting: 14° - 68°

Mounting saddle: Losmandy & Vixen

DEC ball bearings diameter: 68 mm

RA ball bearings diameter: 68 mm

DEC worm gear diameter: 110 mm

RA worm gear diameter: 110 mm

Worm gear teeth (DEC): 216

Worm gear teeth (RA): 216

DEC worm shaft diameter: 17 mm

RA worm shaft diameter: 17 mm

RA axis diameter: 45 mm

DEC axis diameter: 45 mm

Diameter of counterweight bar: 28 mm

Material of worm gear: Brass

Material of worm wheel: Aluminium

Long counterweight rod: 280 mm

Weight mount head only: 7.2 kg

Slow-motion azimuth adjustment: +/- 6°

Input voltage: 12 V

Amperage: 5 A

Motor type: Stepper motors (1.8°/128 micro-steps)

Cable-guide: internal

Special Features:

GoTo system: Yes

Hand controller: Yes

Level: Yes

Equipment:

Tripod: Steel, tripod leg diameter: 45 mm

Transport cases: Yes

Pole finder: Yes

General:

Series: GEM

Type: Mount

Type of build: Equatorial

GoTo control precision: +/- 7

GPS: Yes

WIFI: Optional

PEC correction: Yes

Polar Alignment: iPolar

GoTo Language: English

Software: Go2Nova 8407

Autoguiding: Yes

Interfaces: Autoguider, USB

Database: 212,000
