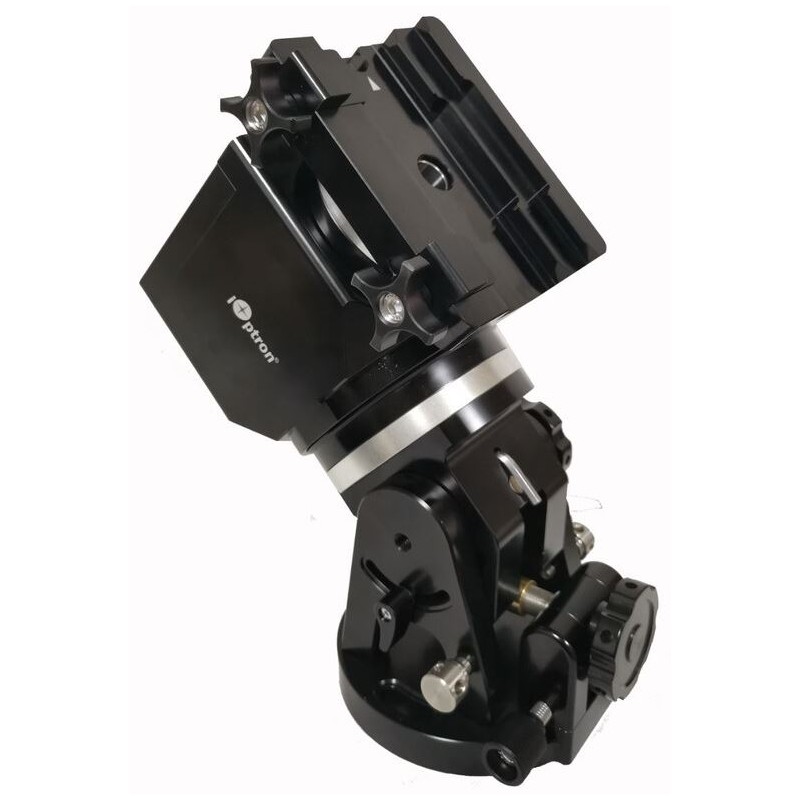

iOptron Mount HAE43 Strain Wave AZ/EQ

The HAE43 by iOptron offers a versatile dual mount system, allowing you to switch between azimuthal and equatorial modes. Despite its lightweight design, it boasts a high load capacity. With GoTo functionality and a database of 212,000 objects, it's equipped for advanced sky exploration.

Key Features:

• Dual AZ and EQ mount for flexible operation
• Lightweight yet high load capacity
• GoTo function with extensive object database
• External cable management for convenience

The HAE43 is a compact and portable mount that supports loads of up to 20kg without counterweights, or up to 25kg with a counterweight (sold separately). It features iOptron's renowned Go2Nova® technology, providing access to a vast database of celestial objects. Additionally, it offers ASCOM compatibility and integrated WiFi for convenient control via tablet or smartphone using popular apps like SkySafari, Raspberry Pi, or INDI. The mount's dual Vixen/Losmandy head ensures compatibility with a variety of telescopes, while its robust construction guarantees stability even with medium-sized instruments.

Specifications:

Capacity:

Max. additional load capacity: 20 kg

Interfaces: WiFi, USB & HC

Mounting saddle: Losmandy & Vixen

Weight mount head only: 5.8 kg

Input voltage: 12 V

Amperage: 5 A

Cable-guide: external

Encodery: No

Dec. axis material: Aluminium

RA axis material: Aluminium

Motor type: Stepper motors

Drive type: Harmonic / Strainwave

Special Features:

GoTo system: Yes

Hand controller: Yes

Level: Yes

Equipment:

Tripod: Without tripod

Carry case: Yes

Pole finder: Yes

Other contents: Power pack

Counterweights: 0

General:

Series: HAE

Type: Mount

GoTo control: GPS, WiFi

PEC correction: No

Polar Alignment: Easy Polar Alignment

GoTo Language: English

Software: Go2Nova 8409

Autoguiding: Yes

Interfaces: AutoGuider, Aux, RS232

Database: 212,000
