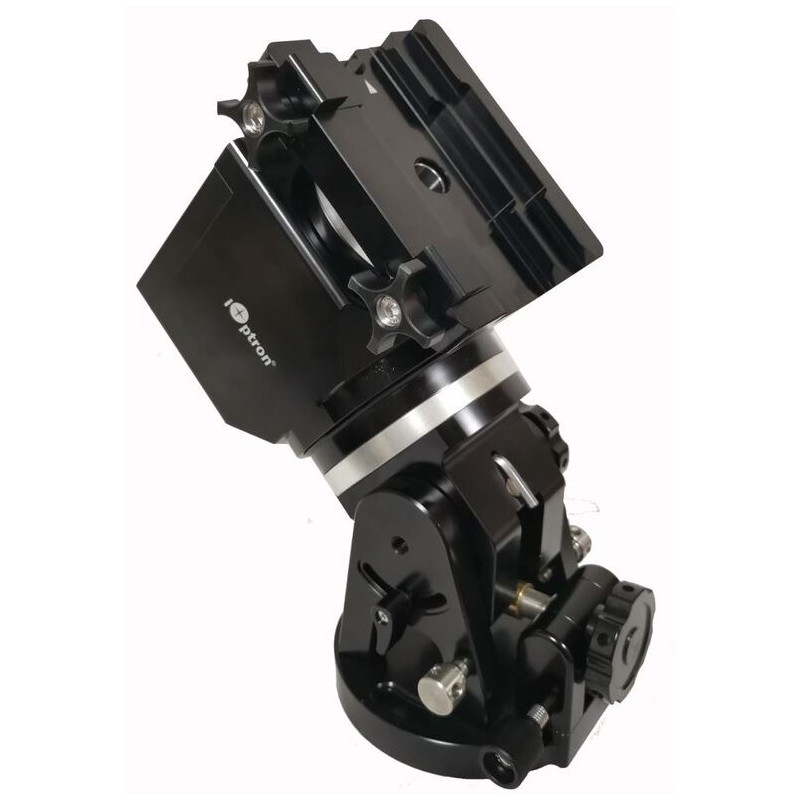

iOptron Mount HAE43 Strain Wave AZ/EQ iPolar

The iOptron HAE43 offers a compact and portable dual mount solution, allowing you to switch between azimuthal and equatorial modes. With a load capacity of up to 20kg without counterweights or up to 25kg with a counterweight (sold separately), it provides versatility for various setups.

3443.16 $
Tax included

2799.32 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

In summary:

  • Dual AZ and EQ mount for versatile operation
  • Lightweight design with high load capacity
  • GoTo function with a database of 212,000 objects
  • External cable management for organization
  • Integrated iPolar for easy and precise polar alignment

The iOptron HAE43 offers a compact and portable dual mount solution, allowing you to switch between azimuthal and equatorial modes. With a load capacity of up to 20kg without counterweights or up to 25kg with a counterweight (sold separately), it provides versatility for various setups. Utilizing iOptron's Go2Nova® technology, it offers a vast database of celestial objects, ASCOM compatibility, and integrated WiFi for convenient control via tablet or smartphone. The sturdy construction and dual Vixen/Losmandy head accommodate medium-sized telescopes with ease.

Key Features:

  • iPolar for automatic and precise polar alignment
  • Built-in "Electronic Friction Brake" for added safety
  • Includes mains adapter and robust carry case
  • Optional tripod and extension tube available separately



Specifications:

Capacity:

Max. additional load capacity: 20kg

Interfaces: WiFi, USB & HC

Mounting saddle: Losmandy & Vixen

Weight mount head only: 5.8kg

Input voltage: 12V

Amperage: 5A

Cable-guide: external

Encodery: No

Dec. axis material: Aluminium

RA axis material: Aluminium

Motor type: Stepper motors

Drive type: Harmonic / Strainwave

Special Features:

GoTo system: Yes

Hand controller: Yes

Level: Yes

Equipment:

Tripod: Without tripod

Transport cases: Yes

Pole finder: Yes

Other contents: Power pack

Counterweights: 0 (optional)

General:

Series: HAE

Type: Mount

GoTo control: GPS, WiFi

PEC correction: No

Polar Alignment: iPolar

GoTo Language: English

Software: Go2Nova 8409

Autoguiding: Yes

Interfaces: AutoGuider, Aux, RS232

Database: 212,000
