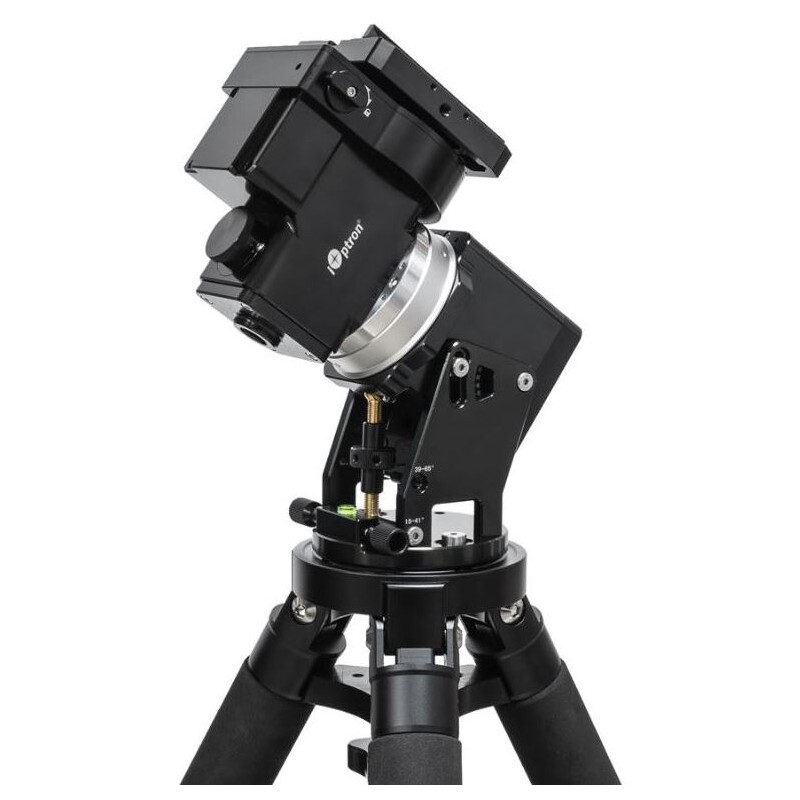

iOptron Mount HEM27 iPolar

• Harmonic drive technology
• Load capacity of up to 13.5kg with a mount weight of only 3.7kg
• Tried-and-tested iOptron Go2Nova software with hand controller and a database containing 212,000 objects
• Cable management prevents tangling
• Dual Vixen & Losmandy mounting saddle
• Automatic stopping in the event of unexpected power interruption
• Exceptional tracking, even without guiding

The iOptron HEM27 mounts offer the excellent features of a "large" equatorial mount and, thanks to Harmonic Drive technology, can be used without the need for counterweights or a counterweight shaft. Despite its lightweight design of only 3.7kg, it can support a maximum load of up to 13.5kg. This provides HEM mounts with an exceptional weight-to-load ratio, alongside remarkable features such as permanent periodic error correction (PEC), automatic mount stopping during power outages with seamless restart capability, precise tracking even without guiding, internal cable management, and a dual prism clamp for Vixen and Losmandy rails. Crafted from high-quality CNC machined and anodized materials, these mounts also feature the tried-and-tested iOptron Go2Nova 8409 software, built-in WiFi, and iOptron’s exceptionally quiet drive.

SPECIFICATIONS:

Capacity:

Max. additional load capacity (kg): 13.5

Counterweights:

Number of pieces: None

Interfaces:

USB & ST4 cable

Language: English

Polar Elevation Setting (°): 15 - 65

Mounting Saddle: Losmandy & Vixen

Weight (Mount Head Only): 3.7kg

Slow-Motion Azimuth Adjustment (°): +/- 5

Power:

Input Voltage: 12V

Amperage (A): 5

Cable Guide: Internal

Encoders: No

Material:

Declination Axis: Aluminium

Right Ascension Axis: Aluminium

Drive Type: Harmonic / Strainwave

Special Features:

GoTo System: Yes

Hand Controller: Yes

Level: Yes

Equipment:

Tripod: Without Tripod

Pole Finder: Yes

Other Contents: Power Pack, Carry Case

General:

Series: HEM

Type: Mount

Type of Build: Equatorial

GoTo Control:

GPS: No

WiFi: Yes

PEC Correction: Yes

Polar Alignment: iPolar

GoTo Language: English

Software: Go2Nova 8409

Autoguiding: Yes

Interfaces: Autoguider, USB

Database: 212,000
