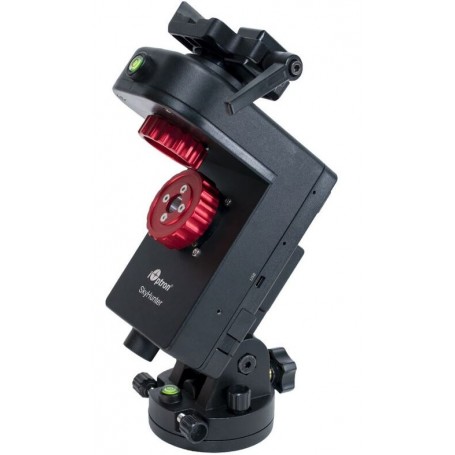

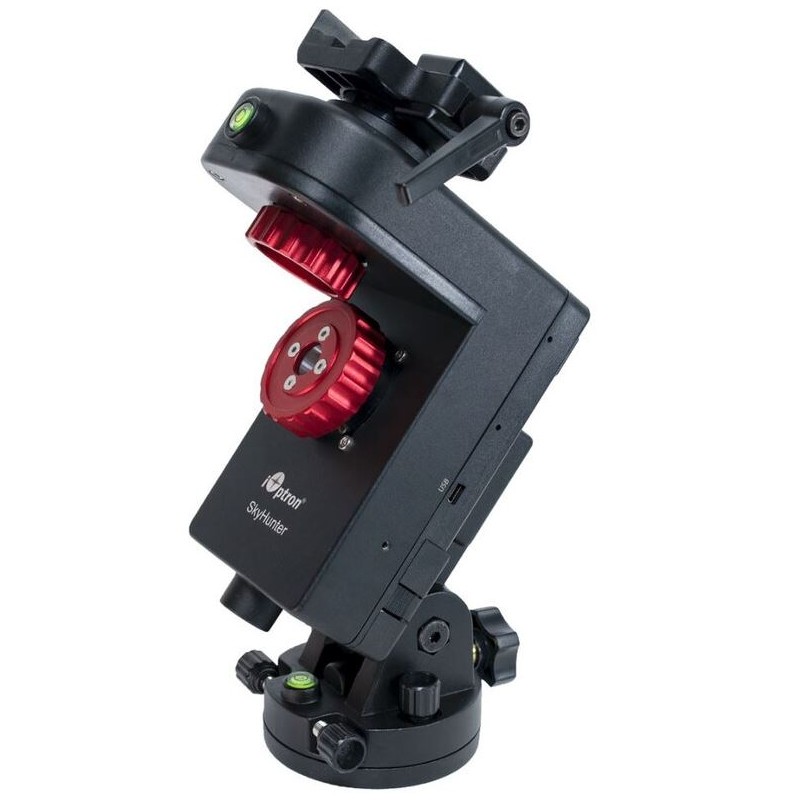

iOptron Mount SkyHunter EQ/AZ GoTo

• Compact and lightweight design, perfect for travel
• Load capacity up to 5kg, suitable for small apochromats like the William Optics RedCat or Sky-Watcher Evolux
• Integrated battery with external power option
• Compatible with photo tripods
• Equipped with servomotors featuring optical encoders

iOptron's SkyHunter mounts represent a significant advancement from the traditional "cube" mounts, setting a new standard for portable camera mounts. They combine lightweight, compact construction with advanced technology.

Available in three versions, the SkyHunter mounts offer full smartphone or tablet control via iOS or Android apps. They also support ASCOM and INDI. Utilizing the built-in WiFi adapter, the mounts can be controlled via ASCOM, iOptron Commander, or Sky Safari. Additionally, the mounts can be mounted on any camera tripod with a 3/8 connection.

Featuring built-in optical encoders and four tracking modes, the SkyHunter mounts ensure precise tracking in both the northern and southern hemispheres.

Specifications:

Load Capacity: Up to 5kg

Polar Elevation Setting: 0 - 80 degrees

RA Worm Gear Teeth: 144

Motor Type: Servomotors

Axle Bearings: Ball bearings

Battery Powered: Yes

Battery Durability: 10 hours

Battery Type: Lithium-Poly 3.7V

Power Supply: 5V

Operating Temperature: -10°C to +40°C

Slow-motion Azimuth Adjustment: +/- 5 degrees

Counterweight Bar Diameter: 20mm

Long Counterweight Rod: 200mm

Counterweights: 1 (1.35kg)

Connection: 3/8

Tracking Speeds: Solar, Lunar, Sidereal

Tracking Modes: Equatorial

Autoguider: Yes

Special Features: RA and DEC Axis Tracking, Leveling Capability

Equipment: Power Pack, Pier Extension

Color: Black-Red

Series: SkyHunter

Overall Size (LxWxH): 30 x 25.5 x 12.5 cm

Weight: 4000g

Type: Mount

Build Type: Equatorial
