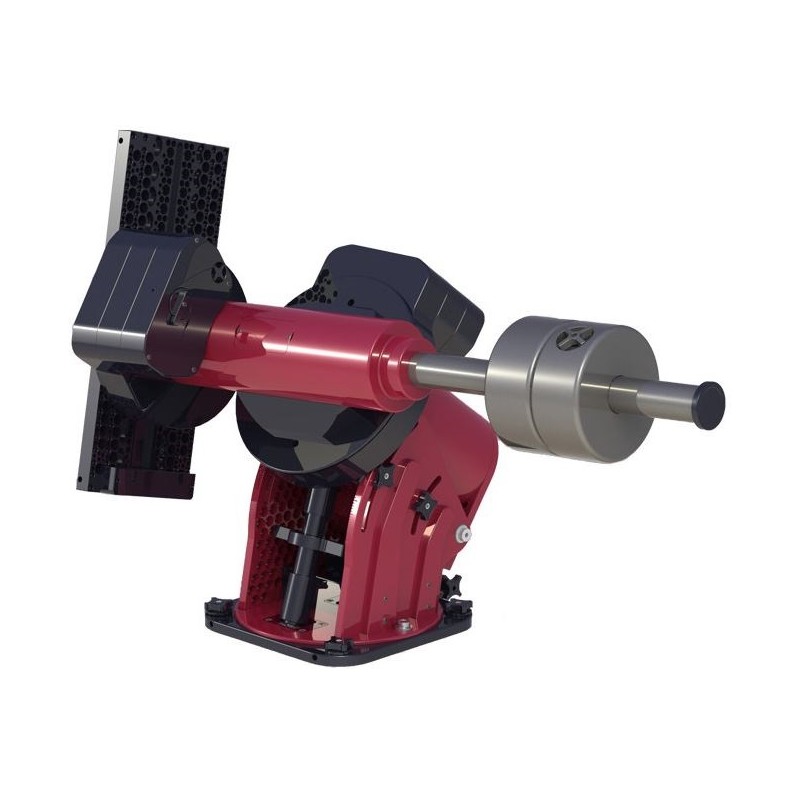

Software Bisque Paramount ME II (Motor Based EC)

The Paramount ME II represents a significant upgrade from the original Paramount ME mount, boasting enhanced load capacity and improved performance.

24903.95 $
Tax included

20247.11 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Paramount ME II represents a significant upgrade from the original Paramount ME mount, boasting enhanced load capacity and improved performance.

Originally, the Paramount ME mounts revolutionized remote observation for amateur astronomers by being the first affordable option equipped with cables looped through the RA axis and advanced remote control software.

The Paramount ME II Features:

Weighs 38 kilograms for the coordinate axes, yet supports telescopes with a total weight of up to 109 kilograms, depending on the device's length.

Features internal cabling through the polar axis, enhancing space for additional accessories.

Exhibits a maximum periodic error of 7 arcseconds (peak-to-peak), which can be further reduced with PEC correction via control software.

Delivers average positioning accuracy of 30 arc seconds, supported by Tpoint software.

Utilizes belt-driven axle drives to ensure both axes are completely backlash-free.

Allows for positioning and tracking up to three hours past the meridian (45°).

Includes a calibrated polar alignment adjustment device and internal cable routing to accommodate extra cables.

Designed without a friction clutch to maintain a permanent T-point model, yielding consistent, high-quality positioning accuracy better than 30 arcseconds.



Included Software:

  • TheSkyX Professional Edition
  • TPoint Add On
  • Camera Add On
  • Multi-OS and Six License Add On for both Mac and Windows



Specifications:

Maximum Additional Load Capacity: 109 kg

Counterweights: 2 x 14kg

Mounting Saddle: Losmandy-Style

DEC and RA Axis Diameter: 76.2 mm each

RA and DEC Worm Shaft Diameter: 25.4 mm each

RA Worm Gear Diameter: 290 mm

DEC Worm Gear Diameter: 241 mm

Encoder: Yes

Special Features:

PEC Correction: Yes

GoTo System: Yes

PC Controllable: Yes

PC Interface: 2x USB

Equipment:

Tripod: Not included

General:

Series: Paramount M

Total Weight: 38 kg

Type: Mount

Construction: Equatorial
