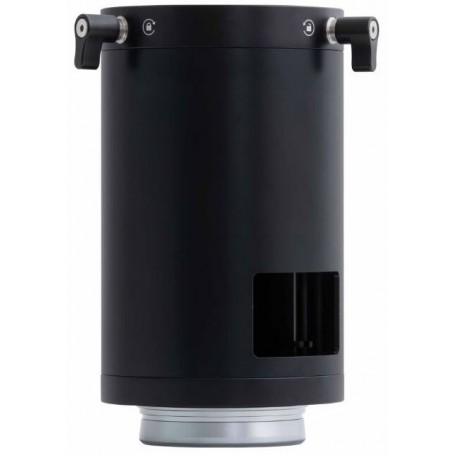

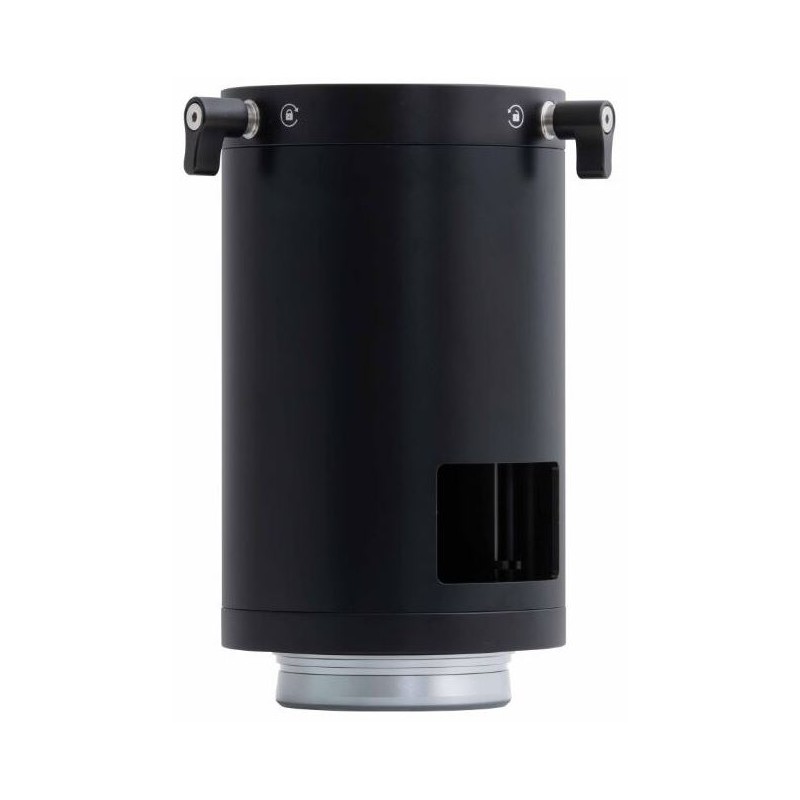

ZWO PE200 column extension

The ZWO PE200 is a dedicated pier extension designed specifically for the ZWO AM5 mount. This extension is highly recommended for astrophotography setups where there is a potential for collision between the optical tube or the counterweight arm and the tripod due to their lengths.

Constructed from aircraft-grade aluminum alloy and featuring an openwork design, the PE200 combines low weight with a high load-bearing capacity, capable of supporting up to 50 kilograms. Its modular structure allows for easy transformation into an openwork extension with a height of 160 mm by replacing the cylindrical part with the optional ZWO-PILLAR160 brackets. When configured this way, the load capacity remains consistent with that of the PE160 extension.

Key Features of the ZWO PE200 Mounting Extension for the ZWO AM5:

Supports a maximum load of 50 kg

Made from CNC-machined aircraft aluminum alloy

Simple assembly and disassembly

Can be converted to a 160 mm openwork extension

Compatible with various tripod models

Included in the Set:

• PE200 Mounting Extension for ZWO AM3 / AM5
• M6x25 screws (2 pieces)
• Mounting plate for Sky-Watcher tripods

Technical Specifications:

Mount Compatibility: ZWO AM5

Tripod Compatibility: ZWO TC40, iOptron 1.75" (steel), Sky-Watcher 1.75", Celestron Advanced VX 2"

Maximum Load Capacity: 50 kg

Material: Aluminum

Finish: Matte black

Diameter: 124 mm

Height: 200 mm

Weight: 1.6 kg

Warranty:

24 months
