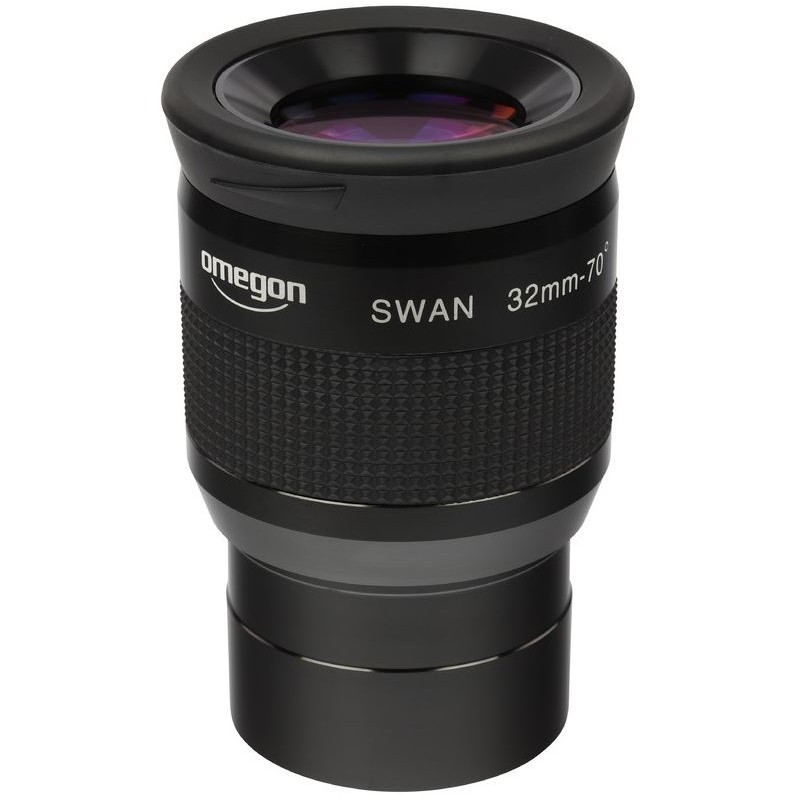

Omegon SWA 32mm, 2'' eyepiece

Renowned for their exceptionally broad apparent fields of view, super wide-angle (SWA) eyepieces have always been esteemed for providing an immersive experience akin to a spacewalk.

172.02 $
Tax included

139.85 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Omegon SWA series sets a new standard in super wide-angle eyepieces.

Renowned for their exceptionally broad apparent fields of view, super wide-angle (SWA) eyepieces have always been esteemed for providing an immersive experience akin to a spacewalk.

Enhanced Performance for Fast Telescopes

The latest Omegon SWA eyepieces feature a revamped design and internal structure, a significant improvement over their predecessors. Equipped with enhanced rubber armor for better grip and redesigned eyecups for increased comfort, these eyepieces offer both convenience and superior observing experience.

Optical Precision

With five glass elements arranged into three or four groups depending on the focal length, Omegon SWA eyepieces deliver a generous 70° apparent field of view with excellent edge definition and minimal distortion. Designed to work seamlessly with relatively fast, short-focus systems, they provide an immersive viewing experience without requiring constant adjustment.

Advanced Coating Technology

The new wide-band multi-coating enhances light transmission, resulting in brighter, clearer images. Blackened lens edges and an effective internal baffle system minimize scattered light, ensuring high-contrast views with reduced reflections.

Wide Selection of 2" and 1.25" Eyepieces

The Omegon SWA series offers six eyepieces: 38mm, 32mm, 26mm, 20mm, 15mm, and 10mm. The 38mm, 32mm, and 26mm variants feature 2" barrels, making them ideal for deep-sky observation and providing expansive true fields of view. The shorter focal lengths (20mm, 15mm, and 10mm) come with 1.25” barrels. All eyepieces in this series are parfocal, eliminating the need for frequent refocusing when switching between them.

Customizable Viewing Experience

Featuring a newly designed steplessly adjustable eyecup, users can precisely adjust the viewing distance as needed for optimal comfort, catering to both spectacle and non-spectacle wearers.

Key Advantages:

  • 70° apparent field of view
  • Five elements arranged in three or four groups
  • Blackened lens edges and an effective baffle system for high-contrast images
  • Full wide-band multi-coating for enhanced light transmission
  • Parfocal within the series for seamless transitions
  • Steplessly adjustable eyecups



SPECIFICATIONS

Capacity

Focal length (mm): 32

Connection (to the telescope): 2"

Apparent field of view (°): 70

Number of lenses: 5

Coating of optical system: Multiple

Eye relief (mm): 25

Special features

Adjustable eyepiece cup: Yes

Homofocal: Yes

Filter thread: Yes

Inert gas charge: No

General

Series: SWA

Weight (g): 420

Type: Eyepiece

Type of build: SWA

Data sheet

NKU318RKAQ
