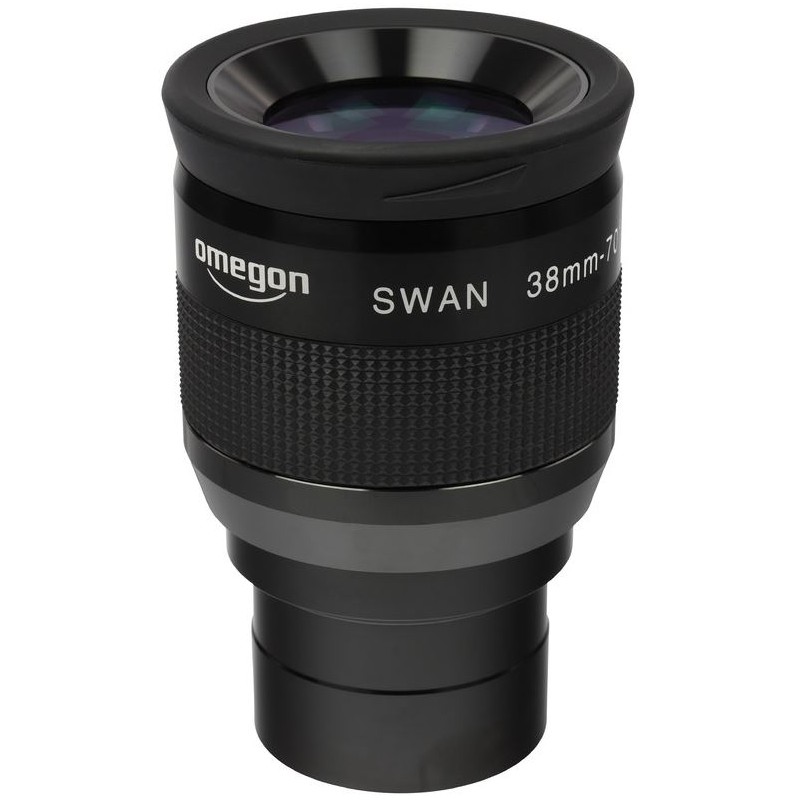

Omegon SWA 38mm eyepiece, 2''

These eyepieces have long been esteemed for their exceptionally wide apparent fields of view, offering an immersive experience akin to a spacewalk.

194.45 $
Tax included

158.09 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Omegon SWA series introduces a new era in super wide-angle eyepieces.

These eyepieces have long been esteemed for their exceptionally wide apparent fields of view, offering an immersive experience akin to a spacewalk.

Designed for Powerful Telescopes

The latest Omegon SWA eyepieces feature a redesigned look and internal structure, setting them apart from their predecessors. They now boast enhanced rubber armor for improved grip and new eyecups that not only enhance convenience but also elevate the observing experience.

Optical Precision

Equipped with five glass elements arranged into three or four groups (depending on the focal length), Omegon SWA eyepieces provide a generous 70° apparent field of view with superior edge definition and minimal distortion. They are compatible with relatively fast, short-focus systems, delivering immersive views without the need for constant adjustment.

Advanced Coating Technology

A new wide-band multi-coating enhances light transmission, resulting in brighter, clearer images. Blackened lens edges and an effective internal baffle system minimize scattered light, ensuring high-contrast views with reduced reflections.

Wide Selection of 2" and 1.25" Eyepieces

The Omegon SWA series comprises six eyepieces: 38mm, 32mm, 26mm, 20mm, 15mm, and 10mm. The 38mm, 32mm, and 26mm variants feature 2" barrels, making them ideal for deep-sky observation and providing expansive true fields of view. The shorter focal lengths (20mm, 15mm, and 10mm) come with 1.25” barrels. All eyepieces in this series are parfocal, eliminating the need for frequent refocusing when switching between them.

Customizable Viewing Experience

Featuring a newly designed steplessly adjustable eyecup, users can precisely adjust the viewing distance as needed for optimal comfort, catering to both spectacle and non-spectacle wearers.

Key Advantages:

  • 70° apparent field of view
  • Five elements arranged in three or four groups
  • Blackened lens edges and an effective baffle system for high-contrast images
  • Full wide-band multi-coating for enhanced light transmission
  • Parfocal within the series for seamless transitions
  • Steplessly adjustable eyecups



SPECIFICATIONS

Capacity

Focal length (mm): 38

Connection (to the telescope): 2"

Apparent field of view (°): 70

Number of lenses: 5

Coating of optical system: Multiple

Special features

Adjustable eyepiece cup: Yes

Homofocal: Yes

Filter thread: Yes

Inert gas charge: No

General

Series: SWA

Type: Eyepiece

Type of build: SWA

Data sheet

OE7F5S316Z
