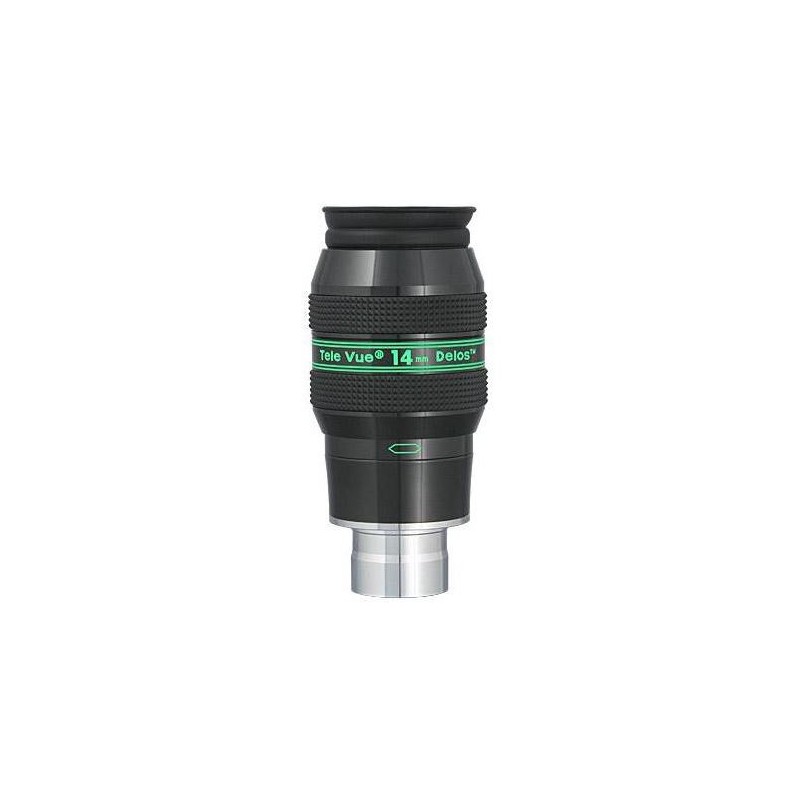

TeleVue Delos 1.25", 14mm eyepiece

Introducing a line of mid-to-short focal length eyepieces boasting a comfortable 20mm eye relief and an expansive 72° apparent field of view. Each facet, be it optical, mechanical, or ergonomic, has been meticulously reimagined to achieve a benchmark standard of performance across all visual applications.

656.91 $
Tax included

534.07 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Introducing a line of mid-to-short focal length eyepieces boasting a comfortable 20mm eye relief and an expansive 72° apparent field of view. Each facet, be it optical, mechanical, or ergonomic, has been meticulously reimagined to achieve a benchmark standard of performance across all visual applications.

The Delos series was conceptualized as a refinement of the broader field Ethos line. By narrowing the field to 72°, we gained the flexibility to enhance eye relief while effectively managing pupil aberrations, all without compromising on size. Building upon the performance standards set by Ethos, the Delos design ensures unparalleled sharpness across the entire field, precise distortion correction, and impeccable color neutrality. This is achieved through the integration of glass-matched multi-coatings and anti-reflection surfaces throughout the eyepiece.

Further enhancing contrast is our newly introduced continuously adjustable height eyeguard system, capable of locking into any desired position. With the generous 35mm diameter of the eye-lens, preventing stray light reflections and minimizing extraneous light significantly boosts perceived contrast. The sliding action of the eyeguard enables precise positioning of the soft rubber eyeguard to cater to individual observer preferences. Convenient indicator marks on the eyepiece body provide reference points for achieving the perfect positioning. Additionally, the eyeguard is designed to rotate for users of Dioptrx.



SPECIFICATIONS

Focal Length (mm): 14

Apparent Field of View (°): 72

Eye Relief (mm): 20

Coating of Optical System: Multi-coated

Connection (to the telescope): 1.25"

Special Features: Inert Gas Charge: No

General: Series: Delos, Weight (g): 440, Type: Eyepiece, Build Type: UWA
