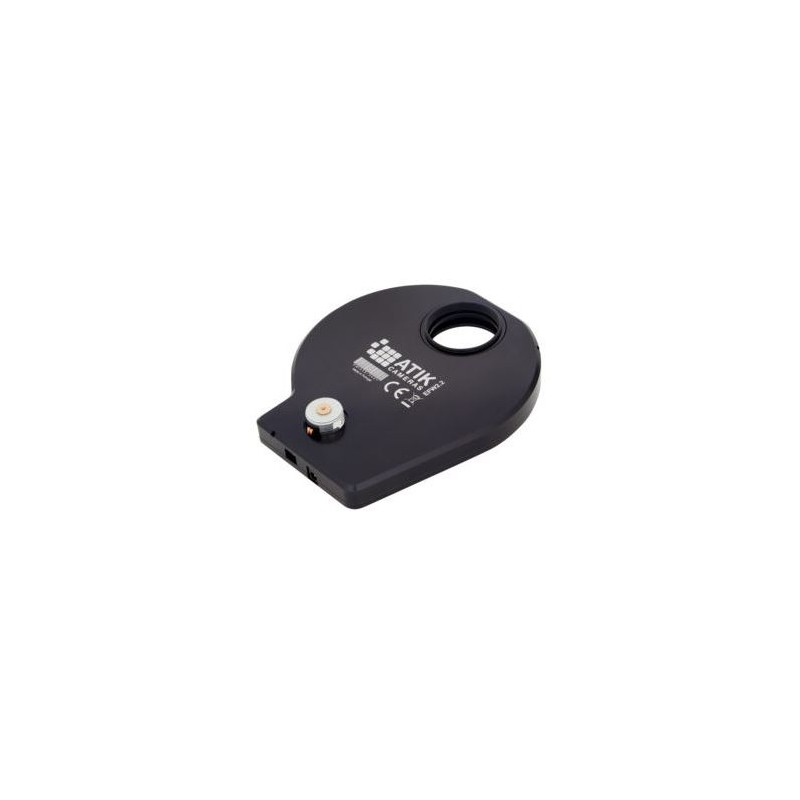

Atik Electronic Filter Wheel EFW2.2 5x2"

An improvement over its predecessor, the Atik EFW2.2 boasts a new mechanical indexing system for filter positioning, ensuring consistent alignment for flat field framing. This precision is crucial for maintaining uniform optical characteristics across flat field frames, crucial for accurate dust removal and handling.

757.11 $
Tax included

615.54 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Electronic Filter Wheel for Adding Color to Your Images

An improvement over its predecessor, the Atik EFW2.2 boasts a new mechanical indexing system for filter positioning, ensuring consistent alignment for flat field framing. This precision is crucial for maintaining uniform optical characteristics across flat field frames, crucial for accurate dust removal and handling.

Featuring a sleek design, the EFW2.2 sports a slim and lightweight profile. Notably, the distance between any Atik camera and the wheel is minimized to 0mm while still allowing rotational flexibility for the camera.

The additional backfocus required to accommodate the EFW2.2 is only 22mm. Particularly noteworthy for Atik 383L+ users is the short distance from filters to the CCD, enabling the use of popular 1.25" filters with this sensor down to f/5 without significant vignetting.

Filter disk options include 5x50.8mm, 5x2” mounted, 7x36mm, and 9x1.25” mounted. The EFW2.2 comes with an ASCOM-compliant driver for compatibility with any compliant software. Additionally, it can be easily controlled using Atik's Artemis Capture software, offering straightforward and efficient operation.

The EFW2.2 is supplied with your choice of carousel, and separate carousels are available for users who wish to switch between them.



What's Included:

  • EFW2.2 body with your selected filter disk
  • 2" adapter
  • Hex key kit
  • Screws, plastic washers, and o-rings (with specific disk options)
  • 3-meter USB cable
  • 1.8-meter battery power connector
  • CD-ROM with drivers, software, and Manuals (PDF)
  • User's Manual (paper)

Please note: When using the 2" model of the EFW2.2 with the Atik 16200, an additional ATK 0081 M54 adaptor is required to connect the wheel to the camera.



SPECIFICATIONS

Capacity:

Interfaces: Mini USB

Power Supply: 12V

Power Consumption (mA): 300

Supported Operating Systems: Windows 10/Vista/Win7/Win8 (not RT)

Connection (to the telescope): 2"

Connector (at camera end): 2"

Optical Length (mm): 22

Filter Slot: 2"

Max. Number of Filter Slots: 5

Equipment:

Motor-Powered: Yes

General:

Series: EFW2.2

Weight (g): 500

Type: Filters

Type of Build: Filter Wheel
