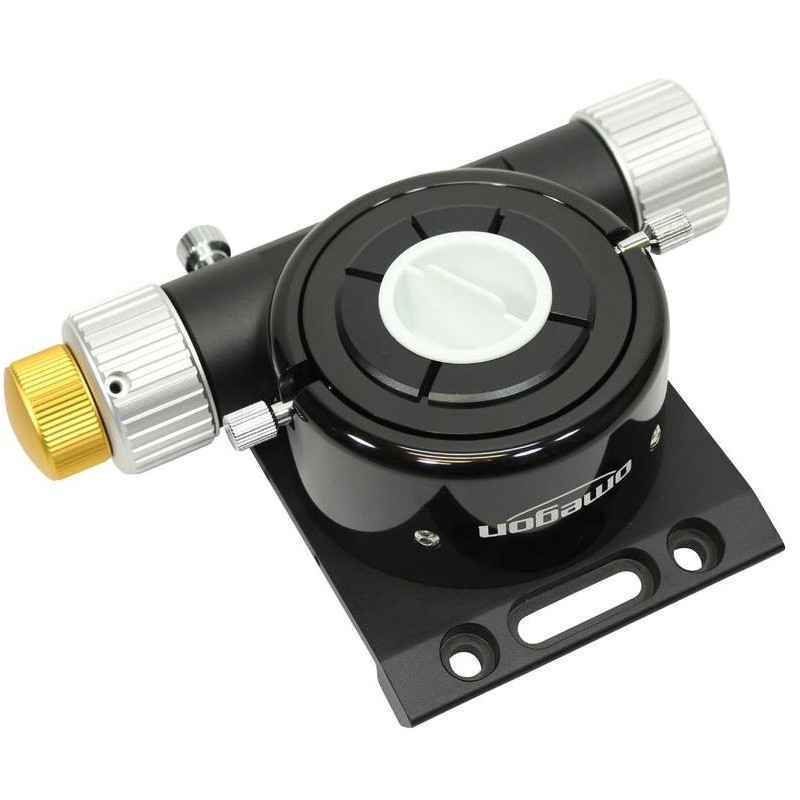

Omegon 2" Newton Hybrid Crayford focuser, dual speed

Crayford: Sleek and Precise Focusing Solution

Experience flawless focusing with the Omegon 2-inch Newtonian focuser, featuring an exceptionally low-profile design that eradicates common focusing challenges.

Seamless Operation

Rotating the focus ring reveals the satin-smooth inner focusing tube with zero play. Adorned with an elegant black anodized exterior, the focuser's interior boasts a matte black coating with machined grooves, minimizing unwanted reflections.

Improved Crayford Design

Introducing the Tiger Crayford, enhanced with a 'Bearing Type' design featuring roller ball bearings. This advancement ensures backlash-free focusing, with eight large rollers maintaining precise positioning and smooth adjustments. A supplementary rack-and-pinion mechanism secures the focuser in place, preventing unintended shifts.

Fine-Tuned Focusing

Benefit from a 1:11 reduction ratio courtesy of an additional planetary gear, enabling delicate adjustments in the 1/10 millimeter range for effortless focusing on astronomical subjects.

High Load Capacity

With a robust load-bearing capacity of up to 8kg, the Omegon Crayford focuser accommodates various heavy accessories, including SLR cameras, large CCD cameras, Off-Axis guiders, and substantial 2-inch eyepieces.

Astrophotography Ready

Lock focus securely for astrophotography sessions using the lock-screw mechanism, ensuring the focus remains unchanged throughout your imaging sessions. Unlike traditional designs, this lock-screw only secures the focusing mechanism, leaving the inner tube unaffected.

Versatile Compatibility

Featuring a base plate with adjustable drill hole spacing, this focuser accommodates a wide array of Newtonian telescopes with apertures of 200mm and above.

Key Advantages Summarized:

• Ultra-low-profile design resolves common focusing issues
• Built-in extension tube enables length adjustment (50mm to 100mm)
• Linear Crayford ball bearing mechanism with additional rack-and-pinion for stability
• 1:11 reduction ratio facilitates precise astro-photography focusing
• 8kg load capacity supports heavy accessories with confidence
• Compression ring clamping ensures optimal protection for 1.25" and 2" accessories

Specifications:

Capacity

Suitable for: Newtonian telescopes

Gear reduction: 1:11

Connection (to telescope): 80mm

Connection (to eyepiece): 1.25" - 2"

Load capacity (kg): 8

Draw Tube Travel (mm): 22+43

Optical length (mm): 48

Equipment

Motor-powered: -

Rotating: -

Ring clamp: Yes

General

Height (mm): 48

Weight (g): 879

Color: Black

Type: Focuser

Build Type: Crayford
