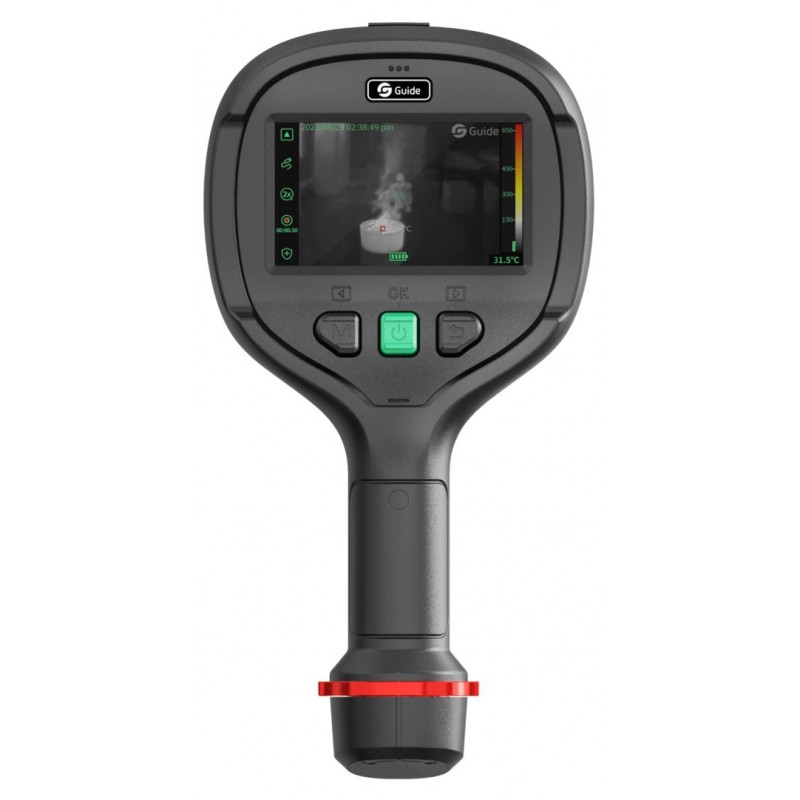

Guide PR410 Firefighter Thermal Camera

The PR series dual-purpose thermal imaging camera revolutionizes firefighting by offering enhanced capabilities. With its high resolution, expansive display screen, versatile scene modes, temperature analysis features, and robust protective design, it overcomes the challenges of extreme environments like high temperatures, humidity, and thick smoke in fire scenes. This empowers firefighters to swiftly and clearly assess their surroundings, pinpoint fires, and locate trapped individuals with greater precision, delivering efficient and safe firefighting solutions.

Key Features:

• IR Resolution: 384x288@12μm
• Measurement Range: -20°C to 2000°C
• Local Storage: 128 GB
• Encapsulation: IP67

Enhanced Imaging:

The PR series offers two image quality options: 640480 and 480384, ensuring clear and detailed thermal images even in smoke-filled environments, aiding navigation for firefighters.

Temperature Visualization:

Intuitively visualize temperature distribution, with a maximum temperature measurement of up to 2000°C (with diaphragm). Features like temperature analysis, correction, and over-temperature alarms enhance functionality.

Glove-Friendly Operation:

Operate effortlessly with gloves using three large buttons and a dedicated photo/video button. The intuitive interface allows firefighters to focus on firefighting tasks without distraction.

Harsh Environment Resilience:

Withstand extreme conditions, operating at temperatures up to 260°C for five minutes. Features soft silicone rubber and durable PPSU construction, along with thermal protection glass to ensure durability.

Rugged Design:

Designed for tough firefighting conditions, boasting excellent 2-meter drop performance and IP67 waterproofing.

Ample Storage and Connectivity:

Store photos and videos with one-click convenience, thanks to 128GB memory. Connectivity options include Type-C, Micro HDMI, and WiFi for real-time transmission.

Versatile Modes:

Switch between various scene modes based on firefighting needs, aiding in quick environmental assessment and precise fire and individual location.

Package Includes:

• Device (with lens)
• Lens cover
• Lithium-ion battery (3 pcs)
• Desktop charger
• Power adapter
• Adapter plug (for multiple regions)
• Cables (Type C to C Charger, TYPE-C USB, Micro HDMI)
• Straps (wrist and shoulder)
• Safety box
• Quick Start Guide
• Data download card (analysis software & user manual)
• Certificates

Technical Specifications:

Model: PR410

Detector Type: VOx, 7.5 to 14μm

Frame Rate: 30Hz/ 9Hz

Focal Length: 9mm

Field of View: 50°×37°

Measurement Accuracy: ±2°C or ±2%, whichever is greater

Display Screen: 4.3" LCD, 800×480 Pixel

Battery Type: Lithium-ion rechargeable

Operating Time: 4 hours

Certifications:

CE, FCC, ROHS, UL, UN38.3, MSDS, NFFE

Dimensions:

Weight: 1.3kg (with battery)

Size: 296×122×153mm

Software Compatibility:

PC: ThermoTools

Mobile: Thermography (iOS/Android)
