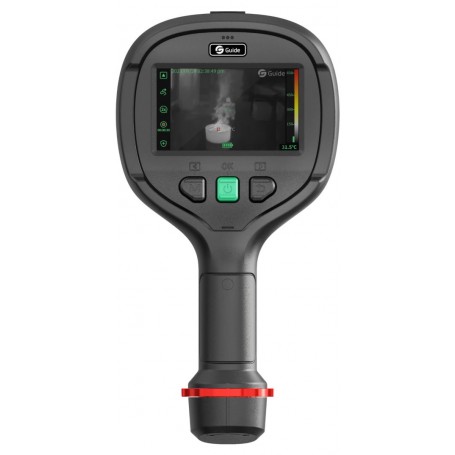

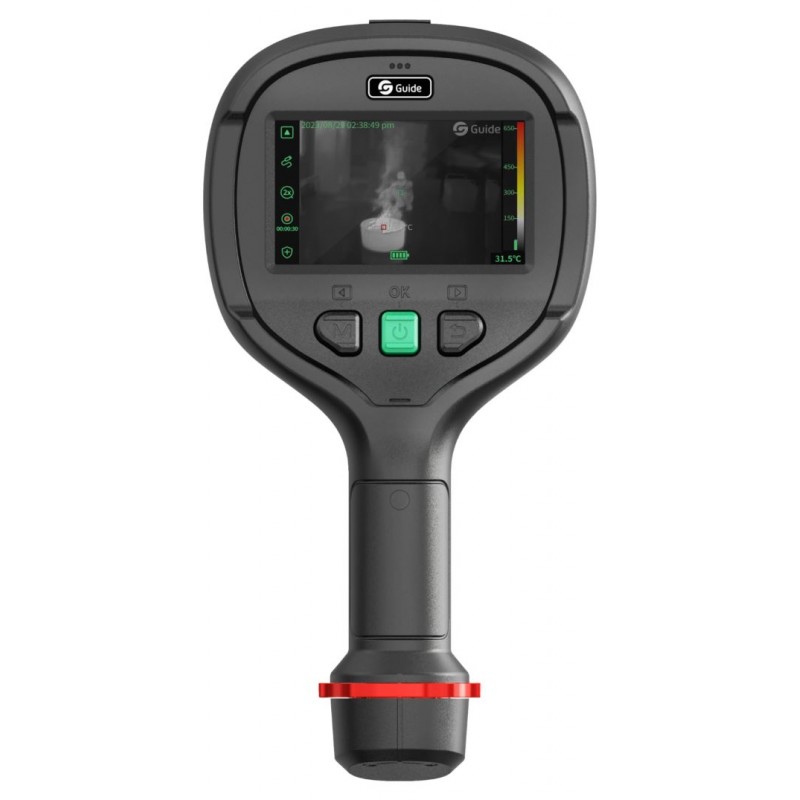

Guide PR610 Firefighter Thermal Camera

The PR series thermal imaging camera, designed for both rescue and detection, revolutionizes firefighting operations. It offers a comprehensive suite of features including high resolution, a large display screen, versatile scene modes, temperature analysis capabilities, and robust protective measures. Engineered to overcome the challenges of harsh environments such as high temperatures, humidity, and thick smoke, this camera enables firefighters to swiftly and clearly assess their surroundings. By providing accurate fire location and aiding in the search for trapped individuals, it offers a safer and more efficient firefighting solution.

Key Specifications:

• IR Resolution: 640×480@12μm
• Measurement Range: -20°C to 2000°C
• Local Storage: 128 GB
• Encapsulation: IP67

Crystal-Clear Imaging:

Equipped with two image quality options, the PR series swiftly generates detailed thermal images without the need for focusing, ensuring clarity even in smoke-filled environments.

Precise Temperature Visualization:

With a maximum temperature measurement of up to 2000°C, users can intuitively visualize temperature distribution. Advanced functions such as temperature analysis and over-temperature alarms enhance operational efficiency.

Glove-Friendly Operation:

Featuring large buttons and a dedicated photo/video button, the PR series ensures easy operation even with gloves, allowing firefighters to focus on their tasks without distractions.

Resilience in Harsh Environments:

Capable of operating at temperatures up to 260°C for five minutes, this camera is constructed with materials offering excellent heat resistance and durability. Its rugged design ensures reliability in tough firefighting conditions.

Rugged Design:

Engineered to withstand harsh conditions, the PR series boasts excellent drop performance and IP67 waterproofing.

Ample Storage and Connectivity:

With one-click storage for photos and videos and a large 128GB memory capacity, users can store over 20,000 pictures. Additionally, it supports OTA firmware updates for enhanced efficiency.

Versatile Image Modes:

Users can switch between various scene modes to adapt to different firefighting scenarios, aiding in accurate fire and individual location.

Package Contents:

• Thermal imaging camera (with lens)
• Lens cover
• Lithium-ion battery (3 pcs)
• Desktop charger
• Power adapter
• Adapter plug (multiple regions)
• Cables (Type C to C Charger, TYPE-C USB, Micro HDMI)
• Straps (wrist and shoulder)
• Safety box
• Quick Start Guide
• Data download card (analysis software & user manual)
• Certificates

Technical Specifications:

Model: PR610

Detector Type: VOx, 7.5 to 14μm

Frame Rate: 30Hz/ 9Hz

Focal Length: 9mm

Field of View: 50°×37°

Measurement Accuracy: ±2°C or ±2%, whichever is greater

Display Screen: 4.3" LCD, 800×480 Pixel

Battery Type: Lithium-ion rechargeable

Operating Time: 4 hours

Certifications:

CE, FCC, ROHS, UL, UN38.3, MSDS, NFFE

Dimensions:

Weight: 1.3kg (with battery)

Size: 296×122×153mm

Software Compatibility:

PC: ThermoTools

Mobile: Thermography (iOS/Android)
