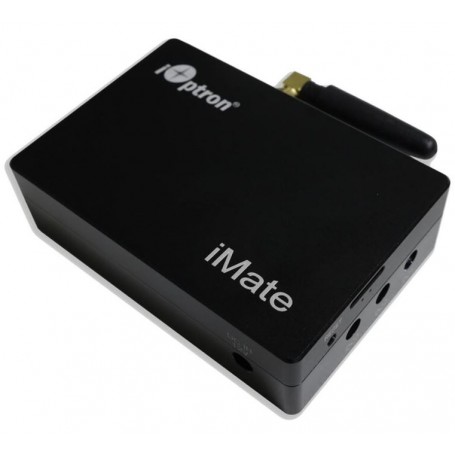

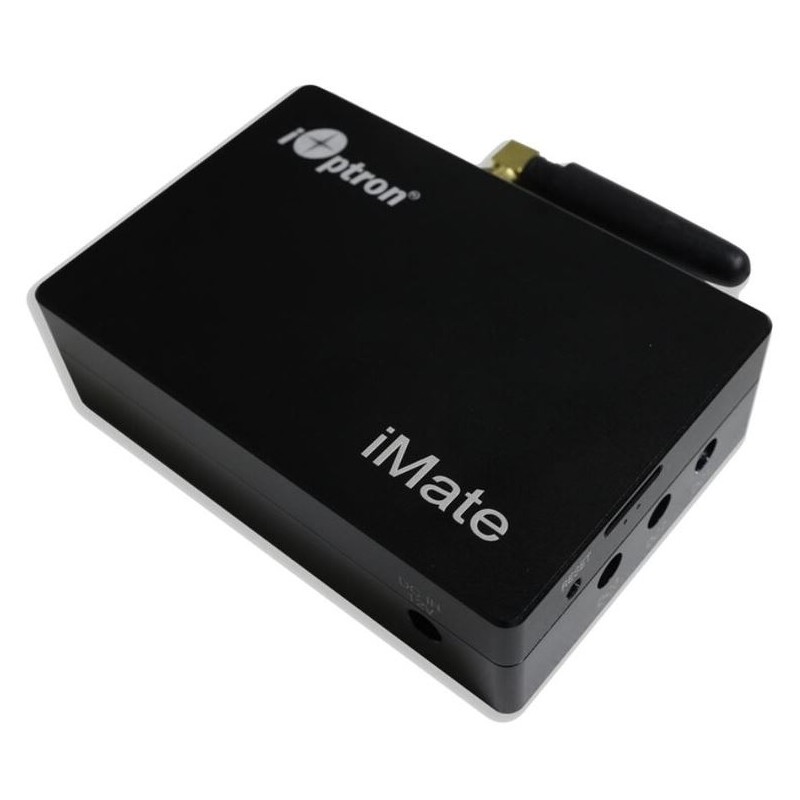

iOptron iMate Control Box

The iMate stands as a single-board computer, boasting a robust 64-bit ARM processor, complete with Wi-Fi connectivity, and preloaded with the KStars planetarium software, Ekos control, and the INDI drivers. This pairing of hardware and software extends support to a wide array of current and forthcoming devices, including cameras, focusers, and filter wheels, granting users the freedom to select their preferred brand and model.

250.12 $
Tax included

203.35 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The iMate stands as a single-board computer, boasting a robust 64-bit ARM processor, complete with Wi-Fi connectivity, and preloaded with the KStars planetarium software, Ekos control, and the INDI drivers. This pairing of hardware and software extends support to a wide array of current and forthcoming devices, including cameras, focusers, and filter wheels, granting users the freedom to select their preferred brand and model.

Equipped with 32GB eMMC storage, expandable via a slot accommodating up to a 64GB TF (micro SD) memory card, the iMate empowers users to manage and capture entire automated imaging sessions. It is cross-platform compatible, facilitating use across Windows, iOS, Linux, Android, and other operating systems.

Features:

  • Orange Pi 3 LTS with 64-bit ARM processor, 2GB LPDDR3 SDRAM, and 32GB EMMC flash memory
  • 1x USB 3.0 and 2x USB 2.0 ports
  • 3x 12VDC outputs (2 programmable)
  • Up to 64GB high-speed MicroSD card support (class 10 or higher)
  • Open Source Architecture
  • Preloaded KStarts/Ekos/INDI drivers for mount, camera, focuser, and other device control
  • iPolarServ for iOS and Android polar alignment
  • Remote connection to iMate via WIFI network from Windows, MacOS, iOS, Linux, Android
  • Mounting options: 31mm dovetail saddle for finder scope shoe mounting, 1/4"-20 threaded hole, or 2x M3 threaded holes



SPECIFICATIONS:

Internal memory: 32GB eMMC & 64GB Micro SD

Interfaces: 1x USB 3.0, 2x USB 2.0, 3x 12V DC, LAN
