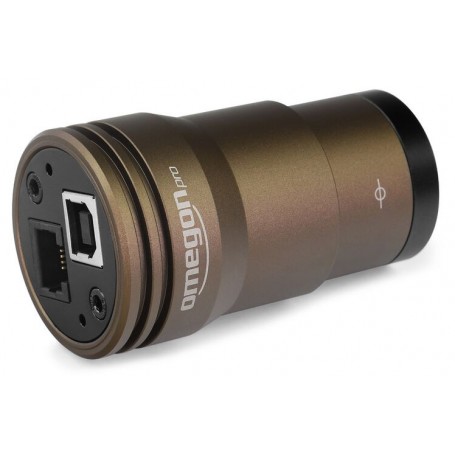

Omegon Camera GUIDE 2000 C Color

The Omegon Pro GUIDE 2000 Camera emerges as an advanced autoguiding solution, ideal for delving into planetary, lunar, and deep-sky astrophotography, now in Full HD!

216.94 $
Tax included

176.37 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Omegon Pro GUIDE 2000 Camera emerges as an advanced autoguiding solution, ideal for delving into planetary, lunar, and deep-sky astrophotography, now in Full HD!

For Beginners in Planetary and Lunar Astrophotography:

This camera serves as the perfect gateway into the captivating realm of solar system astrophotography. Capture breathtaking images of Jupiter, Saturn, or lunar craters akin to what you observe through your eyepiece, fostering shared astronomy experiences with loved ones. Alternatively, enjoy live screenings of the Moon and planets together.

Deep-Sky Astrophotography:

With its modern CMOS chip's high sensitivity, imaging Nebulas and Galaxies becomes notably simpler than in previous years. Despite the challenge of capturing faint objects, the sensor's high quantum efficiency and low read noise enable the creation of images revealing details unseen through visual astronomy.

Autoguiding:

Finding a suitable guide star across the sky is effortless with this camera. Its modern CMOS sensor's high sensitivity ensures guidance with short exposure times and high frequencies, rectifying even minor mount tracking errors. Native compatibility with PHD2 and an inbuilt ST4 Guide-Port make it the perfect tool for autoguiding needs.

Functional Shape:

Crafted from durable anodized aluminum, this camera's design, akin to a 1.25" eyepiece, ensures compatibility with every telescope without adding undue weight. Equipped with a C- & CS-Mount thread or, through an adapter, a regular 1.25" filter thread, it allows direct attachment of various lenses or astronomical filters.

Transmission:

A filter window safeguards the sensor chamber from dust and humidity. While the Omegon Pro color cameras feature an infrared-blocking filter for accurate color representation, the mono cameras boast an anti-reflection window transparent to a wide range of wavelengths, providing control over transmission curves for advanced imaging.

Compatibility:

Compatible with a wide range of astrophotography programs via interfaces like ASCOM and INDI, this camera is also natively compatible with software such as PHD2 and N.I.N.A.

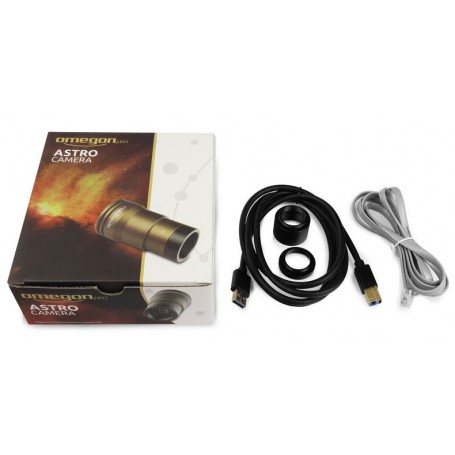

Scope of Delivery:

  • Camera
  • Nosepiece adapter
  • USB Cable
  • ST4 Cable



Specifications:

Capacity: Autoguide, Moon & Planets, Nebulae & galaxies

Sensor Type: CMOS Chip (Sony IMX290)

Chip Size (mm): 5.6 x 3.1

Chip Diagonal (mm): 6.4

Pixel Size: 2.9

Resolution (Pixel): 1936 x 1096

Megapixel: 2.1

Bit Depth (Bit): 12

Images per Second: 15 (at full resolution)

Colour Camera: Yes

Active Cooling: No

Power Supply: USB

Interfaces: USB 2.0, ST4

Supported Operating Systems: Windows 7/8/10 (Linux (INDI))

Connection (to the telescope): 1.25"

Filter Thread: Yes (1.25")

Flange Focal Distance (mm): 12.5

Software: Download

Operating Temperature: -10°C - +50°C

Binning: 2x2, 3x3, 4x4 (Digital)

Internal Memory: -

Shutter: Rolling Shutter

Filter Wheel: No

Transport Cases: No

Other Contents: USB & ST4 cable

Connection (to the telescope): C-Mount

General Series: GUIDE

Length (mm): 71

Diameter (mm): 39

Weight (g): 90

Outer Material: Aluminum

Colour: Bronze

Type: Camera

Type of Build: Astronomical Cameras

Area of Application: Autoguide, Moon & Planets, Nebulae & galaxies

Data sheet

060OJHPM8S
