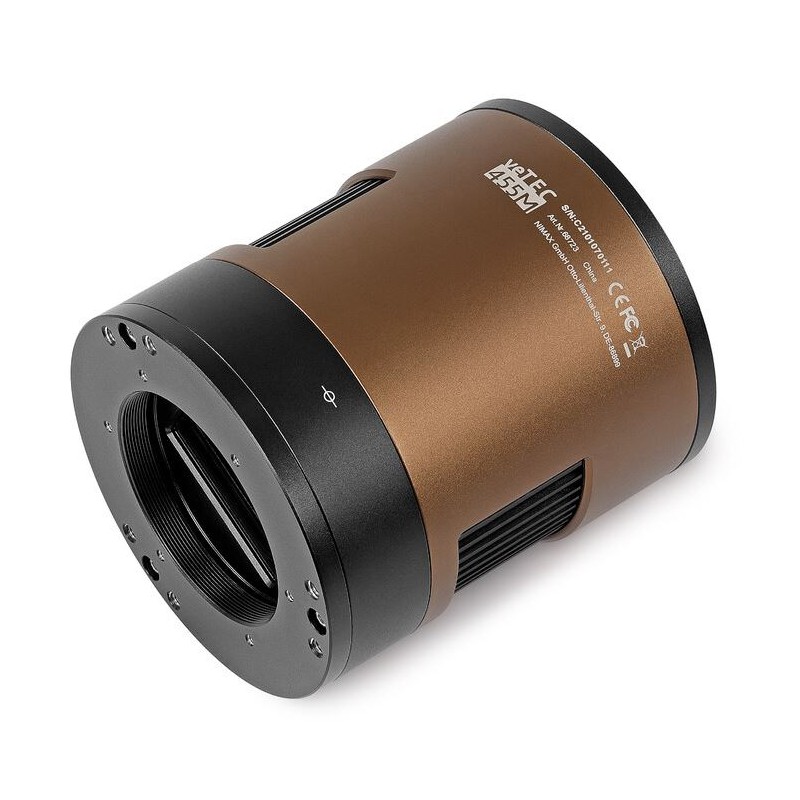

Omegon Camera veTEC 455 C Color

Presenting the Omegon Pro veTEC 455 M and Omegon Pro veTEC 455 C: premium-grade astrophotography cameras featuring a full-frame sensor.

4540.72 $
Tax included

3691.64 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Presenting the Omegon Pro veTEC 455 M and Omegon Pro veTEC 455 C: premium-grade astrophotography cameras featuring a full-frame sensor.

Key Features:

  • High-Performance Full-Frame Sensor: Capture stunning images with exceptional clarity and detail.
  • Pixel Size: 3.8 µm for optimal sensitivity and image quality.
  • High Quantum Efficiency (~80%): Maximize light-gathering capability for vivid, lifelike images.
  • Low Readout Noise (~1.5e-): Ensure clean, noise-free images with minimal interference.
  • High Full-Well Capacity: Choose between 50,000 e- (HCG) or 100,000 e- (LCG) capacity to suit various exposure requirements.
  • ADC: 16-bit for precise color reproduction and tonal accuracy.
  • Zero-Amp-Glow: Eliminate amplifier glow for pristine image quality.
  • Color or Mono Camera Options: Available in both color and monochrome variants to meet different imaging needs.

Professional Deep-Sky Astrophotography: Ideal for capturing wide nebulas, star fields, and lunar surfaces with unmatched clarity comparable to DSLR cameras.

Thermoelectric Cooling: Reduce image noise effectively with advanced cooling capabilities, maintaining temperatures up to 35°C below ambient for pristine final images.

USB Hub: Simplify cable management with two integrated USB ports, allowing seamless connection of additional devices such as guiding cameras.

Versatile Adaptability: Compatible with various astrophotography setups, thanks to a T2 thread and short back focus of only 17.5mm. The included 2" nosepiece adapter ensures easy connection to telescopes.

Robust Portability: Transport and store the camera securely with the provided sturdy carrying case, complete with a custom-fit foam inlet for added protection.

Professional Planetary, Lunar, and Solar Astrophotography: Capture detailed images of celestial objects with high framerates and USB3.0 connectivity, ideal for lucky imaging techniques.

Transmission: Equipped with a filter window to shield the sensor chamber from dust and humidity. Color cameras feature an infrared-blocking filter for accurate color representation, while mono cameras offer versatile transmission control for advanced applications.

Compatibility: Compatible with a wide range of astrophotography programs through common interfaces like ASCOM and INDI. Enjoy native compatibility with popular software suites such as PHD2 and N.I.N.A.



Scope of Delivery:

  • Camera
  • USB 3.0 Cable
  • 12V 3A Power Supply (EU-Plug)
  • Sturdy Carrying Case
  • Desiccant Plug
  • M48 / 2" Adapter
  • M48 Extension (for 55mm backfocus)
  • T2 Adapter Ring



Specifications:

Capacity: Full Frame

Sensor Type: CMOS Chip (Sony IMX455)

Sensor Size: 24 x 36 mm

Sensor Diagonal: 43.3 mm

Pixel Size: 3.76 µm

Resolution: 9568 x 6380 pixels

Megapixel: 61 MP

Bit Depth: 16 bits

Frame Rate: 6 fps (at full resolution)

Color Camera: Yes

Active Cooling: Yes

Max. Cooling Difference Below Room Temperature: -35°C

Power Supply: 12V (3A)

Interfaces: USB 3.0 (2x USB 2.0 Hub)

Autoguider: No

Supported Operating Systems: Windows 10/11, Linux (INDI)

Telescope Connection: M54

Filter Thread: Yes (2")

Flange Focal Distance: 17.5 mm

Binning: 2x2, 3x3, 4x4 (Digital)

Buffer Memory: 512 MB DDR3 RAM

Shutter: Rolling Shutter

Equipment: Filter Wheel (No), Transport Cases (Yes), Power Pack (Yes)

Cable: USB

Series: veTEC

Length: 103 mm

Diameter: 89 mm

Weight: 718 g

Outer Material: Aluminum

Color: Bronze

Type: Camera

Type of Build: Astronomical Cameras

Area of Application: Autoguider (Yes), Moon & Planets (Yes), Nebulae & Galaxies (Yes)
