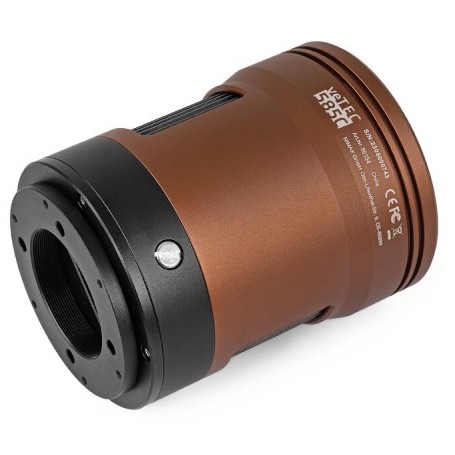

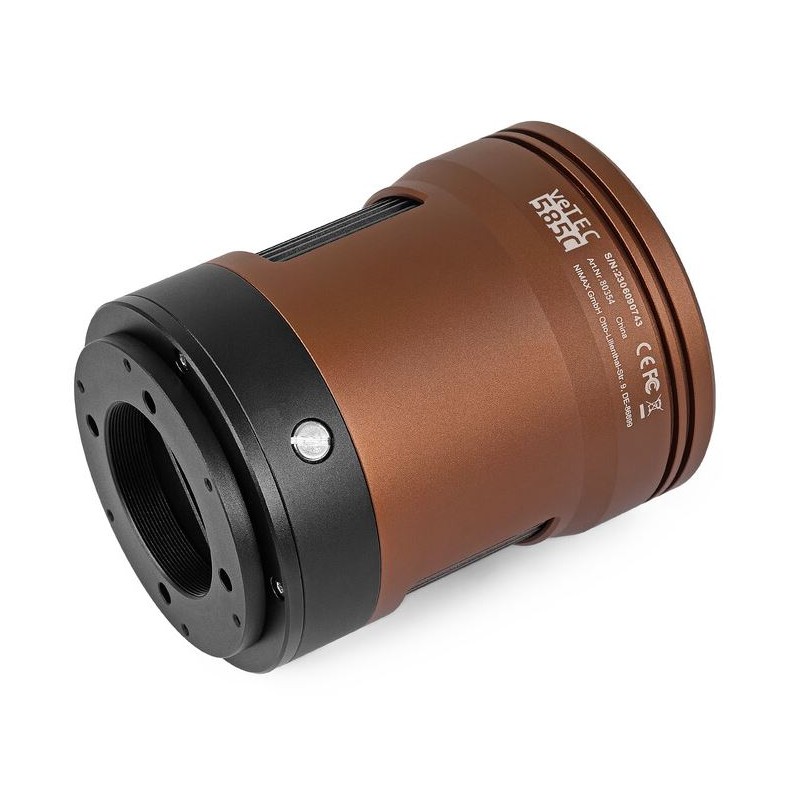

Omegon Camera veTEC 585 C Color

Introducing the Omegon Pro veTEC 585, an affordable entry point into thermoelectrically cooled astrophotography. This camera boasts a slightly smaller sensor, enabling cost-effectiveness without compromising on performance.

Key Specifications:

• Pixel Size: 2.9 µm
• High Quantum Efficiency (~90%)
• Low Readout Noise (~0.8e- @ unity gain)
• Full-Well Capacity: 40,000 e-
• ADC: 12-bit
• Zero Amp Glow
• USB-Hub with 2 Ports
• T2 Thread with 17.5mm Back Focus
• Sturdy Carrying Case Included

Professional Deep-Sky Astrophotography:

The generous sensor size makes it perfect for capturing wide nebulas, star fields, or detailed lunar surfaces, akin to DSLR cameras.

Thermoelectric Cooling:

With a cooling system capable of reducing noise by up to 40°C below ambient temperature, dark current noise is significantly minimized, resulting in impressively clean images.

USB-Hub:

Two USB ports at the back streamline cable management, allowing for daisy-chaining additional devices like guiding cameras, eliminating the need for multiple individual connections.

Versatile Adaptability:

Featuring a T2 thread and short back focus, the camera easily integrates into various astrophotography setups. Additionally, a 2" nosepiece adapter simplifies connection like any standard 2" eyepiece.

Professional Planetary, Lunar, and Solar Astrophotography:

High-framerate capture capabilities enable detailed imaging of celestial phenomena such as Jupiter's moons, Saturn's rings, lunar mountains, and solar prominences, facilitated by advanced electronics and USB3.0 bandwidth.

Enhanced Transmission:

Equipped with a filter window to shield against dust and humidity, Pro color cameras feature an infrared-blocking filter for accurate color representation, while mono cameras include an anti-reflection window for broader wavelength transparency, allowing for customized filter applications.

Compatibility:

Compatible with a wide range of astrophotography software through ASCOM and INDI interfaces, with increasing native compatibility with popular programs like PHD2 and N.I.N.A.

Included Accessories:

• T2 to 2" Adapter
• USB 3.0 Cable
• 12V 3A Power Supply (EU-Plug)
• Desiccant Plug

Specifications:

CMOS Chip (Sony IMX585)

Chip Size: 11.1 x 6.3 mm

Pixel Resolution: 3840 x 2160

Megapixels: 8.3

Bit Depth: 12-bit

Max. Cooling Difference: -40°C

Interfaces: USB 3.0 (2x USB2.0 Hub)

Supported Operating Systems: Windows 7/8/10, Linux (INDI)

Operating Temperature: -10°C to +50°C

Binning Options: 2x2, 3x3, 4x4 (Digital)

Buffer Memory: 512 MB

Shutter: Rolling Shutter

Length: 104 mm

Diameter: 84 mm

Weight: 540 g

Outer Material: Aluminum

Color: Bronze

Applications:

Moon & Planets

Nebulae & Galaxies
