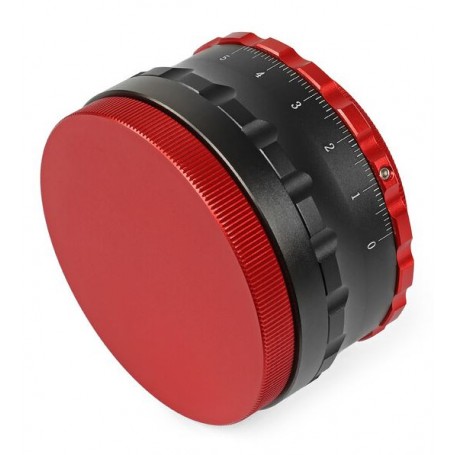

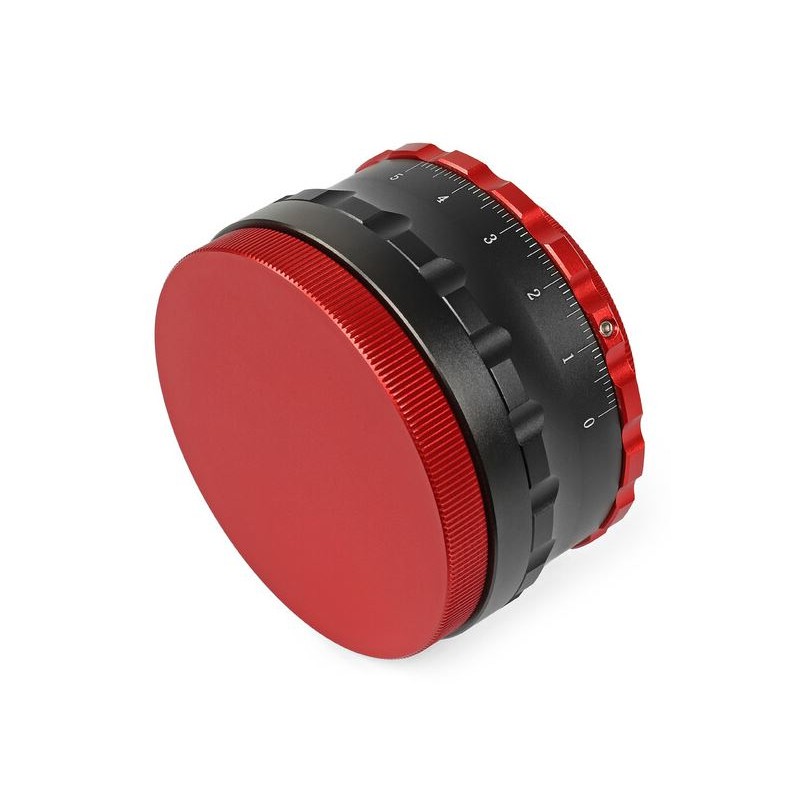

Omegon Pro Reducer 0.92 Reducer for 85mm and 96 mm f/6 Triplet ED APO

This field flattener/focal reducer is specifically designed for use with the Omegon Apochromatic refractor Pro APO AP 85/510 Triplet ED FCD-100 and the Omegon Apochromatic refractor Pro APO AP 96/575 Triplet ED FCD-100. It effectively reduces the focal length of the 96/575 to 530mm (f/5.5) and for the 85/510 to 470mm (f/5.5).

Featuring a fine-tuning capability at the sensor end, this Omegon Pro reducer allows astrophotographers to optimize the distance to the sensor for superior performance. We recommend utilizing the fine-tuning ring to identify the optimal distance and then employing extension tubes to ensure a secure connection to the camera once the correct distance is established.

The field flattener/focal reducer is most compatible with sensors up to APS-C format.

SPECIFICATIONS:

Capacity

Connector (at camera end): M48x0.75

Connection (to the telescope): M63x1 male

Special Features

Fine adjustment: Yes

General

Type: Flatteners, Correctors, Reducers

Type of build: Reducer
