PrimaLuceLab Compact Guidescope 60mm

The 60mm CompactGuide scope, complete with PLUS rings, offers exceptional value without compromising on quality. Featuring a 60mm diameter and 240mm focal length (f/4) achromatic lens, alongside non-rotating 31.8mm helical focuser and sturdy 80mm PLUS guide rings, this guide scope ensures both ease of use and robust connectivity.

218.15 $
Tax included

177.36 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The 60mm CompactGuide scope, complete with PLUS rings, offers exceptional value without compromising on quality. Featuring a 60mm diameter and 240mm focal length (f/4) achromatic lens, alongside non-rotating 31.8mm helical focuser and sturdy 80mm PLUS guide rings, this guide scope ensures both ease of use and robust connectivity.

With the included extension, it doubles as a potent optical finder when paired with a 31.8mm eyepiece, making it a versatile addition to your astrophotography setup.

Simultaneously serving as both a finder and guide scope, this compact unit boasts an achromatic lens, precision helical focuser, and PLUS 80mm support rings, all at an affordable price point. Its non-rotating helical focuser, compatible with 31.8mm accessories, ensures stable camera orientation, essential for reliable autoguiding.

Compatible with various guide cameras, the scope accommodates either direct insertion into the 31.8mm focuser connection or attachment via the T2 thread. Additionally, it includes a precision helical focuser with a 10mm travel distance, ensuring precise adjustments without camera rotation.

Included in the package are 2 additional plates for installing the guide scope above the EAGLE, providing a flat base for optimal connection using the provided M5x12 screws.

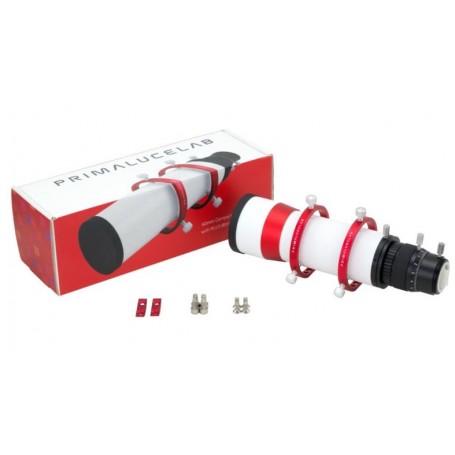

Scope of Delivery:

  • 60mm CompactGuide scope with PLUS 80mm guide rings
  • Extension tube for eyepiece
  • 2 additional plates for EAGLE installation
  • 4 M5x12 screws
  • 4 M6x12 screws



SPECIFICATIONS

Capacity

Lens Diameter (mm): 60

Focal Length (mm): 240

Aperture Ratio (f/): 4

Connector (at camera end): 1.25" & T2

Coating of Optical System: Multiple

Special Features

Fine Adjustment: Yes

Ring Clamp: Yes

Equipment

Prism Rail: No

Tube Ring Clamps: Yes

Other Contents: Extension Tube

General

Weight (g): 650

Outer Material: Aluminium

Type: Guiding

Build Type: Guidescope

Data sheet

7TWQQFSNKB
