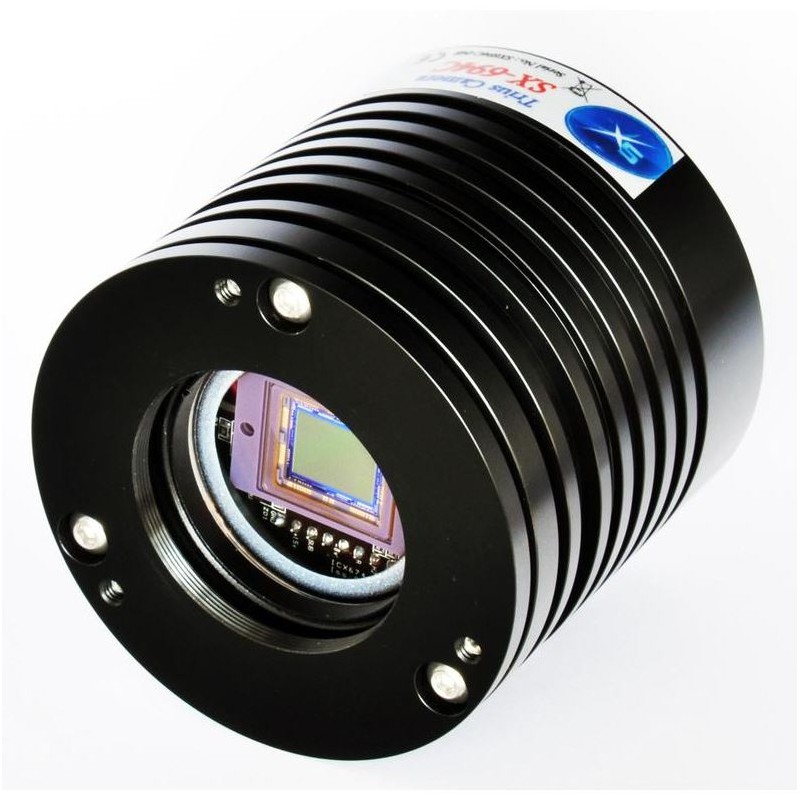

Starlight Xpress Camera Trius PRO-694C Color

Renowned for their compact designs and exceptional quality, Starlight Xpress continues its legacy with the Trius series. These cooled cameras redefine deep sky photography, boasting improved noise performance while maintaining rapid download speeds of approximately two million pixels per second.

2991.54 $
Tax included

2432.15 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Renowned for their compact designs and exceptional quality, Starlight Xpress continues its legacy with the Trius series. These cooled cameras redefine deep sky photography, boasting improved noise performance while maintaining rapid download speeds of approximately two million pixels per second.

Among the innovative features of the Trius cameras are:

  • An integrated USB hub, facilitating connections for up to three peripheral devices to the camera (5V DC at a maximum of 200 mA), reducing cable clutter on the telescope. A guider can be linked via the RJ11 output.
  • Multi-coated quartz glass optical window for superior quality.
  • The Peltier cooling system, unparalleled in compact cameras, with a built-in fan drawing air through small holes in the front and an additional side fan to maintain the camera's temperature in warmer conditions.
  • The chamber housing the CCD sensor is filled with argon to prevent moisture condensation, supported by argon's low thermal conductivity for enhanced cooling.
  • An adjustable adapter plate on the camera's front allows parallel alignment of the sensor to the telescope focal plane.
  • Utilization of high-quality grade 1 or better CCDs ensures no dead pixels or defective columns.

Step into the realm of high-end astrophotography with a Trius camera from Starlight Xpress.



Specifications:

Capacity:

Colour Camera: Yes

Type of Camera: Astro CCD Camera

Sensor Type: CCD-chip (Sony ICX694AL Exview)

Size of Chip (mm): 12.5x10

Megapixel: 6.1

Resolution Photograph (Pixel): 2750x2200

Antiblooming: Yes

Pixel Size: 4.54

Active Cooling: Yes

Max. Cooling Difference Below Room Temperature: -40°C

Dark Current: 0.003

Interfaces:

USB 2.0

Reading Noise: 5

Bit Depth (Bit): 16

Connection (to the Telescope): T2

Power Consumption (mA): 1500

Power Supply: 12

Flange Focal Distance (mm): 17

Full Well Capacity: 20000

Chip - Diagonal (mm): 16

Equipment:

Filter Wheel: No

General:

Diameter (mm): 75

Length (mm): 70

Weight (g): 400

Series: Trius

Outer Material: Aluminium

Area of Application:

Autoguider: Yes

Moon & Planets: Yes

Nebulae & Galaxies: Yes
