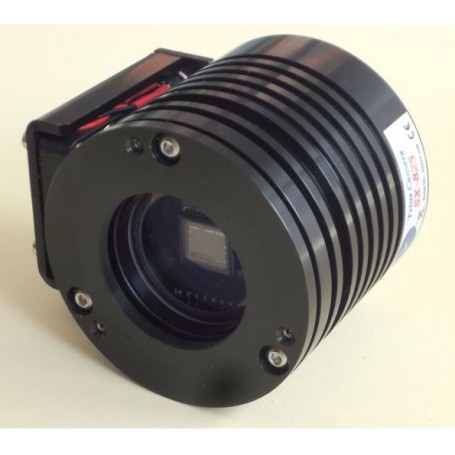

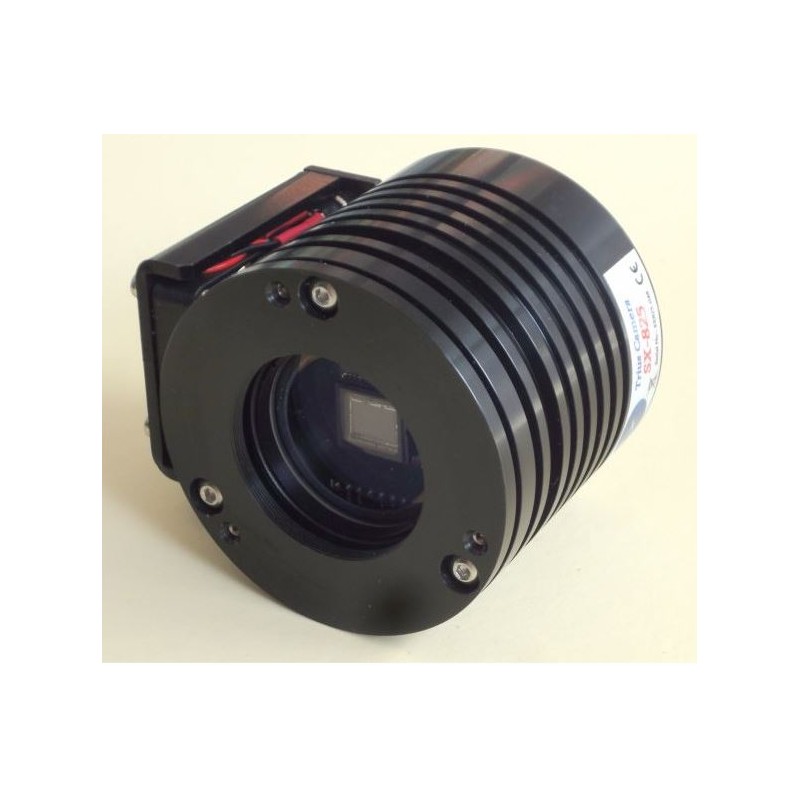

Starlight Xpress Camera Trius PRO-825 Mono

Renowned for compact, innovative designs and exceptional quality, Starlight Xpress continues its tradition with the new Trius series. These cooled cameras redefine deep sky photography, surpassing their predecessors in noise performance while maintaining rapid download speeds of around two million pixels per second.

Innovative features of the new Trius cameras include:

• An integrated USB hub allowing connection to up to three peripheral devices, reducing cable clutter on the telescope. Guiders can be connected via the RJ11 output.
• High-quality Trius cameras feature a multi-coated quartz glass optical window.
• The Peltier cooling system is optimized for compact cameras, with a built-in fan drawing air through small holes in the front and an additional side fan for cooling in warmer weather.
• The chamber housing the CCD sensor is filled with argon to prevent moisture condensation, aided by argon's low thermal conductivity.
• An adjustable adapter plate on the camera's front allows sensor alignment parallel to the telescope focal plane.
• Starlight Xpress uses only high-quality grade 1 or better CCDs, ensuring no dead pixels or defective columns.

With a Trius camera from Starlight Xpress, you step into the world of high-end astrophotography.

Specifications:

Capacity:

Colour Camera: No

Active Cooling: Yes

Sensor Type: CCD-chip (Sony ICX285 Exview2)

Bit Depth (Bit): 16

Pixel Size: 6.45

Size of Chip (mm): 8.8 x 6.3

Megapixel: 1.4

Resolution Photograph (Pixel): 1392 x 1040

Full Well Capacity: 23000

Dark Current: 0.02

Interfaces:

USB 2.0

Connection (to the Telescope): T2

Reading Noise: 5

Quantal Efficiency: 75% @500nm

Chip - Diagonal (mm): 10.8

Equipment:

Filter Wheel: No

General:

Series: Trius

Weight (g): 400

Diameter (mm): 70

Outer Material: Aluminium

Length (mm): 70
