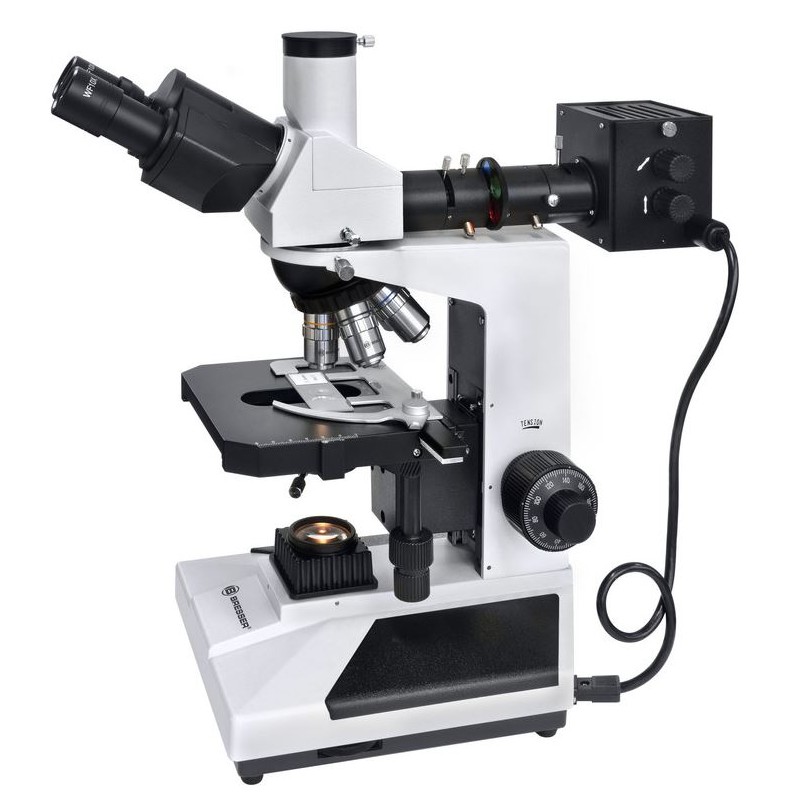

Bresser Microscope Science ADL 601P, trino, 50-600x

Introducing the Science ADL 601 P, a professional microscope designed for both incident and transmission microscopy applications.

At its core, the microscope boasts a 20W transmitted light halogen illuminator alongside power supply and continuously adjustable dimmers for both reflected and transmitted light. The trinocular head attachments are versatile, accommodating both illumination modes while offering options for photography and binocular visual observation. The eyepiece tubes feature a comfortable 30° inclination.

Equipped with a polarization head attachment, this instrument becomes invaluable for delving into the internal composition of materials and monitoring the condition of various mechanical apparatus in educational institutions and factories. The reflected light halogen illumination, adjustable with a color filter wheel and a polarizer/analyzer combination, caters to specific needs.

The Science ADL 601 P offers excellent value for money and incorporates features typical of high-quality microscopes: a fourfold objective nosepiece, lengthwise and cross-movable stage, coaxial focusing knobs (with fine adjustment: 200 µm/full turn), eye relief adjustment, diopter adjustment, and a phototube. Optional accessories include wide field eyepieces (WF10x, WF16x), planachromatic DIN objectives, an Abbe condenser (with iris diaphragm and auxiliary lens), dark field condensers, immersion oil, a phase contrast set, a field diaphragm (for Köhler illumination), and various filters.

SPECIFICATIONS

Optics

Lighting: Incident and Transmitted Light

Lamp Type: Halogen (6V/20W, continuously adjustable, Köhler illumination)

Magnification: 50x-600x

Lens Type: Plan, Achromatic

Image Scale: 5x, 10x, 40x, 60x

Eyepiece: Wide-angle (10x)

Condenser: Abbe (N.A. 1.25)

Power Supply: Power Plug

Capacity

Polarization: Yes

Brightfield: Yes

Contrast Methods: Polarization

Mechanics

Focusing: Coarse and Fine Movement (coaxial, with 0.002 mm division)

Build Type: Trinocular

Viewing Angle: 30° Angled Eyepiece

Specimen Stage: Height Adjustable

Special Features

Filter Holder: Yes

Luminous Field Diaphragm: Yes

General

Color: Black-White

Series: Science

Suitable for Ages: 16 and up

Weight: 8500 g

Suitability

Beginners: No

Advanced: Yes

Pros: Yes

Area of Application

Phase Contrast: No

Fluorescence: No

Interference Contrast: No

Metallurgy: No

Dark Field: No

Polarization: Yes

Mineralogy: Yes
