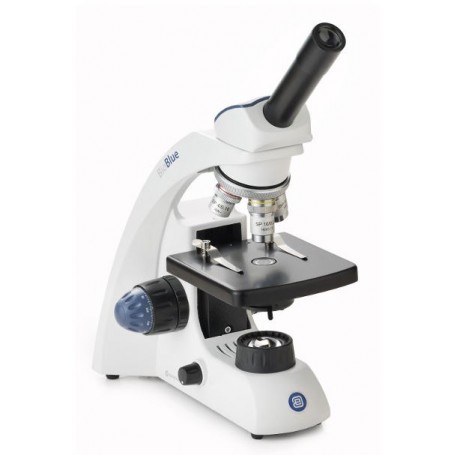

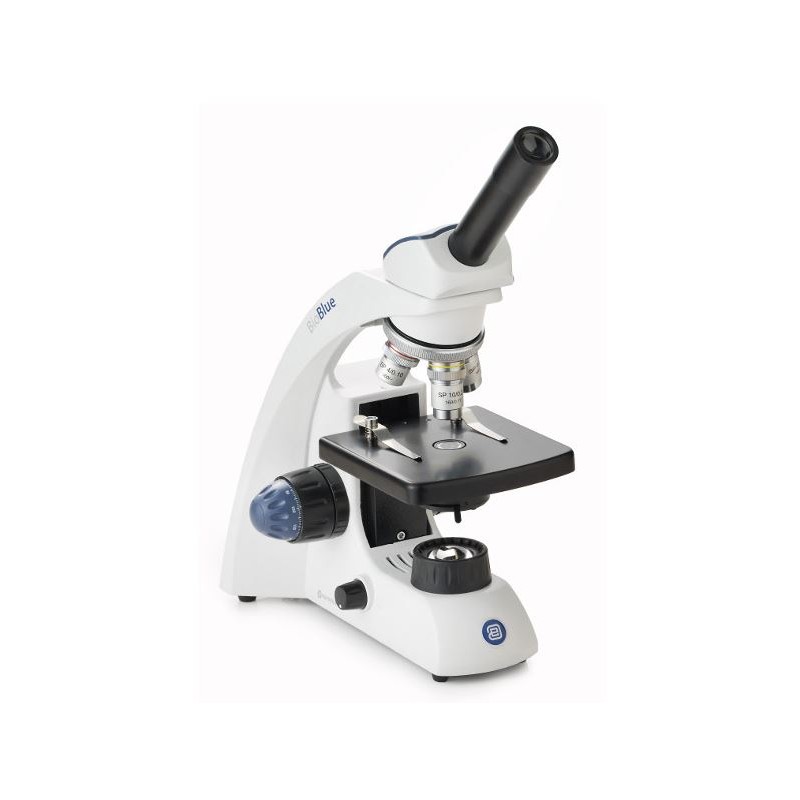

Euromex Microscope BioBlue, BB.4250, mono, DIN, 40x-1000x, 10x/18, LED, 1W
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Euromex Microscope BioBlue, BB.4250, mono, DIN, 40x-1000x, 10x/18, LED, 1W

Introducing the Euromex BioBlue Microscope: meticulously crafted for educational purposes with a keen emphasis on ergonomics and quality. Noteworthy features include securely fastened eyepieces with adjustable specimen protection, ensuring a comfortable and efficient viewing experience.

527.41 $
Tax included

428.79 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Introducing the Euromex BioBlue Microscope: meticulously crafted for educational purposes with a keen emphasis on ergonomics and quality. Noteworthy features include securely fastened eyepieces with adjustable specimen protection, ensuring a comfortable and efficient viewing experience.

Key Features:

  • Wide Field eyepieces HWF 10x/18
  • Monocular models equipped with pointer in eyepieces
  • Mono- and binocular models with a 360° rotatable head
  • Revolving nosepiece for 4 objectives
  • Semi-plan DIN objectives ranging from 4x to 100x-oil
  • 120 x 120 mm stage with two object clamps or integrated X-Y translation stage
  • Adjustable specimen protection mechanism
  • Coaxial coarse and fine adjustment with 0.002 mm graduations
  • Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  • Adjustable LED illumination with built-in power supply, rechargeable batteries, and charger



Specifications:

Optics:

Image scale: 40-1000

Lamp type: LED

Lens type: Semi-Plan Achromatic

Eyepiece: 10x/18 (Widefield)

Power supply: 85-240V, built-in battery charger, detachable power cord

Magnification: 40-1000

Condenser:

NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

Objectives:

4x N.A. 0.10, achrom, semi-plan, DIN

10x N.A. 0.25, achrom. semi-plan, DIN

40x N.A. 0.65, achrom. semi-plan DIN (spring-mounted)

100x N.A. 1.25, achrom., semi-plan, DIN (spring-mounted, oil)

Optical system: DIN (160mm)

Capacity:

Brightness control: Yes

Brightfield: Yes

Mechanics:

Viewing posture: 45° angled eyepiece, 360° rotatable

Build type: Monocular

Focusing: Coarse and fine movement

Specimen stage: Cross table

Special Features:

Rechargeable battery operation: Yes

Filter holder: Yes

Dust cover bag: Yes

General:

Series: BioBlue

Field of Application:

Medicine: Not applicable

Education: Yes

Area of Application:

School: Yes

University: Yes

Veterinary medicine: Yes

Secondary school: Yes
