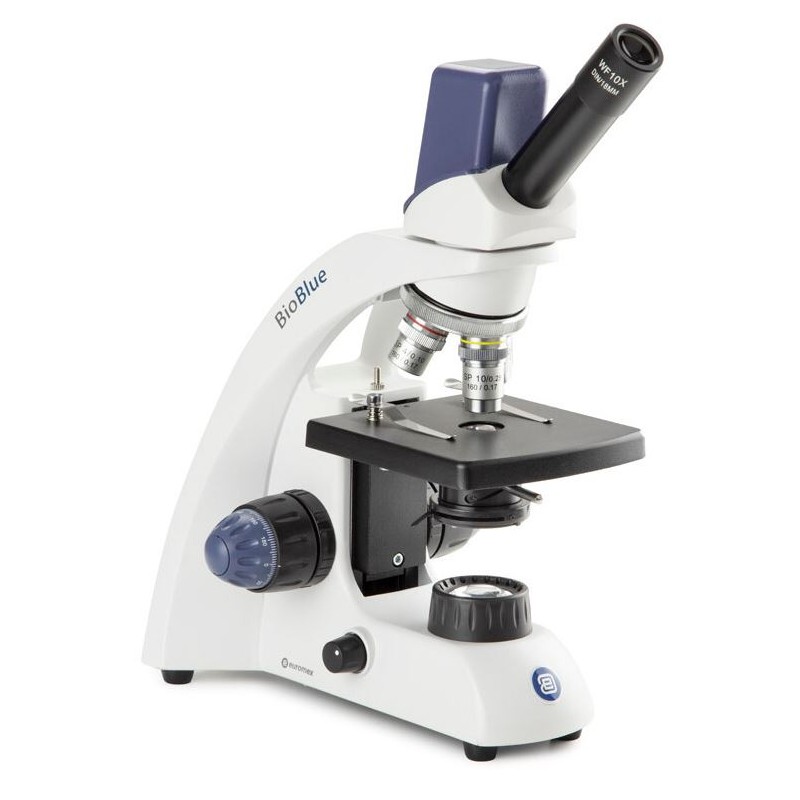

Euromex Microscope BioBlue, BB.4205, digital, mono, DIN, 40x - 400x, 10x/18, LED, 1W

Introducing the BioBlue Digital Models: These models within the BioBlue range boast the same functionalities as the regular ones but come equipped with integrated cameras, providing a compact solution for viewing microscope images. The accompanying software enables users to capture photos or videos, project them onto a computer monitor or projector, and conduct various measurements.

799.96 $
Tax included

650.37 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Introducing the BioBlue Digital Models: These models within the BioBlue range boast the same functionalities as the regular ones but come equipped with integrated cameras, providing a compact solution for viewing microscope images. The accompanying software enables users to capture photos or videos, project them onto a computer monitor or projector, and conduct various measurements.

Key Features:

  • Monocular (45° inclined lens tube) and binocular models (30° inclined lens tube)
  • WF 10x/18mm eyepieces (monocular models include a pointer)
  • Inverse 4x lens revolver
  • Achromatic semi-plan lenses: 4x, 10x, 20x, S40x, S60x, and S100x oil (varies by model)
  • Equipped with APL (Anti-bacterial Protection Layer)
  • Stage (130x130mm) with integrated 70x28mm X-Y cross table (except for BB.4205 model, which features a simple 120x120mm table with 2 non-removable object clamps)
  • 1.25 N.A. height-adjustable Abbe condenser with iris diaphragm and filter holder
  • 1W LED lighting (monocular), 1W NeoLED lighting (binocular and trinocular) with integrated 100-240V mains adaptor and 3 NiMH batteries

Camera Specifications:

  • 5.0MP CMOS
  • Maximum resolution: 2560x1920, 24-bit color depth, up to 30 frames per second
  • Includes ImageFocus Plus software, USB-2 cable, and 1 mm/100 micrometer Slides
  • Comes with a 2-year warranty

Software Specifications:

  • ImageFocus Plus software for image capture and analysis
  • Supports saving images in JPG, TIF, or BMP format and videos in AVI format
  • Allows annotation and measurements on live and saved images
  • Compatible with Windows 7, 8, 10, and 11 (32- and 64-bit configurations)
  • Light version available for Mac OS, limited to image capture only
  • Updates can be downloaded from www.euromex.com website



Specifications:

Optics:

Condenser: Abbe 1.25 with iris diaphragm (NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable)

Lamp type: LED

Lens type: Semi-Plan Achromatic

Eyepiece: 10x18 (Far field eyepiece WF 10x/18, with firm pointer)

Power supply: 85-240V, built-in battery charger, detachable power cord

Magnification: 40-400x

Number of objectives: 3

Field curvature: Semi-planachromatic

Colour correction: Achromatic

Camera Specifications:

Megapixel: 5.0

Connection: USB 2.0

Power supply: Power cable

Brightness control: Yes

Transmitted light: Yes

Brightfield: Yes

Frame rate (fps): 30

Video format: AVI

Mechanics:

Viewing posture: 45° angled eyepiece, 360° rotatable

Specimen stage: Specimen stage (120 x 120 mm)

Focusing: Coarse and fine movement (coaxial, with 0.002 mm division)

Type of build: Digital

Special Features:

Rechargeable battery operation: Yes

Filter holder: Yes

Dust cover bag: Yes

General:

Weight: 2.9g

Series: BioBlue

Suitable for: Beginners

Field of application: Education

Area of application: School, Secondary school

Miscellaneous:

Supplier product number: BB.4205
