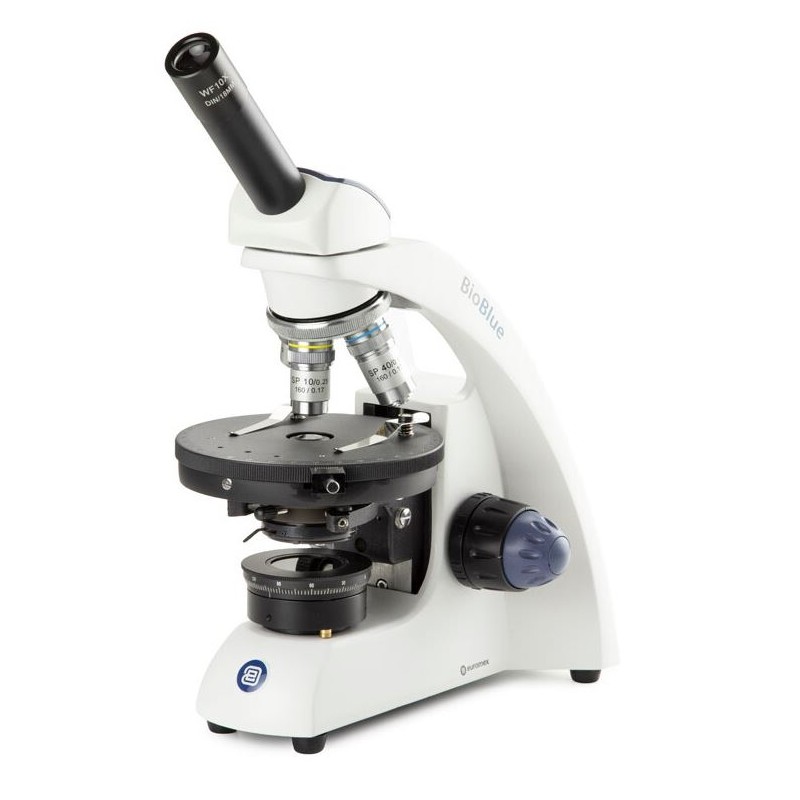

Euromex Microscope BioBlue, BB.4220-P-HLED, mono, DIN, 40x-400x, 10x/18, LED, 1W

Euromex presents the BioBlue series, a line of modern microscopes meticulously crafted for educational purposes with a keen focus on ergonomics and quality. The eyepieces are securely designed and come with adjustable specimen protection for added convenience.

835.29 $
Tax included

679.1 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Euromex presents the BioBlue series, a line of modern microscopes meticulously crafted for educational purposes with a keen focus on ergonomics and quality. The eyepieces are securely designed and come with adjustable specimen protection for added convenience.

Key Features:

  • Wide Field eyepieces HWF 10x/18
  • Monocular models feature eyepieces equipped with a pointer
  • Both mono- and binocular models with a rotatable head of 360°
  • Revolving nosepiece accommodating 4 objectives
  • Semi-plan DIN objectives: 4x, 10x, 20x, S40x, S60x, and S100x-oil
  • Stage available in 120 x 120 mm with two object clamps or integrated X-Y translation stage
  • Adjustable specimen protection mechanism
  • Coaxial coarse and fine adjustment with 0.002 mm graduations
  • Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  • Adjustable LED illumination featuring built-in power supply, rechargeable batteries, and charger



Specifications:

Optics:

Image scale: 40-400

Condenser: NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable

Lamp type: LED

Lens type: Semi-Plan Achromatic

Eyepiece: 10x/18 (Widefield)

Power supply: 85-240V, built-in battery charger, detachable power cord

Magnification: 40, 100, 400

Optical system: DIN (160mm)

Capacity:

Brightness control: Yes

Brightfield: Yes

Mechanics:

Viewing posture: 45° angled eyepiece, 360° rotatable

Specimen stage: Cross table (120 x 120 mm)

Focusing: Coarse and fine movement (coaxial, with 0.002 mm division)

Type of build: Monocular

Special Features:

Rechargeable battery operation: Yes

Filter holder: Yes

Dust cover bag: Yes

General:

Series: BioBlue

Suitable for: Beginners

Contrast methods: Polarization

Field of application:

Education: Yes

Area of application:

School: Yes

Veterinary medicine: Yes
