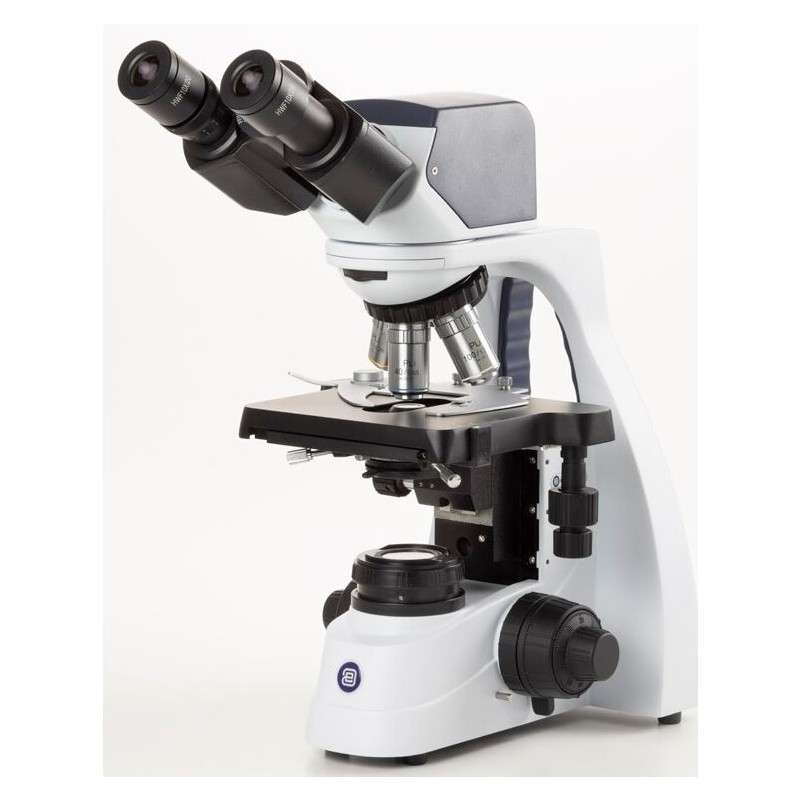

Euromex Microscope BS.1157-PLi, Bino, digital, 5.1 MP CMOS, colour, Plan IOS 40x - 1000x

The versatile bScope series of microscopes is widely utilized for research purposes across secondary schools, universities, small laboratories, and veterinary applications. These microscopes, known for their exceptional ergonomic design, offer robustness and affordability, making them a preferred choice in various settings. They come in different configurations, featuring HWF 10x/20 mm eyepieces and objectives tailored for both bright field and phase contrast applications.

SPECIFICATIONS

Optics

Magnification: 40 - 1000

Infinity corrected: No

Field curvature: Plan

Lighting

Transmitted light

Lamp type: LED

Eyepiece

EWF 10x / 20 mm

Number of objectives: 4

Objective 1: 4x / 0.10 (Plan)

Objective 2: 10x / 0.25 (Plan)

Objective 3: 40x / 0.65 (Plan)

Objective 4: 100x / 1.25 (Plan)

Additional Features

Immersion lens: Yes

Suspension: Yes

Colour correction: Achromatic

Condenser

Abbe N.A. 1.25 (Focus adjustable, with iris diaphragm)

Optical system: Infinity

Capacity

Brightfield: Yes

Phase contrast: No

Mechanics

Type of build: Binocular

Viewing posture (°): 45

Focusing: Coarse and fine movement (200 x 1µm)

Specimen stage

Cross table: 140 x 160mm (x/y 79 x 52mm)

Revolver: 5

Special features

Rechargeable battery operation: Yes

Camera

Size of chip (″): 1/2.5

Resolution Photograph (Pixel): 2592x1944

Megapixel: 2592x1944

Frame rate (fps): 7-27

Interface: USB-2

General

Series: bScope

Weight (g): 9000

Width (mm): 210

Length (mm): 255

Height (mm): 407

Area of application

Veterinary medicine: Yes

Miscellaneous

Supplier product number: BS.1152-EPLi
