Euromex NexiusZoom ESD, NZ.1902-B-ESD, double arm stand, 6,7x-45x, bino

Eyepieces: Pair of WF 10x/22 mm eyepieces, each with ± 5 diopter adjustments. Head: Available in binocular or trinocular options, with 45° inclined tubes and adjustable interpupillary distance ranging from 54 mm to 75 mm. Objective: Zoom 1:6.7 objective offering magnifications from 0.67x to 4.5x, providing a field of view ranging from 33 mm to 4.9 mm, with a working distance of 110 mm.

1690.77 $
Tax included

1374.61 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

NexiusZoom ESD Series

  • Eyepieces: Pair of WF 10x/22 mm eyepieces, each with ± 5 diopter adjustments.
  • Head: Available in binocular or trinocular options, with 45° inclined tubes and adjustable interpupillary distance ranging from 54 mm to 75 mm.
  • Objective: Zoom 1:6.7 objective offering magnifications from 0.67x to 4.5x, providing a field of view ranging from 33 mm to 4.9 mm, with a working distance of 110 mm.
  • Auxiliary: Additional 0.5x / 0.75x / 1.5x and 2.0x lenses are available.
  • Stands: Offered with ergonomically designed pillar or rack and pinion stand options featuring LED illumination and 2 object clamps. Also available are universal one-arm or double-arm stands without illumination, constructed from alloy metal cast and hardened off-white paint.
  • Focusing adjustment: Coarse adjustment.
  • Illumination: Equipped with 3 W transmitted and incident LEDs illuminators, operable simultaneously with separate adjustments for light intensity. All optical components are treated to resist fungus.

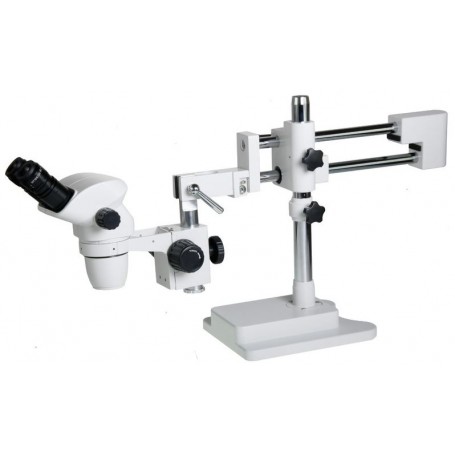

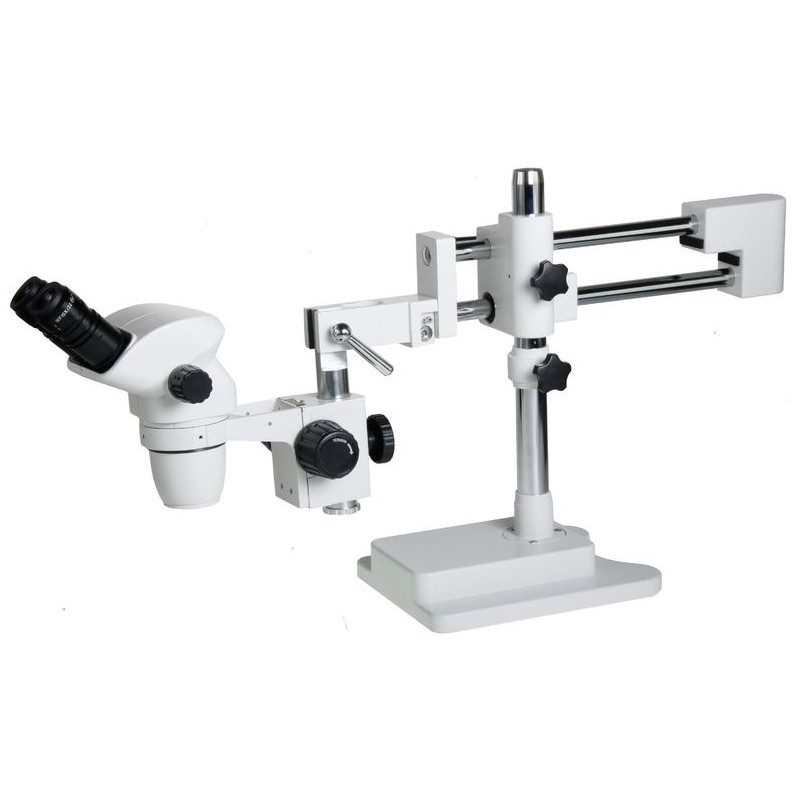

NexiusZoom Binocular Zoom Stereo Microscope NZ.1902-B

Features:

  • Binocular stereo head with a 0.67x to 4.5x stereo objective.
  • WF10x/22 eyepieces housed in 45° inclined tubus with diopter adjustment.
  • Offers a total standard magnification range from 6.67x to 45x.
  • Field of view spans from 33 mm to 4.9 mm.
  • Provides a working distance of 110 mm.
  • Metal universal double-arm stand without illumination.
  • Packaged in a styrofoam box.



Specifications:

Optics:

Eyepiece: 10 (WF 10/22).

Magnification: 0.67-45 (zoom lens).

Lamp type: Not applicable.

Lighting: Not applicable.

Optical system: Greenough.

Mechanics:

Type of build: Binocular.

Working distance (mm): 110.

Viewing posture (°): 45° oblique viewing.

Special features:

Dust cover bag: Yes.

General:

Width (mm): 219.

Length (mm): 266.

Series: Nexius ESD.

Field of application:

Industry: Yes.

Area of application:

Materials technology.

Mineralogy.

Metallurgy.

Mechanical engineering.

Construction materials industry.

Electronics.

Miscellaneous:

Supplier product number: NZ.1902-B-ESD.
