Evident Olympus Microscope CX43 Standard, trino, infinity, LED, w.o. objectives!
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Evident Olympus Microscope CX43 Standard, trino, infinity, LED, w.o. objectives!

The CX43 microscope is designed for long hours of routine microscopy, ensuring user comfort and enhanced work efficiency. Its ergonomic frame conforms to the user's hands, and strategically positioned control knobs maximize ease of use. With minimal hand movement, users can swiftly set specimens with one hand while adjusting focus and operating the stage with the other.

4088.14 $
Tax included

3323.69 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

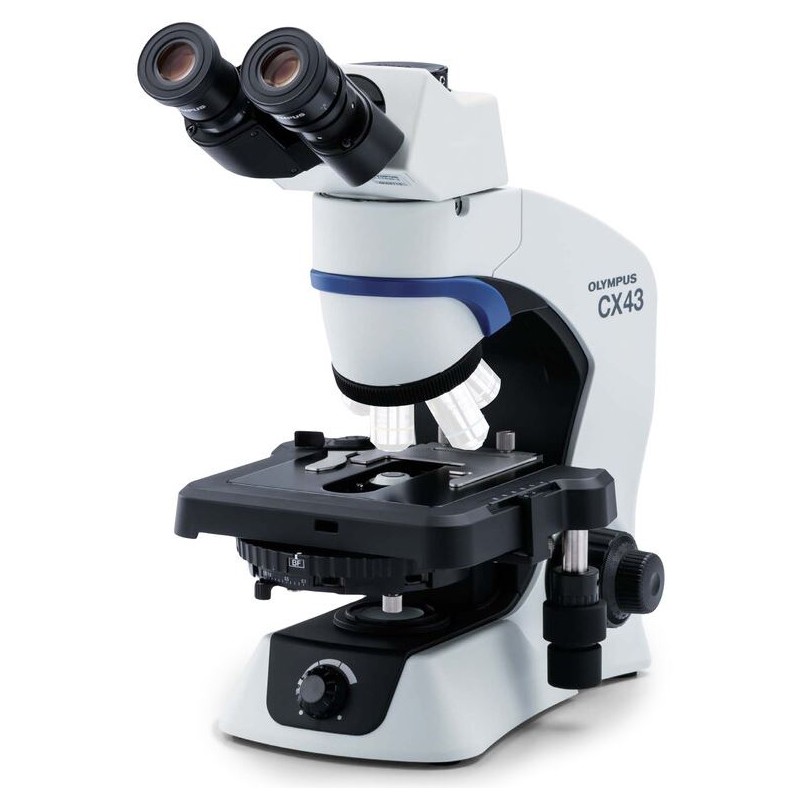

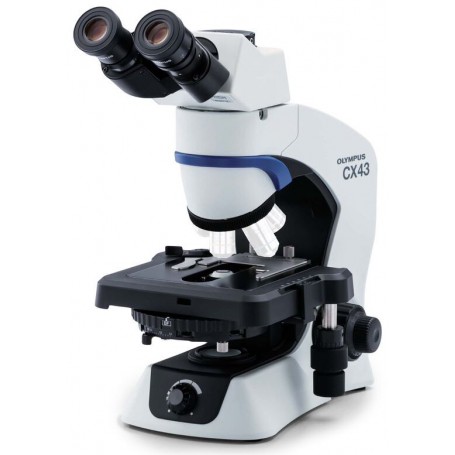

Olympus CX43 Trinocular Microscope (E07MIS0053)

Efficient and Comfortable Routine Microscopy

The CX43 microscope is designed for long hours of routine microscopy, ensuring user comfort and enhanced work efficiency. Its ergonomic frame conforms to the user's hands, and strategically positioned control knobs maximize ease of use. With minimal hand movement, users can swiftly set specimens with one hand while adjusting focus and operating the stage with the other. Additionally, it offers an optional camera port for digital imaging.

Features:

  • Upright microscope suitable for transmitted and reflected light observations with a trinocular tube
  • Integrated LED illumination
  • Low-positioned quintuple nosepiece
  • Mechanical stage (211 x 154 mm, travel range 76 x 52 mm) with right handle, low drive control, stage lock pin, and specimen holder for one slide
  • Abbe condenser, NA 1.25
  • 7-position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter
  • Coaxial/fine focus with complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm
  • Trinocular tube with two widefield eyepieces for FN20



Included Components:

  • Trinocular tube U-CTR30-2-2 (N1468300)
  • WHB10X-H Eyepiece 10x/20 dioptric compensation (N1130000)
  • WHB10X-2 Eyepiece 10x/20 (N1129900)
  • CX43RF tripod incl. rotating condenser (N5731700)
  • UYCP cable (035425)
  • Dust cover (038159)

Note: Objectives are not included; please select from the available accessories.



SPECIFICATIONS

Optics

Number of objectives: 0

Lighting

Transmitted light

Condenser

Abbe

Lamp type: LED

Infinity corrected: Yes

Optical system: Infinity

Eyepiece: 10x/20

Capacity

Brightfield: Yes

Phase contrast: Yes

Dark field: Yes

Mechanics

Type of build: Trinocular

Focusing

Coarse and fine movement

Specimen stage

Cross table (211 x 154 mm)

Revolver: 5

Special features

Luminous field diaphragm: Yes

Wide-angle eyepiece: Yes (10x/22)

General

Width (mm): 211

Length (mm): 397

Height (mm): 393

Series: CX43

Weight (g): 7.3

Field of application

Medicine: Yes

Area of application

Biology, zoology & botany

Pathology and histopathology

Naturalist

Internal medicine

Dermatology

Miscellaneous

Supplier product number: E0460053 (E07MIS0053)

Data sheet

WOU3NRTHXJ
