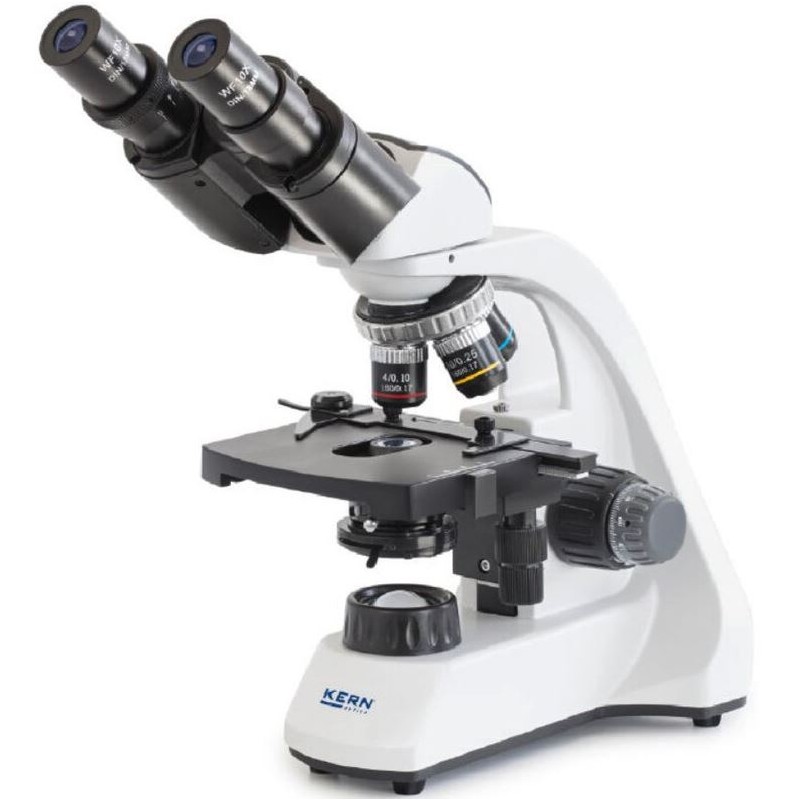

Kern Microscope Bino Achromat 4/10/40/100, WF10x18, 1W LED, OBT 106

The KERN OBT series presents a top-tier school microscope, featuring intuitive controls, robust construction, and a sleek modern design. Its 1W LED, adjustable for optimal brightness, ensures superior sample illumination and longevity. With optional battery operation, it offers mobility without compromise.

Equipped with a height-adjustable condenser and aperture diaphragm, this model facilitates precise focusing and concentrated lighting. Dual coarse and fine focusing knobs enhance accuracy. Its mechanical stage enables swift sample manipulation, ideal for educational settings.

A diverse range of eyepieces and objectives are available to suit various needs. Included with each unit are a dust cover and comprehensive user instructions.

Application Scope: Suitable for primary and secondary schools, training purposes, and hobbyists. Ideal for translucent, thin, high-contrast, less complex samples such as plant tissues and colored cells/parasites.

SPECIFICATIONS

Optics

Eyepiece: 10x/18 (Widefield)

Optical System: DIN (160mm)

Lens Type: Achromatic

Magnification: 40-1000 (40, 100, 200, 400, 1000)

Condenser: N.A. 0.65

Lamp Type: LED

Power Supply: EU standard

Objectives:

14×/0.10 W.D. 27.0 mm

10×/0.25 W.D. 7.0 mm

40×/0.65 (spring-loaded) W.D. 0.6 mm

Capacity

Brightness Control: Yes

Brightfield: Yes

Mechanics

Build Type: Binocular

Viewing Posture (°): 30

Focusing: Coarse and fine movement

Specimen Stage: Cross table

Special Features

Rechargeable Battery Operation: Yes

Dust Cover Bag: Yes

Filter Holder: Yes

General

Weight (g): 2755

Width (mm): 195

Length (mm): 147

Height (mm): 325

Series: OBT

Suitable for

Beginners: Yes

Field of Application

Education: Yes

Area of Application: School, Secondary school

Miscellaneous

Supplier Product Number: OBT 106
